| Additional Information | : | HNBR O-Ring, 2100 psi Minimum Burst Pressure |
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | SAE Flared |
| Connection Type 2 | : | SAE Flared |
| Connection Type | : | SAE Flared|SAE Flared |
| Fitting Type | : | Adapter |
| For Use With | : | 32, 125, 134a, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze and HYCOOL 20 Refrigerants |
| Material | : | Copper |
| Pressure Rating | : | 700 psi |
| Temperature Rating | : | -40 to 250 deg F |

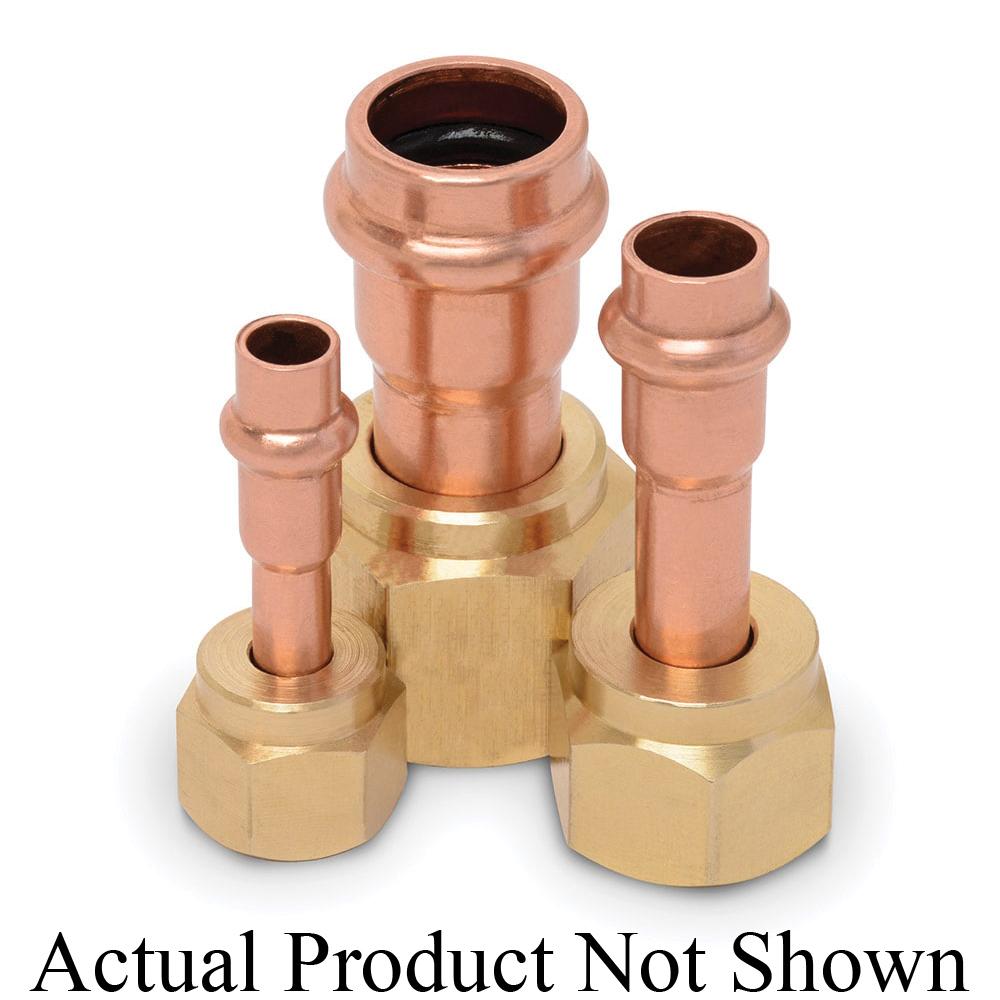

Parker ZoomLock® MAX refrigerant press fittings allow the contractor to successfully make leak-free connections with a press fitting system without the use of a brazing torch. ZoomLock® MAX refrigerant press fittings reduce installation costs, is more repeatable than brazing, improves system cleanliness and creates secure leak-free copper tube connections. ZoomLock® MAX refrigerant press fittings have a 15 year warranty and no crimp gauge needed to provide a safe secure connection.
ZoomLock® Adapter, Connection Size 1: 3/4 in, Connection Type 1: SAE Flared, Connection Size 2: 3/4 in, Connection Type 2: SAE Flared, SAE Flared|SAE Flared Connection, Copper, For Use With 32, 125, 134a, 290, 404A, 407A, 407C, 407F, 407H, 410A, 417A, 421A, 422B, 422D, 427A, 438A, 444A, 447A, 447B, 448A, 449A, 450A, 452A, 452B, 452C, 454A, 454B, 454C, 457A, 459A, 507A, 513B, 600A, 718, 1234yf, 1234ze and HYCOOL 20 Refrigerants, 700 psi Pressure, -40 to 250 deg F, HNBR O-Ring, 2100 psi Minimum Burst Pressure
- Less equipment and no gas needed
- Safer conditions, no fire hazards
- No hot work permits required
- More environmentally friendly
- No solder related quality issues
- More flexible access to job sites
- No need to nitrogen purge
