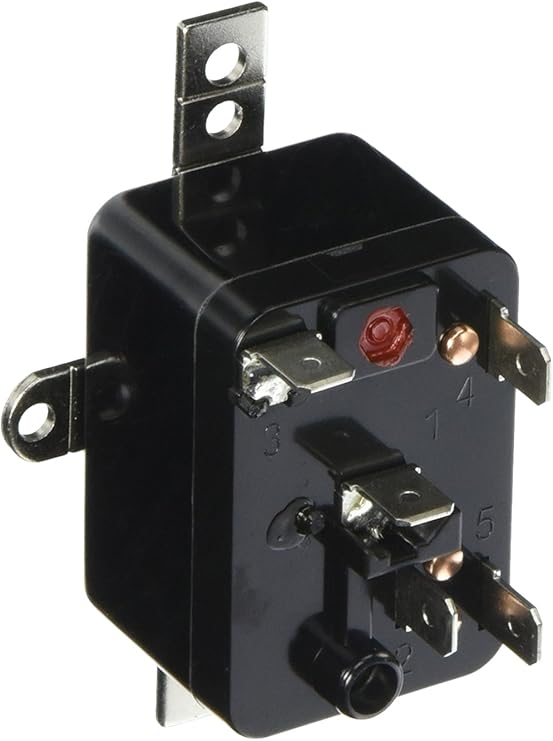

White Rodgers Type 84 90-293Q Fan Relay, SPDT Contact Form, 8 A (Inductive Continuous); 16 A (Resistive Continuous), 24 VAC, 125/250 VAC, 1/4" Quick Connect Terminal, Surface Mount, 1-1/2" Overall Height

Additional Information	:	-40 to 150 deg F Temperature Rating, 125/250 VAC Contact Rating, 50/60 Hz Frequency Rating, 90 Ohm Resistance
Amperage Rating	:	8 A (Inductive Continuous); 16 A (Resistive Continuous)
Coil Voltage	:	24 VAC
Contact Form	:	SPDT
Mounting Type	:	Surface Mount
Overall Depth	:	1-4/5 "
Overall Height	:	1-1/2 "
Overall Width	:	1-5/8 "
Series	:	Type 84
Suitable For Use With	:	Switching Single or Two Speed Fan Motors, Solenoids, Relays, Resistive Loads, General Purpose Switching; Heating and Cooling Applications
Terminal Type	:	1/4" Quick Connect
Voltage Rating	:	125/250 VAC

White Rodgers Fan Relay, Model: Type 84, SPDT Contact Form, 8 A (Inductive Continuous); 16 A (Resistive Continuous), 24 VAC, 125/250 VAC, 1/4" Quick Connect Terminal, Surface Mount, 1-1/2" Overall Height, 1-5/8" Overall Width, 1-4/5" Overall Depth

Compact, totally enclosed design ensures quiet operation and protection.Versatile SPDT contacts switch single/two-speed fan motors, solenoids, relays, and resistive loads.Suitable for various heating, cooling, and general purpose switching applications.Features convenient 1/4" quick-connect terminals for easy wiring.Operates with a standard 24 VAC coil (50/60 Hz).UL recognized and CSA certified for safety assurance.Backed by a 1-year manufacturer warranty.
