| Additional Information | : | Universal, -40 to 176 deg F Temperature Rating, 5 to 95% Relative Humidity |
| Amperage Rating | : | 800 mA |
| Pre Purge Time | : | 45 s |
| Voltage Rating | : | 18-30 V, 24/120/240 V |

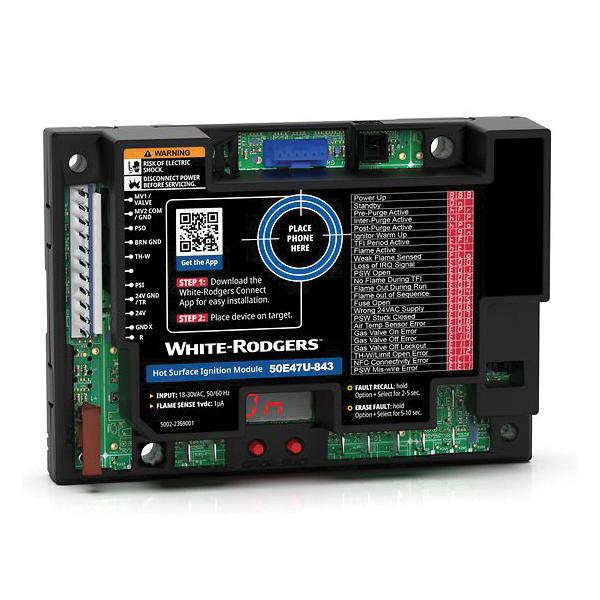

Universal hot surface ignition module. Designed to replace 24V, 120V or 240V non-integrated Hot Surface Ignition (HSI) modules in a wide variety of heating applications.
WHITE-RODGERS™ Hot Surface Ignition, 18-30 V, 24/120/240 V, 800 mA, Pre Purge Time: 45 s, Additional Information: Universal, -40 to 176 deg F Temperature Rating, 5 to 95% Relative Humidity
- Compatible with 24V, 120V and 240V ignitors
- Universal replacement for Fenwal, Honeywell, UTEC, ICM, White-Rodgers, and Robertshaw
- Energizes an inducer motor and monitors a pressure switch
- Use with the White-Rodgers Connect app to simplify configuration without power, prior to install
- See operation status, diagnostics and real time flame current with the on-board digital display which also provides alternate configuration
- Easy-install harness converts old board wiring
- Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters
