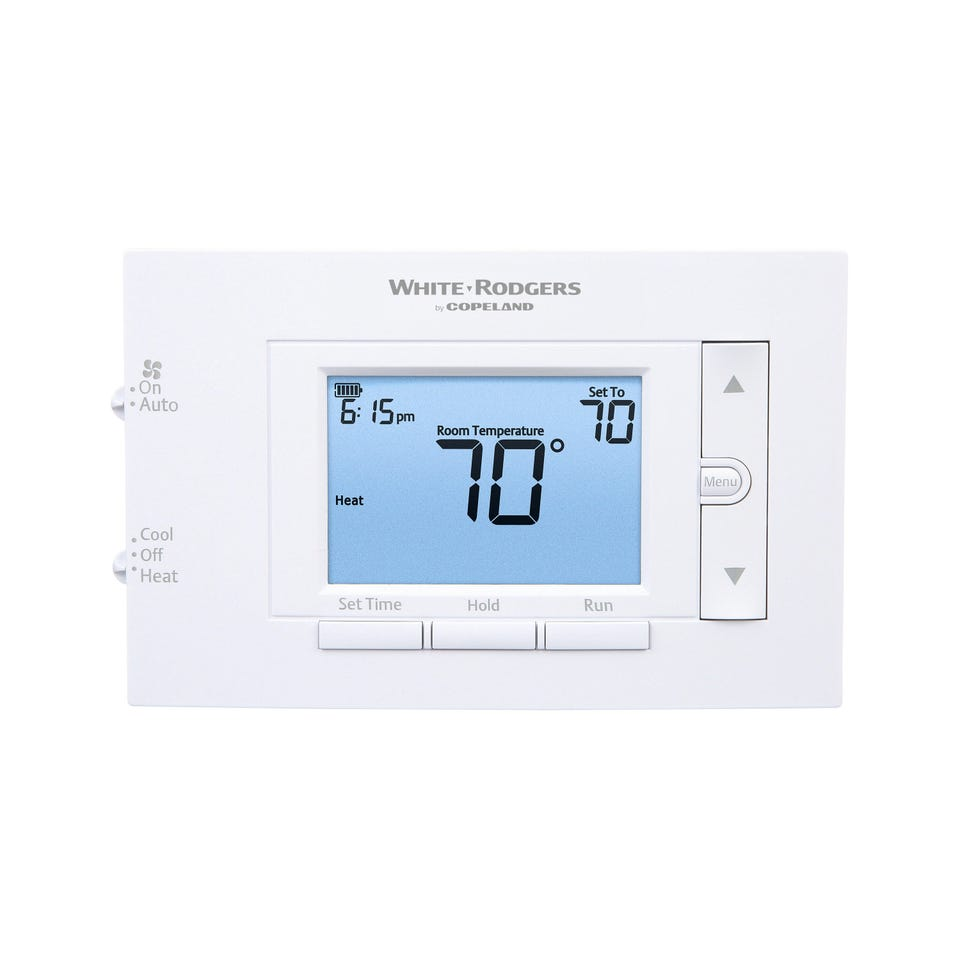

White Rodgers 80 Series 1F83C-11PR Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C, Manual, Horizontal, Wired / Lead Wires, Battery, 20-30 VAC (Hardwire), mV-30 VAC (Battery), Dual Powered

Accuracy	:	± 1 °F
Amperage Rating	:	1.0 A (Per Terminal), 1.5 A (Maximum, All Terminals)
Battery Size	:	AA
Battery Type	:	AA Alkaline
Changeover	:	Manual
Color	:	White
Connection Type	:	Wired / Lead Wires, Battery
Contact Rating	:	1.0 A (20-30 VAC)
Control Range	:	45 °F-99 °F
Cool Current	:	1.0 A (Per Terminal)
Dehumidification	:	No
Differential Temperature	:	0.5 °F (Heat, Conventional Gas/Oil/Elect, Fast), 0.75 °F (Heat, Conventional Gas/Oil/Elect, Med), 1.9 °F (Heat, Conventional Gas/Oil/Elect, Slow); 0.9 °F (Cool, Central Air, Fast), 1.2 °F (Cool, Central Air, Med), 1.7 °F (Cool, Central Air, Slow); 0.9 °F (Heat Pump, Heat and Cool, Fast), 1.2 °F (Heat Pump, Heat and Cool, Med), 1.7 °F (Heat Pump, Heat and Cool, Slow)
Dimensions	:	3-3/4" H x 6" W x 1-1/8" D
Display Type	:	LCD
Fan Current	:	1.0 A (Per Terminal)
Frequency Rating	:	50 Hz, 60 Hz
Heat Current	:	1.0 A (Per Terminal)
Humidity Rating	:	90% (Non-Condensing)
Material	:	Plastic (Housing)
Model	:	1F83C-11PR
Mounting Type	:	Horizontal
Power Source	:	Dual Powered
Programmability	:	7 Day, 5-1-1 Day, 5-2 Day or Non-Programmable
Series	:	80 Series
Stages	:	1 H / 1 C
Temperature Rating	:	32-105 °F
Temperature Settings	:	45°F - 99°F
Terminal Designation	:	RC, RH, C, W, Y, O/B, G
Termination	:	Terminal Block
Voltage Rating	:	20-30 VAC (Hardwire), mV-30 VAC (Battery)

White Rodgers Programmable Thermostat, Model: 80 Series, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C, Manual, Horizontal, Wired / Lead Wires, Battery, 20-30 VAC (Hardwire), mV-30 VAC (Battery), Dual Powered, LCD, 45°F - 99°F, Terminal Block, RC, RH, C, W, Y, O/B, G Terminal Designation, 32-105 °F, ± 1 °F, 0.5 °F (Heat, Conventional Gas/Oil/Elect, Fast), 0.75 °F (Heat, Conventional Gas/Oil/Elect, Med), 1.9 °F (Heat, Conventional Gas/Oil/Elect, Slow); 0.9 °F (Cool, Central Air, Fast), 1.2 °F (Cool, Central Air, Med), 1.7 °F (Cool, Central Air, Slow); 0.9 °F (Heat Pump, Heat And Cool, Fast), 1.2 °F (Heat Pump, Heat And Cool, Med), 1.7 °F (Heat Pump, Heat And Cool, Slow), ≤90% (Non-Condensing), No Dehumidification, White, 3-3/4" H x 6" W x 1-1/8" D Dimensions, Plastic (Housing), AA Alkaline Battery, 1.0 A (20-30 VAC), 1.0 A (Per Terminal), 1.5 A (Maximum, All Terminals), 50 Hz, 60 Hz, System (Heat/Off/Cool), Fan (Auto/On)

Designed for single-stage (1H/1C) conventional and heat pump (no auxiliary heat) systems.Offers flexible programming options: 7-Day, 5+1+1 Day, or can be set as non-programmable.Features a large, backlit digital LCD display for clear visibility.Dual powered capability allows operation via battery or hardwired 20-30 VAC connection.Includes keypad lockout and adjustable setpoint temperature limits for secure operation.Provides adjustable filter change reminders to aid system maintenance.Backed by a 5-year limited warranty for professional installers.
