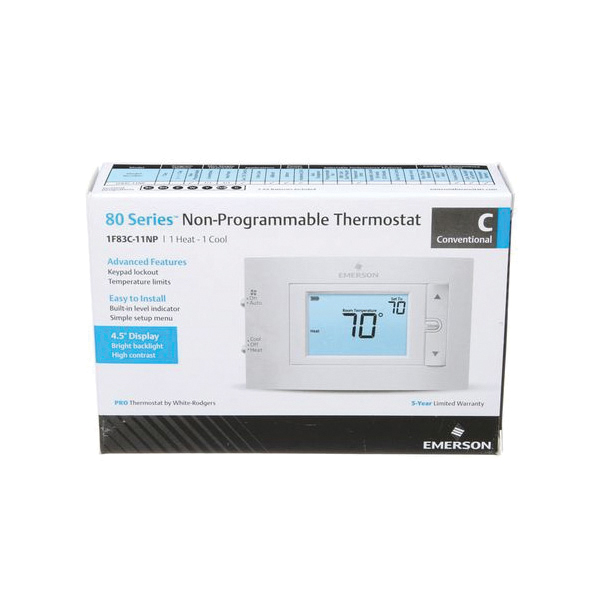

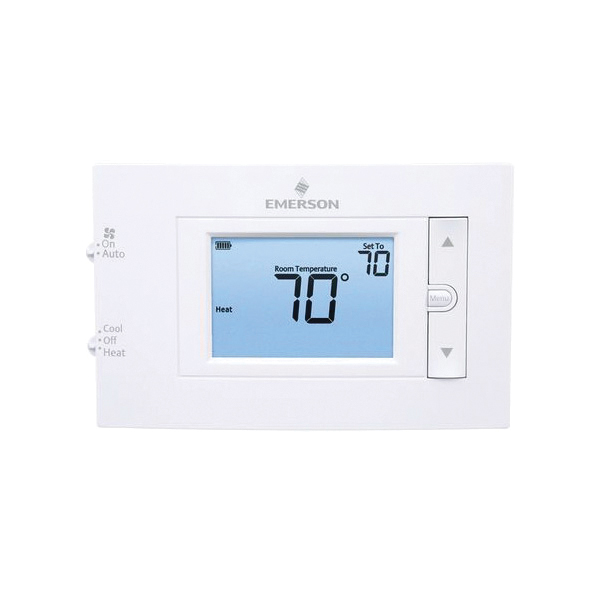

WHITE-RODGERS™ 80 Series 1F83C-11NP-B17754 Thermostat, 20 to 30 VAC, 1 to 1.5 A, 1 Heat, 1 Cool

Amperage Rating	:	1 to 1.5 A
Changeover	:	No
Differential Temperature	:	0.5 deg F Fast, 0.75 deg F Medium, 1.9 deg F Slow
Dimensions	:	3-3/4 in H x 6 in W x 1-1/8 in D
Display Type	:	4.5 sq-in Backlit
Frequency Rating	:	50/60 Hz
Humidity Rating	:	90% Non-Condensing
Power Source	:	Battery, Hardwire
Series	:	80 Series
Stages	:	1 Heat, 1 Cool
Temperature Rating	:	32 to 105 deg F
Temperature Settings	:	45 to 99 deg F
Voltage Rating	:	20 to 30 VAC

WHITE-RODGERS™ Thermostat, 80 Series, 20 to 30 VAC, 1 to 1.5 A, 50/60 Hz Frequency, Changeover: No, 1 Heat, 1 Cool Stages, 4.5 sq-in Backlit Display, 0.5 deg F Fast, 0.75 deg F Medium, 1.9 deg F Slow Differential, 45 to 99 deg F Settings, 32 to 105 deg F, 90% Non-Condensing Humidity, Battery, Hardwire Power Source, Dimensions: 3-3/4 in H x 6 in W x 1-1/8 in D

Attractive Sensi thermostat styling for non-Wi-Fi applicationsBright, high contrast backlightAutomatic heat/cool changeover optionKeypad lockout and adjustable heat/cool temperature limitsBuilt-in dual fuel logic program eliminates the need for an outdoor sensor
