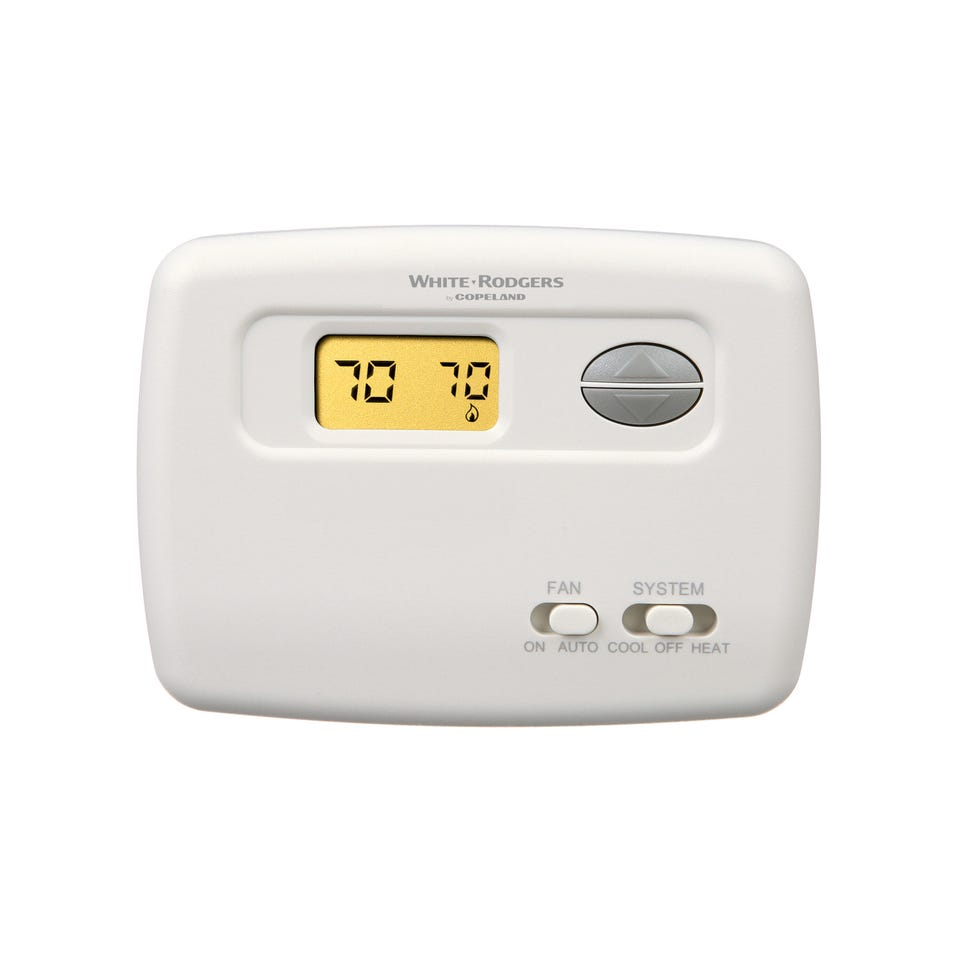

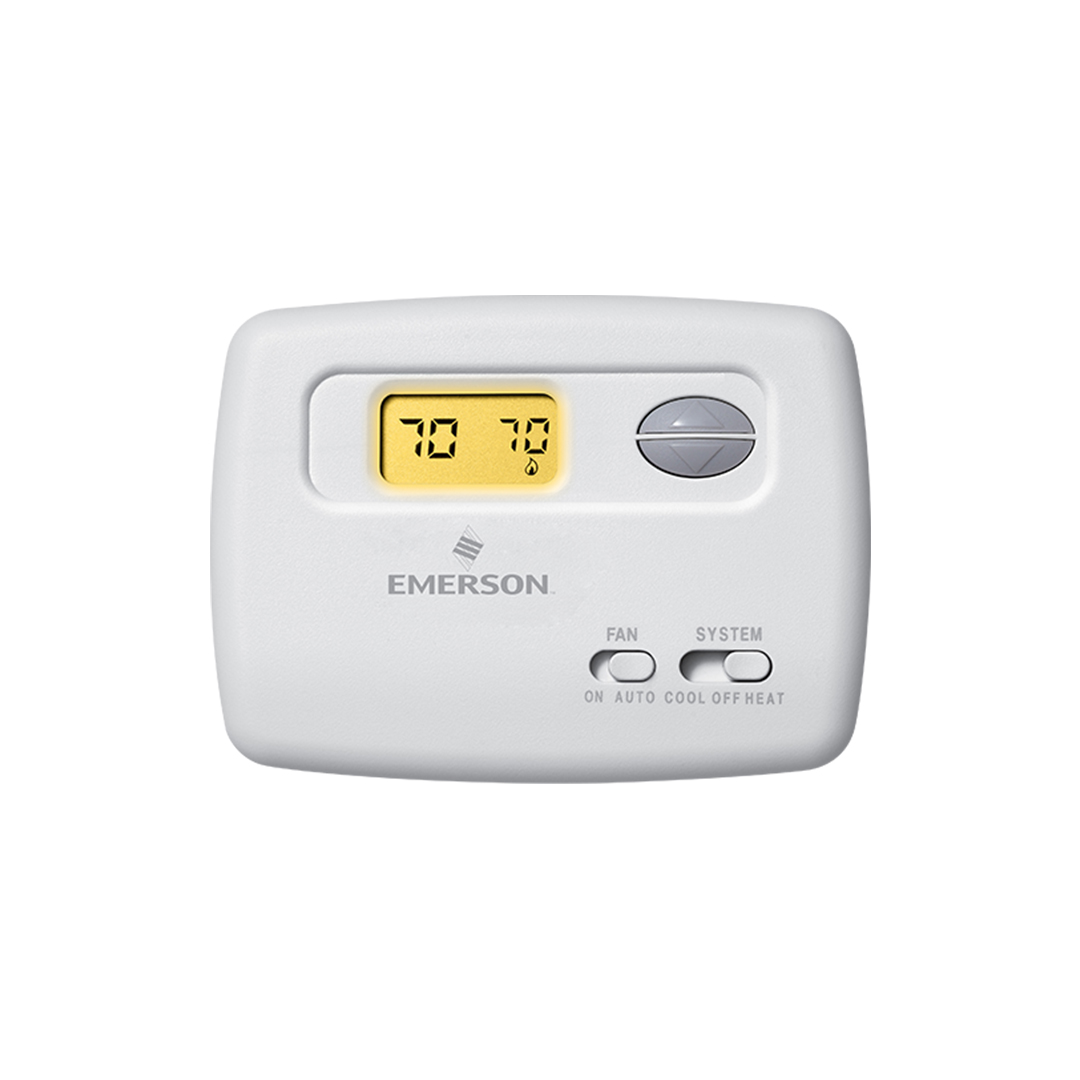

WHITE-RODGERS™ 70 Series 1F78-144 Thermostat, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W, (2) AAA Battery, 1 Heat/1 Cool
WHITE-RODGERS™ 70 Series 1F78-144 Thermostat, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W, (2) AAA Battery, 1 Heat/1 Cool
Manufacturer: Copeland LP
Brand: WHITE-RODGERS™
Part #: 382474
MPN: 1F78-144
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Accuracy | : | +/-1 deg C |
| Amperage Rating | : | 1 to 1.5 A |
| Battery Type | : | (2) AAA |
| Changeover | : | Manual |
| Color | : | White |
| Differential Temperature | : | 0.8 deg F Fast, 1.5 deg F Slow Heating, 1.2 deg F Fast Cooling Fixed, 1.2 deg F Fast, 1.5 deg F Slow Heating Pump, 0.8 deg F Fast, 1.2 deg F Slow Auxiliary/Emergency Heating |
| Dimensions | : | 3-13/16 in H x 5-1/8 in W x 1-1/8 in D |
| Display Type | : | 1.2 sq-in |
| Frequency Rating | : | 50/60 Hz |
| Humidity Rating | : | 90% Non-Condensing |
| Mounting Type | : | Horizontal |
| Power Rating | : | 1.5 to 45 W |
| Power Source | : | Battery |
| Series | : | 70 Series |
| Stages | : | 1 Heat/1 Cool |
| Switch Position | : | HEAT-OFF-COOL (System), AUTO-ON (Fan) |
| Temperature Rating | : | 32 to 105 deg F Ambient |
| Temperature Settings | : | 45 to 90 deg F |
| Voltage Rating | : | mV to 30 VAC |
WHITE-RODGERS™ Thermostat, 70 Series, mV to 30 VAC, 1 to 1.5 A, 1.5 to 45 W Power, 50/60 Hz Frequency, Changeover: Manual, 1 Heat/1 Cool Stages, Switch Position: HEAT-OFF-COOL (System), AUTO-ON (Fan), 1.2 sq-in Display, 0.8 deg F Fast, 1.5 deg F Slow Heating, 1.2 deg F Fast Cooling Fixed, 1.2 deg F Fast, 1.5 deg F Slow Heating Pump, 0.8 deg F Fast, 1.2 deg F Slow Auxiliary/Emergency Heating Differential, 45 to 90 deg F Settings, 32 to 105 deg F Ambient, 90% Non-Condensing Humidity, (2) AAA Battery, +/-1 deg C Accuracy, Battery Power Source, Horizontal Mounting, Dimensions: 3-13/16 in H x 5-1/8 in W x 1-1/8 in D, White
- Fossil fuel or electric compatible
- Large LCD with backlight
- Selectable celsius or fahrenheit temperature display
- Electronic accuracy
- Covers wall marks left by most mechanical thermostats the need for an extra wall plate
- Permanent memory back-up
- 32 - 99 deg F display range
