| Configuration | : | NC |
| Connection Type | : | SAE |
| Dimensions | : | 3.47 in L x 2.83 in H |
| Nominal Size | : | 3/8 in |
| Number of Ports/Ways | : | 2-Way |
| Pressure Rating | : | 500 psi Working, 300 psi Differential |
| Seal Material | : | PTFE |
| Temperature Rating | : | 250 deg F Fluid |
Emerson Climate Technologies refrigeration solenoid valves have the lowest external leakage rates in the industry are less susceptible to scoring, don't hold residual magnetism, and provide trouble-free operation due to their fail-safe design.

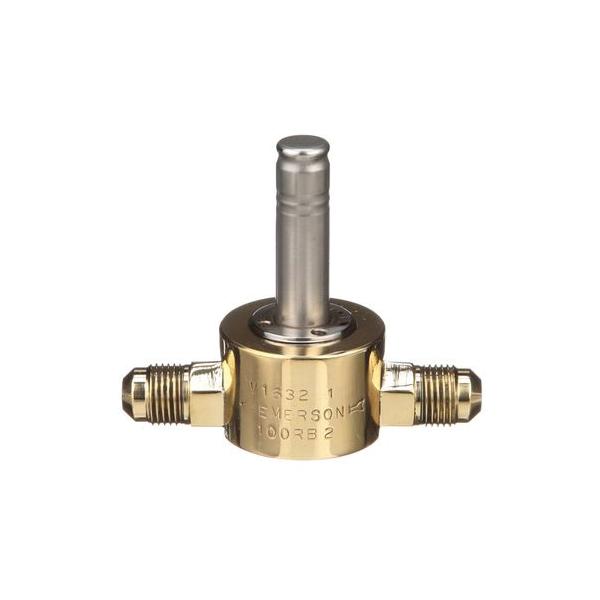

WHITE-RODGERS™ Solenoid Valve, 3/8 in Nominal, SAE Connection, NC, 500 psi Working, 300 psi Differential, Number of Ports/Ways: 2-Way, PTFE Seal, 250 deg F Fluid, 3.47 in L x 2.83 in H
- Less coil
- One-coil fits all valve sizes
- Extended ends for easy installation (standard)
- Long-life molded coils
- PTFE O-ring for superior external sealing
- 1.27 (R-22) nominal capacity
