| ANSI Type | : | ANSI A14.5 |
| Base Width | : | 19 in |
| Color | : | Orange |
| Dimensions | : | 144 in L x 19 in W x 6.31 in H |
| Flange Size | : | 1.19 in |
| Fly Width | : | 16 in |
| Load Capacity | : | 300 lb |
| Material | : | Fiberglass |
| Maximum Working Length | : | 21 ft |
| Rail Size | : | 3.31 in |
| Rail Type | : | Interlocking Side |
| Rung Size | : | 1-5/8 in |
| Series | : | D6200-2 Series |

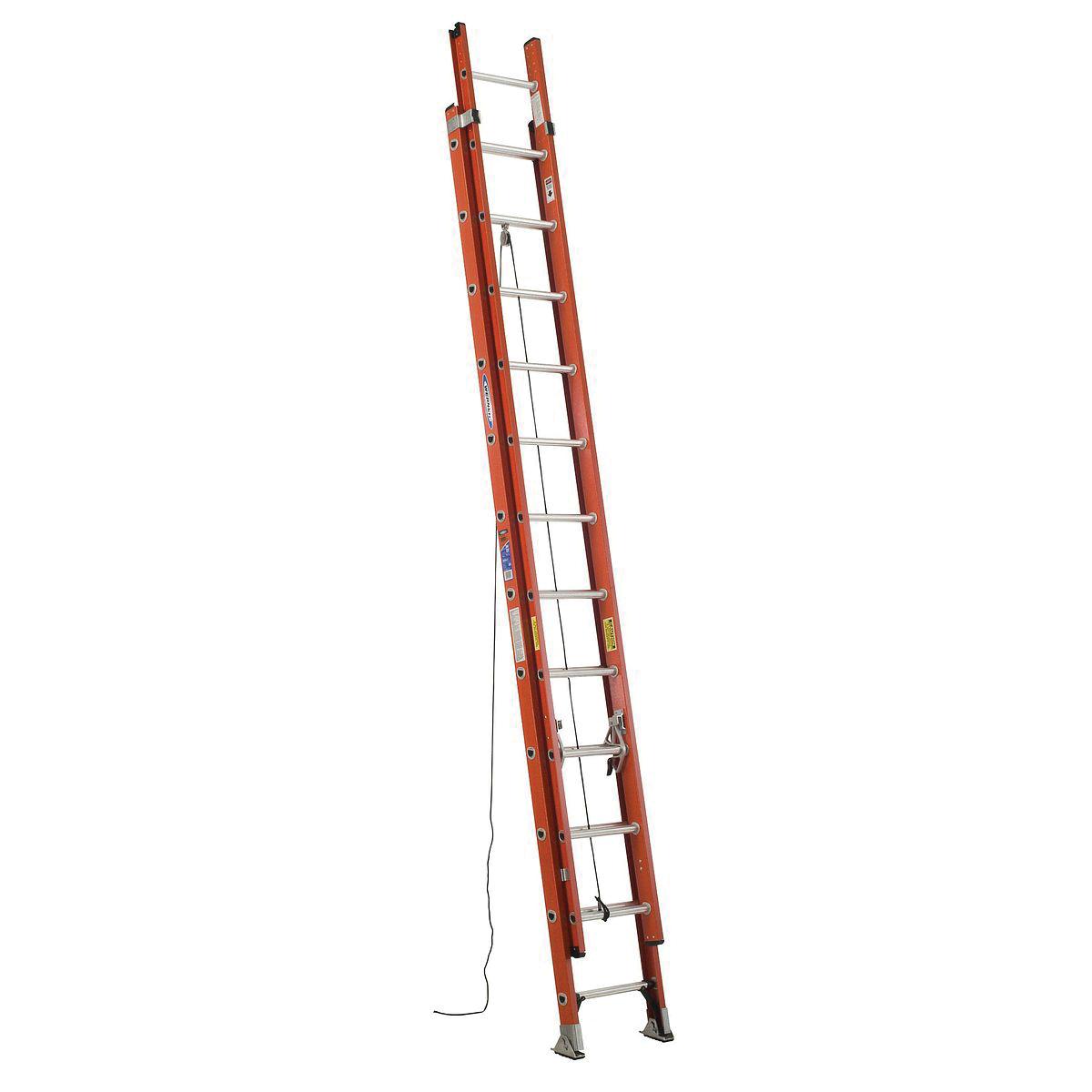

The D6224-2 fiberglass two section 24 ft extension ladder has non-conductive rails making this ladder ideal for working near electricity. With a duty rating of 300 lb, the ladder is durable and long lasting. The exclusive Alflo® rung joint means Twist-Proof® performance on the job. The Traction-Tred® D-rungs are slip-resistant and the side rails are interlocking. The dual action feet are for use on hard or penetrable surfaces and swivel easily. The base and fly sections separate easily to use the base section as a single ladder. The durable rail shield bracket and shoe help protect the bottom of the rail. The fly section rails are pre-pierced at the top for easy field installation of accessories.
WERNER® D-Rung Extension Ladder, D6200-2 Series, 300 lb Load, ANSI A14.5 ANSI, 21 ft Maximum Working Length, 19 in Base Width, Interlocking Side Rail, 1.19 in Flange, 16 in Fly Width, 1-5/8 in Rung, 3.31 in Rail, Fiberglass, Orange, 144 in L x 19 in W x 6.31 in H

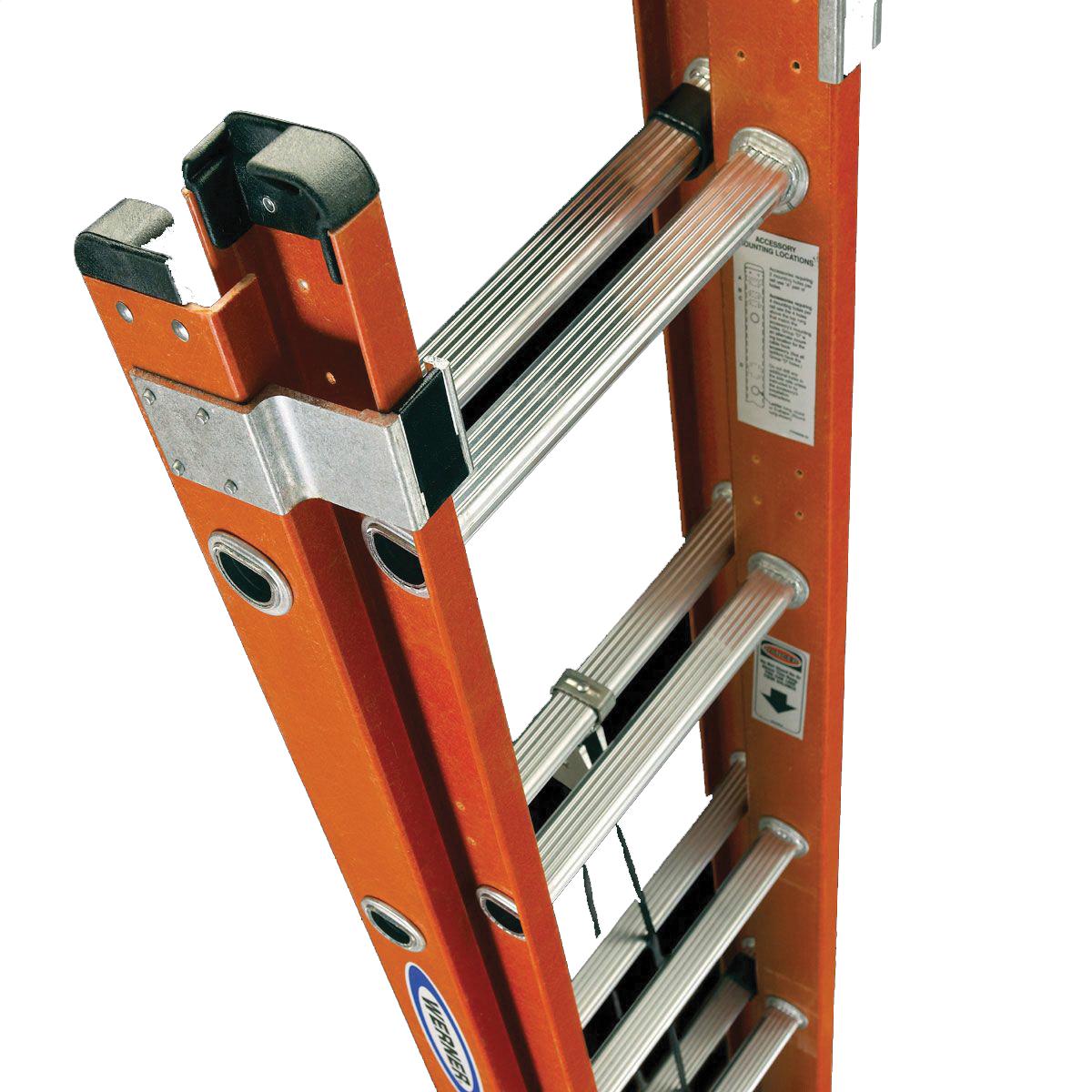

- Exclusive Alflo® rung joint means Twist-Proof® performance
- 1.63 in slip-resistant Traction-Tred® D-rungs
- Smooth operating pulley with polypropylene rope
- Interlocking side rails with internal rail guides on bottom of fly section securely connect rails
- External guides at top of base section securely interlock rails
- Heavy-duty extruded rung locks are spring loaded to operate smoothly
- Pre-pierced holes for easy field installation of accessories
- Base and fly separate easily to use base section as single ladder

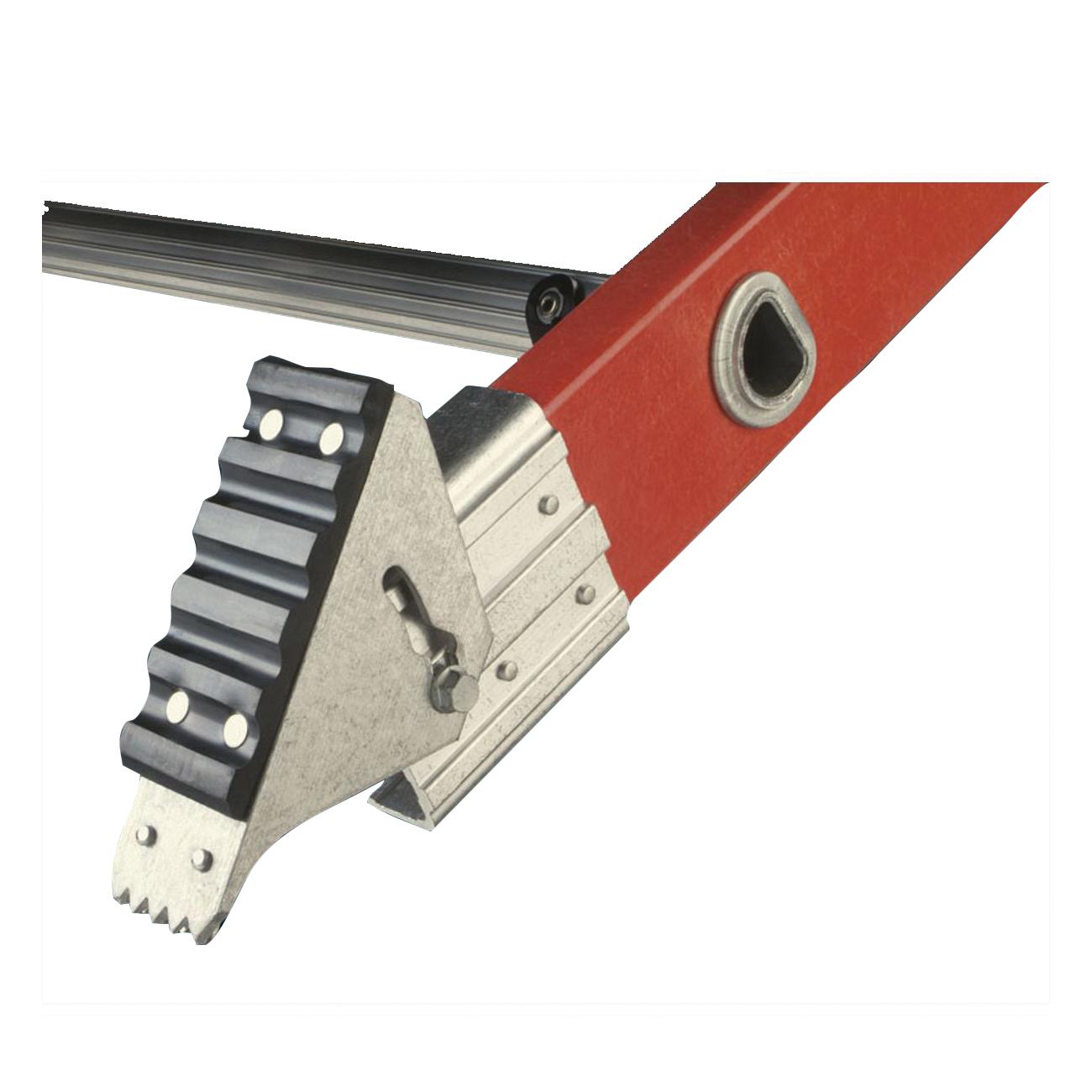

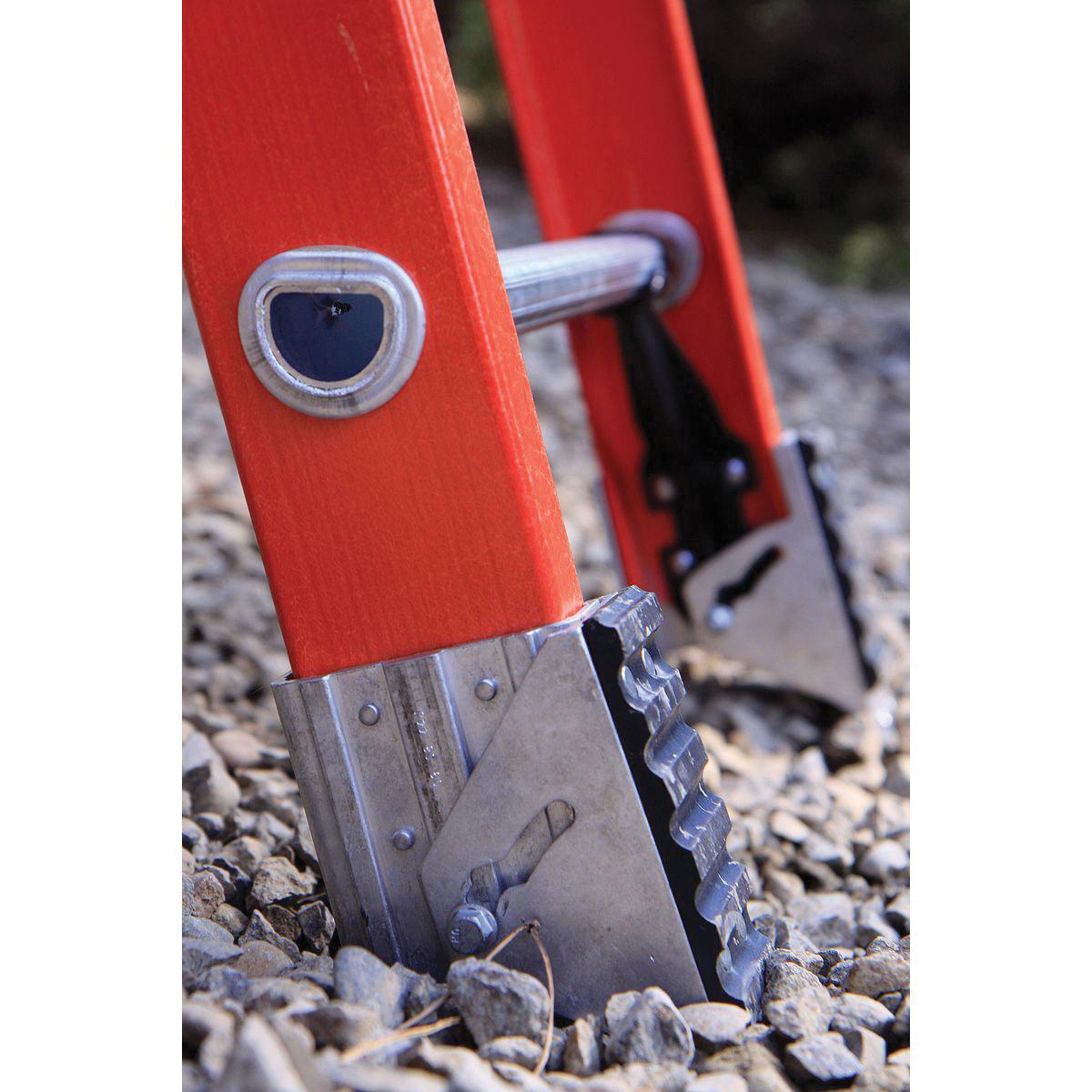

- Combination rail shield bracket and shoe with SHU-LOK® and slip-resistant pad
- Molded rung braces on bottom step for increased durability
- Mar-resistant molded end caps
