Linesets, Inc Mini Split Line Sets 41020500M144L Mini Split Line Set, 5/8" Suction Line Size, 1/4" Liquid Line Size, 50' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized)
Linesets, Inc Mini Split Line Sets 41020500M144L Mini Split Line Set, 5/8" Suction Line Size, 1/4" Liquid Line Size, 50' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized)
Manufacturer: WB
Brand: WB
Part #: 382981
MPN: 41020500M144L
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Color | : | Black |
| Connection Type | : | Cable, Flare |
| Domestic/Import | : | Domestic |
| Flared | : | No |
| Insulation Material | : | Elastomeric |
| Insulation Thickness | : | 1 " |
| Length | : | 50 ' |
| Liquid Line Size | : | 1/4 " |
| Material Standard | : | ASTM B1003, UL 700 PSI |
| Material | : | C12200 Copper (Tube), NBR/PVC (Insulation) |
| Model | : | 41020500M144L |
| Pressure Rating | : | 700 PSI (UL Recognized) |
| Series | : | Mini Split Line Sets |
| Suction Line Size | : | 5/8 " |
| Wall Thickness | : | 1 in |
Linesets, Inc Mini Split Line Set, Model: Mini Split Line Sets, 5/8" Suction Line Size, 1/4" Liquid Line Size, 50' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized), Black, Domestic

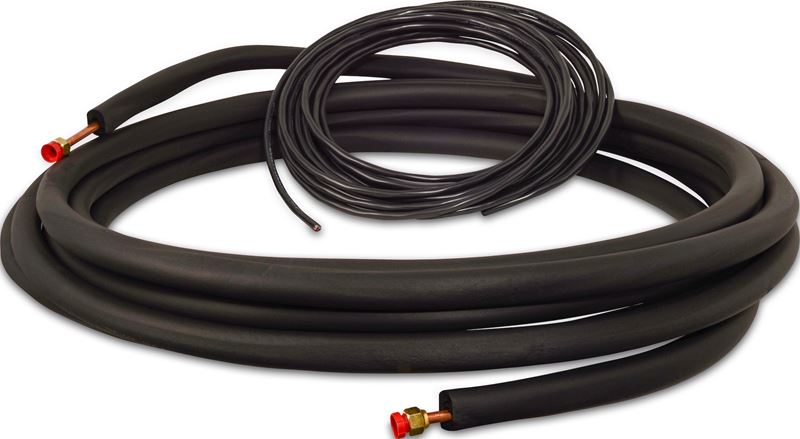

Features 50 feet of 1/4" liquid line and 5/8" suction line copper tubing.Includes a 14-gauge, 4-conductor wire for electrical connections.Both lines are insulated with 1" thick black elastomeric (NBR/PVC) material.Constructed from C12200 copper tube meeting ASTM B1003 standards.UL Recognized with a maximum pressure rating of 700 PSI.Designed primarily for mini-split air conditioning and refrigeration systems.
