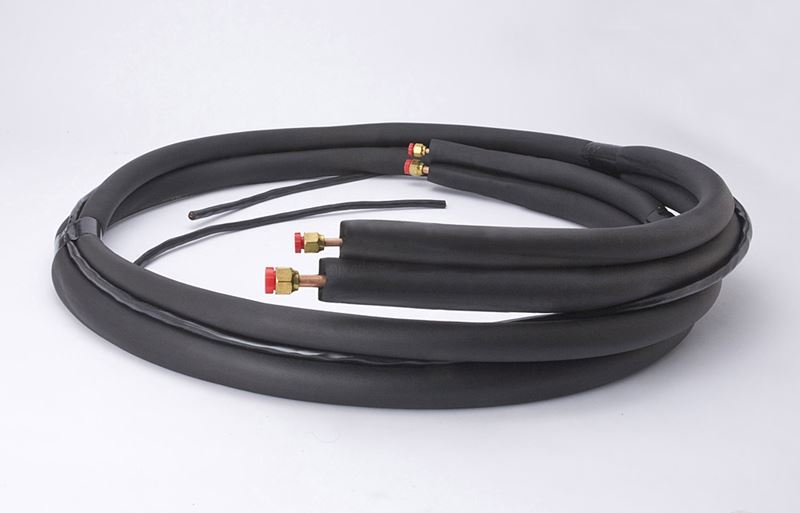

Linesets, Inc 41020150M144 Mini Split Line Set, 5/8" Suction Line Size, 1/4" Liquid Line Size, 15' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized)
Linesets, Inc 41020150M144 Mini Split Line Set, 5/8" Suction Line Size, 1/4" Liquid Line Size, 15' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized)
Manufacturer: WB
Brand: WB
Part #: 382979
MPN: 41020150M144L
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Color | : | Black |
| Connection Type | : | Cable, Flare |
| Domestic/Import | : | Domestic |
| Flared | : | Yes |
| Insulation Material | : | Elastomeric |
| Insulation Thickness | : | 1 " |
| Length | : | 15 ' |
| Liquid Line Size | : | 1/4 " |
| Material Standard | : | ASTM B1003, UL 700 PSI |
| Material | : | C12200 Copper (Tube), NBR/PVC (Insulation) |
| Model | : | 41020150M144 |
| Pressure Rating | : | 700 PSI (UL Recognized) |
| Series | : | Mini Split Line Sets |
| Suction Line Size | : | 5/8 " |
| Wall Thickness | : | 1 in |
Linesets, Inc Mini Split Line Set, 5/8" Suction Line Size, 1/4" Liquid Line Size, 15' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized), ASTM B1003, UL 700 PSI, Black, Domestic
Includes 15 feet of 1/4" liquid line and 5/8" suction line.Constructed with high-quality C12200 copper tubing.Features 1-inch thick black elastomeric insulation for thermal protection.Integrated 14/4 gauge stranded thermostat wire simplifies wiring connections.Optional flare fittings available for secure, easy connections.UL recognized with a pressure rating up to 700 PSI.Meets ASTM B1003 material standards.
