Linesets, Inc Mini Split Line Sets 40820300M144L Mini Split Line Set, 1/2" Suction Line Size, 1/4" Liquid Line Size, 30' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized)

Linesets, Inc Mini Split Line Sets 40820300M144L Mini Split Line Set, 1/2" Suction Line Size, 1/4" Liquid Line Size, 30' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized)

Manufacturer: WB
Brand: WB
Part #: 382966
MPN: 40820300M144L
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Color      :      Black
Connection Type      :      Cable, Flare
Domestic/Import      :      Domestic
Flared      :      No
Insulation Material      :      Elastomeric
Insulation Thickness      :      1 "
Length      :      30 '
Liquid Line Size      :      1/4 "
Material Standard      :      ASTM B1003, UL 700 PSI
Material      :      C12200 Copper (Tube), NBR/PVC (Insulation)
Model      :      40820300M144L
Pressure Rating      :      700 PSI (UL Recognized)
Series      :      Mini Split Line Sets
Suction Line Size      :      1/2 "
Wall Thickness      :      1 in

Linesets, Inc Mini Split Line Set, Model: Mini Split Line Sets, 1/2" Suction Line Size, 1/4" Liquid Line Size, 30' Length, 1" Insulation Thickness, Cable, Flare, C12200 Copper (Tube), NBR/PVC (Insulation), 700 PSI (UL Recognized), Black, Domestic

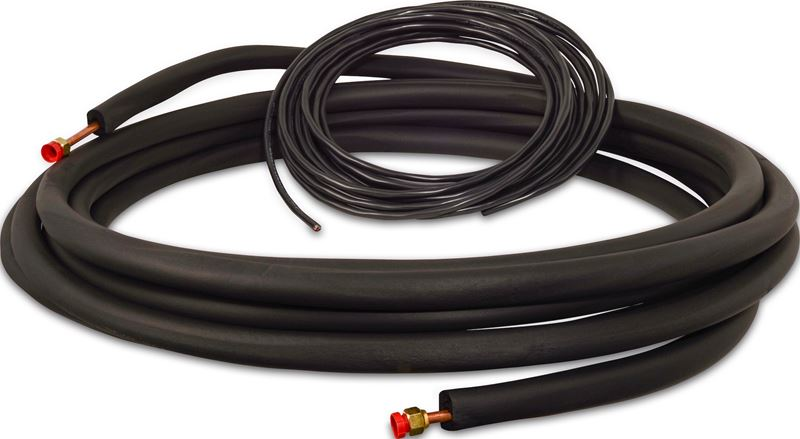

Includes a 30-foot line set with a 1/4" liquid line and 1/2" suction line.Features 1" thick black elastomeric insulation on both copper lines.Constructed from C12200 copper tubing.Includes an integrated 14-gauge, 4-conductor control/thermostat wire.Rated for up to 700 PSI (UL recognized).Meets ASTM B1003 standards.
