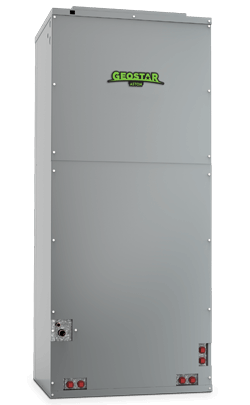

Water Furnace Aston Series SAH SAH060B201CR1S18 Air Handler, 5 Tons, Aurora AHB Control, Variable Speed ECM1 Motor, R-410A, 22" x 20" x 1" Filter Size, 20 kW Factory Heat, 3/4" FPT (Condensate) Connection, 208/230 V

Amperage Rating	:	76.3 A (FLA, 208 V); 87.0 A (FLA, 240 V)
BTU Rating	:	60,000 BTU/hr
Configuration	:	Aurora AHB Control, Variable Speed ECM1 Motor
Connection Type	:	3/4" FPT (Condensate)
Dimensions	:	58" H x 24-9/10" W x 21-1/5" D
Factory Heat	:	20 kW
Filter Size	:	22" x 20" x 1"
Finish	:	Powder Coated
Frequency Rating	:	60 Hz
HP Rating	:	1 HP (Blower Motor Output)
Material	:	Galvanized Steel
Model	:	SAH060B201CR1S18
Phase	:	1
Refrigerant Type	:	R-410A
Series	:	Aston Series SAH
Tonnage	:	5 tons
Voltage Rating	:	208/230 V

Water Furnace Air Handler, Model: Aston Series SAH, 5 Tons, Aurora AHB Control, Variable Speed ECM1 Motor, R-410A, 22" x 20" x 1" Filter Size, 20 kW Factory Heat, 3/4" FPT (Condensate) Connection, 208/230 V, 1 Phase, 1 HP (Blower Motor Output), 58" H x 24-9/10" W x 21-1/5" D Dimensions, Galvanized Steel, 76.3 A (FLA, 208 V); 87.0 A (FLA, 240 V), 60 Hz, Powder Coated

Features a variable speed ECM blower motor for efficient operation.Constructed with heavy-gauge galvanized steel and a durable powder-coat finish.Field convertible for upflow, downflow, horizontal left, or horizontal right installation.Utilizes environmentally friendly R-410A refrigerant.Includes 20 kW factory-installed auxiliary electric heat.Equipped with Aurora Controls and an external diagnostic port for simplified servicing.UL US Listed for safety assurance.
