| Amperage Rating | : | 4.4 A Full Load |
| Bearing Type | : | Sleeve |
| Dimensions | : | 9 in L |
| Drive Type | : | Direct |
| Duty Type | : | Continuous |
| Frame Size | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Insulation Class | : | B |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Open |
| Mounting Type | : | Cradle |
| Number of Poles | : | 8 |
| Number of Speeds | : | 2 |
| Phase | : | 1 ph |
| Rotation Type | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 2-1/2 in L |
| Speed Rating | : | 825 rpm |
| Voltage Rating | : | 208/230 V |

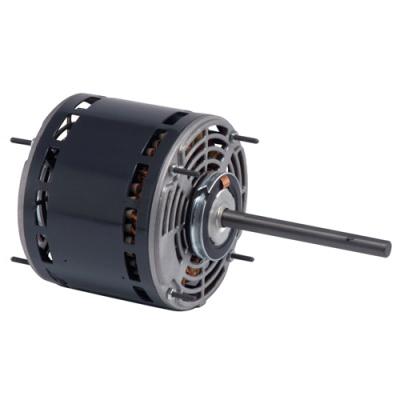

US Motors® Blower Motor, 208/230 V, 4.4 A Full Load, 1/2 hp, 825 rpm, 1 ph Phase, 60 Hz, Open Motor Enclosure, 48Y Frame, 1/2 in Dia x 2-1/2 in L Shaft, Reversible Rotation, 2 Speed, Sleeve Bearing, Cradle Mounting, Direct Drive, Continuous, B Insulation Class, 8 Poles, Rolled Steel, 9 in L
- Automatic thermal protection
- Stud extension on popular models
- Sleeve bearings have all angle throughst system
- Capacitor 20 uF at 370 VAC
