| Amperage Rating | : | 0.7 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5.625 in Dia x 10.062 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 53.3 % |
| Frame Size | : | 48YZ |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/12 hp |
| Insulation Class | : | B |
| MFD Rating | : | 5 uF |
| Motor Enclosure Type | : | Totally Enclosed Air Over |
| Mounting Type | : | Stud |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation Type | : | Clockwise Lead End |
| Shaft Size | : | 1/2 in Dia x 1-3/5 in L |
| Speed Rating | : | 1100 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208 to 230 V |

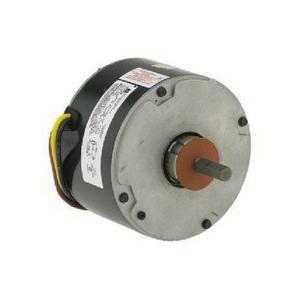

US Motors® Condenser Fan Motor, 208 to 230 V, 0.7 A, 1/12 hp, 1100 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48YZ Frame, 1/2 in Dia x 1-3/5 in L Shaft, Clockwise Lead End Rotation, 1 Speed, Sleeve Bearing, Stud Mounting, B Insulation Class, 53.3 % Efficiency, Continuous, 5 uF MFD Rating, 60 deg C, 5.625 in Dia x 10.062 in L
- Permanent split capacitor
- Bearing have all angle thrust system
- Hubless lead end
- Automatic reset thermal overload protection
