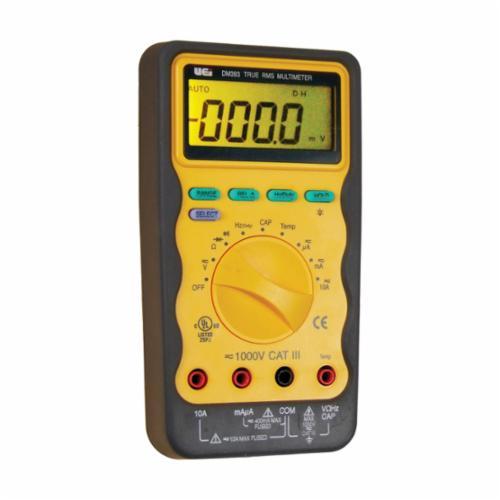

UEi TEST INSTRUMENTS™ DM393 Digital Multimeter, 400 mV to 1000 V, 400 uA to 10 A, 400 Ohm to 10 MOhm, Backlit Display

UEi TEST INSTRUMENTS™ DM393 Digital Multimeter, 400 mV to 1000 V, 400 uA to 10 A, 400 Ohm to 10 MOhm, Backlit Display

Brand: UEi TEST INSTRUMENTS™
Part #: 1895
Customer Part #:
Amperage Rating      :      400 uA to 10 A
Capacitance Accuracy      :      2.5 %
Capacitance      :      40 nF to 100 uF
Current Accuracy      :      1%, 1.5%
Display Type      :      Backlit
Frequency Accuracy      :      0.05 %
Frequency Rating      :      5 Hz to 10 MHz
Resistance Accuracy      :      0.5%, 1%, 1.5%
Resistance      :      400 Ohm to 10 MOhm
Temperature Rating      :      -40 to 2372 deg F
Voltage Accuracy      :      0.75%, 1%, 0.5%
Voltage Rating      :      400 mV to 1000 V

UEi TEST INSTRUMENTS™ Digital Multimeter, 400 mV to 1000 V, 400 uA to 10 A, 5 Hz to 10 MHz, 40 nF to 100 uF, 400 Ohm to 10 MOhm Resistance, Backlit Display, 0.75%, 1%, 0.5% Voltage Accuracy, 1%, 1.5% Current Accuracy, 0.5%, 1%, 1.5% Resistance Accuracy, 2.5% Capacitance Accuracy, 0.05% Frequency Accuracy, -40 to 2372 deg F

  • True rms AC volts and As
  • All inputs, ranges and functions protected to CATIII 1000 V
  • Access to battery and fuses without breaking calibration
  • 0.5% basic DC accuracy
  • Autoranging
  • Data hold
  • Relative mode
  • Over molded case
  • 4000 count backlit display
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/UEi_Test_Instruments_DM393_Catalog.pdf
  • Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/UEi_Test_Instruments_DM393_Instruction_Installation_Manual.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/UEi_Test_Instruments_DM393_Specification_Sheet.pdf
