| Amperage Rating | : | 1.7 A |
| Cooling Capacity | : | 24000 Btu/hr |
| Dimensions | : | 36-1/2 in H x 20-1/2 in W x 15 in D |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Aluminum |
| Motor Type | : | PCS |
| Mounting Type | : | Wall |
| Phase | : | 1 ph |
| Pressure Rating | : | 0.6 in-WC |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 750 rpm |
| Series | : | TWM Series |
| Sound Level | : | 52 dBA |
| Suction Line Size | : | 3/4 in |
| Temperature Rating | : | -22 to 158 deg F |
| Voltage Rating | : | 208/230 V |

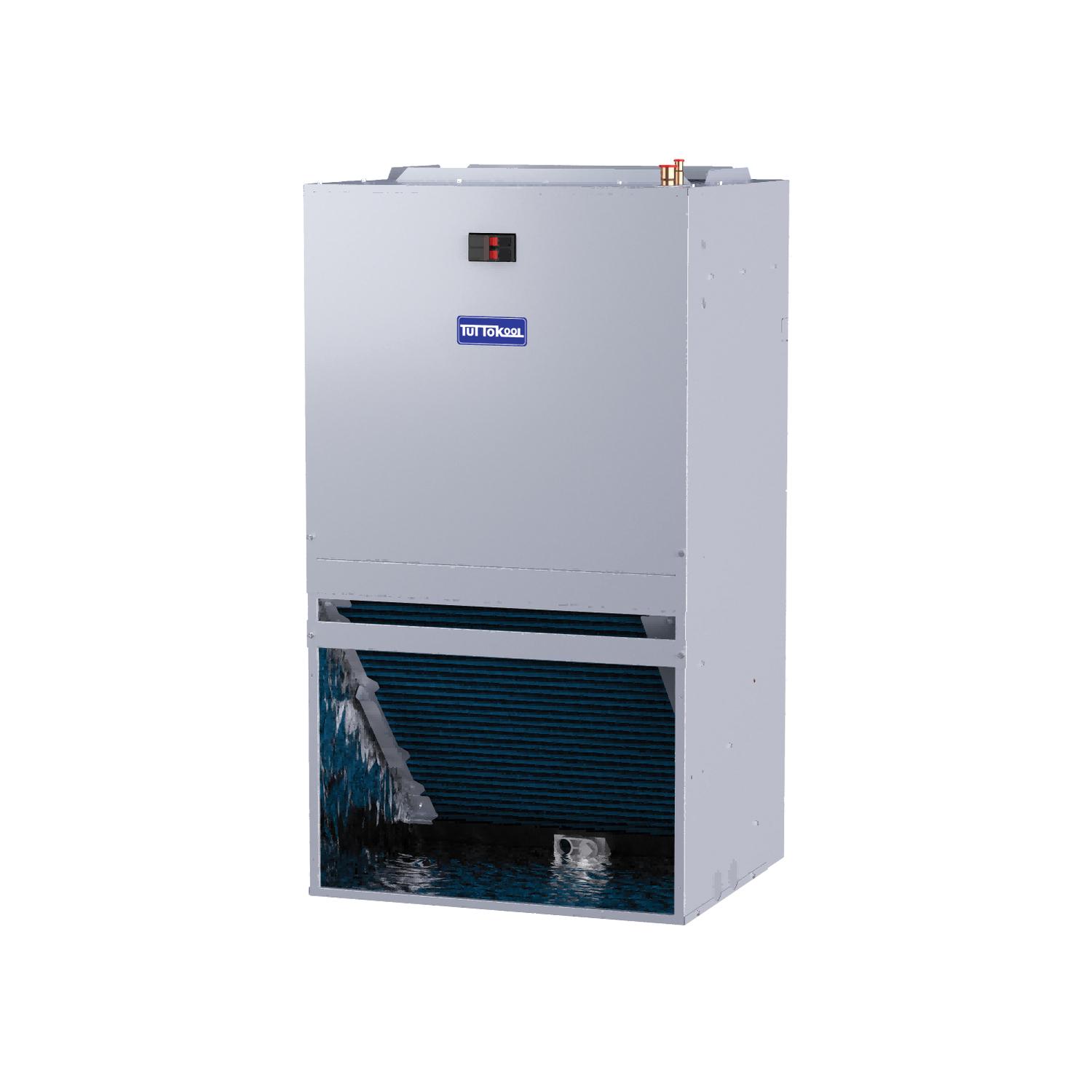

Tuttokool Air Handler, TWM Series, 24000 Btu/hr Cooling Capacity, 208/230 V, 1.7 A, 1/5 hp, 60 Hz, 1 ph Phase, 750 rpm Rotational Speed, R-454B Refrigerant, 52 dBA Sound Level, 3/8 in Liquid Line, 3/4 in Suction Line, PCS Motor, 0.6 in-WC, Wall Mounting, Aluminum, -22 to 158 deg F, 36-1/2 in H x 20-1/2 in W x 15 in D
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack
- Wall-hanging bracket included
- Front or bottom return available
- Optional heating elements in 5kW, 7.5kW, and 10kW
- All-aluminum coil
- AHRI listed and ETL listed
