| Amperage Rating | : | 4.2 A |
| CFM Rating | : | 1240 cfm |
| Configuration | : | Down Flow, Horizontal Left, Horizontal Right, Up Flow |
| Connection Size | : | 3/4 in |
| Connection Type | : | FPT |
| Cooling Capacity | : | 34200 Btu/hr |
| Dimensions | : | 46-1/2 in H x 19-5/8 in W x 21-5/8 in D |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Aluminum |
| Motor Type | : | ECM |
| Phase | : | 1 ph |
| Pressure Rating | : | 0.58 in-WC |
| Refrigerant Type | : | R-454B |
| Rotational Speed | : | 1050 rpm |
| Series | : | T4AH Series |
| Sound Level | : | 70 dB |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |

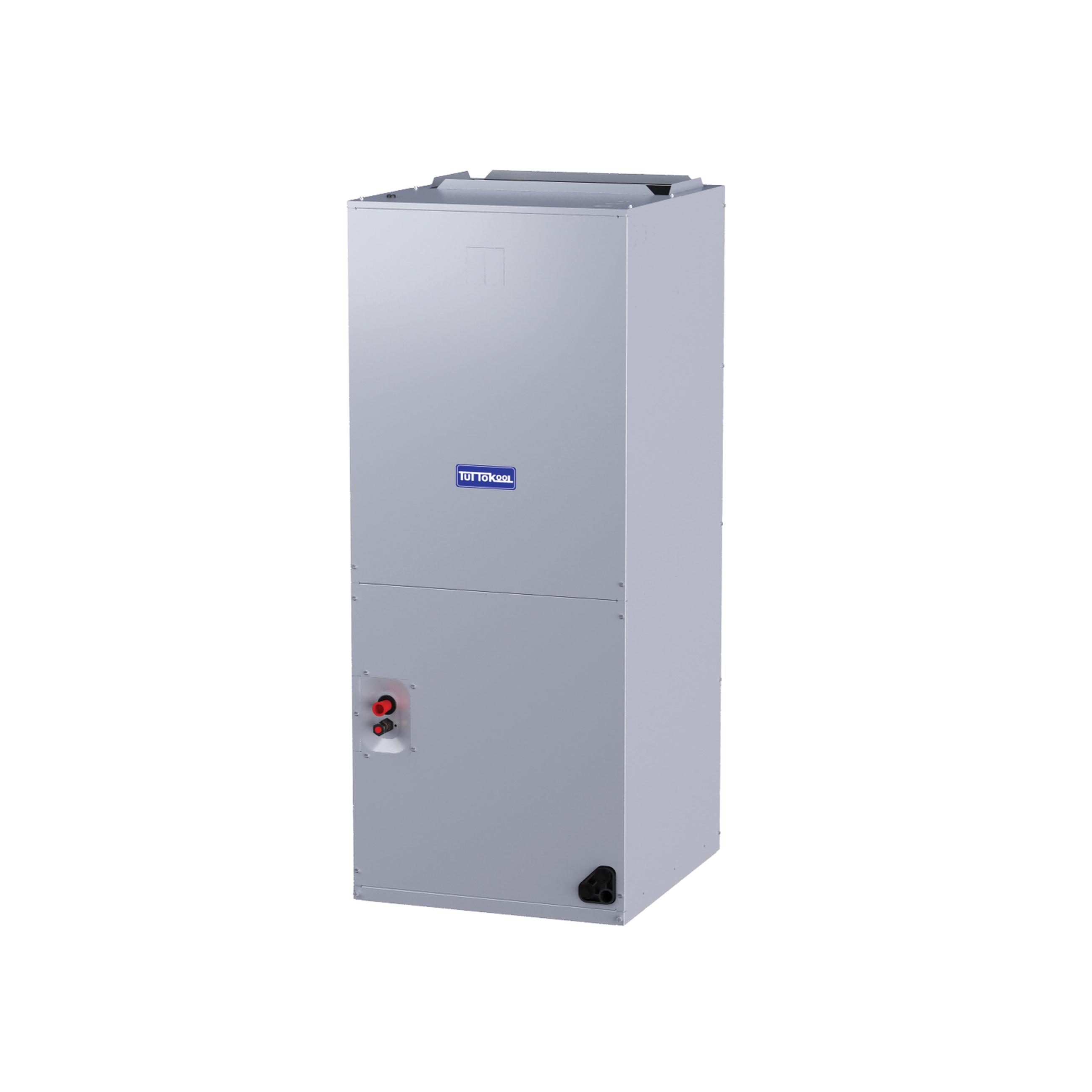

Tuttokool High-Efficiency Air Handler, T4AH Series, 34200 Btu/hr Cooling Capacity, 208/230 V, 4.2 A, 1/2 hp, 60 Hz, 1 ph Phase, 1050 rpm Rotational Speed, 1240 cfm, Down Flow, Horizontal Left, Horizontal Right, Up Flow, FPT Connection, R-454B Refrigerant, 70 dB Sound Level, 3/4 in Connection, 3/8 in Liquid Line, 3/4 in Suction Line, ECM Motor, 0.58 in-WC, Aluminum, 46-1/2 in H x 19-5/8 in W x 21-5/8 in D
- TXV designed for easy piston replacement
- All-aluminum heat exchanger extends product lifetime
- Advanced internal welding process to reduce potential corrosion
- AHRI and ETL listed
- Polymer condensate drain pan with UVC inhibitor to extends product lifetime
- Fully-insulated cabinet design
