| Amperage Rating | : | 2.4 A |
| Connection Type | : | FPT |
| Cooling Capacity | : | 24000 Btu/hr |
| Dimensions | : | 36-1/2 in H x 20-1/2 in W x 15 in D |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Aluminum |
| Motor Type | : | ECM |
| Mounting Type | : | Wall |
| Nominal Capacity | : | 2 ton |
| Phase | : | 1 ph |
| Pressure Rating | : | 0.8 in-WC |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1050 rpm |
| Sound Level | : | 54 dB |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |
IIntroducing Tuttokool's wall mounted fan coil line, where innovation meets reliability to redefine your HVAC experience. Designed to elevate indoor comfort effortlessly, our coils excel in both heating and cooling applications, seamlessly integrating into your system to optimize air temperature and humidity levels.

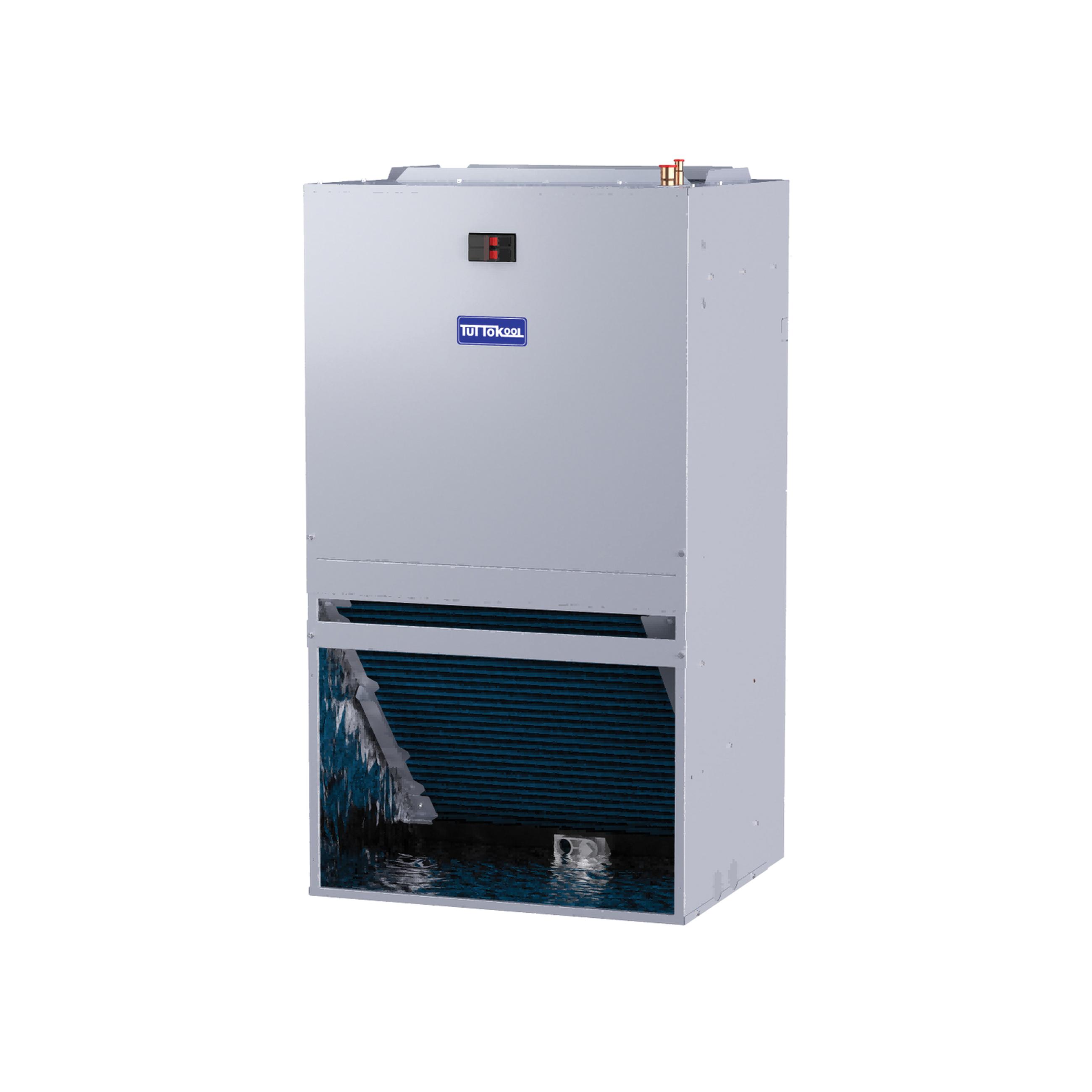

Tuttokool Air Handler Unit, 2 ton Nominal Capacity, 24000 Btu/hr Cooling Capacity, 208/230 V, 2.4 A, 1/3 hp, 60 Hz, 1 ph Phase, 1050 rpm Rotational Speed, FPT Connection, R-410A Refrigerant, 54 dB Sound Level, 3/8 in Liquid Line, 3/4 in Suction Line, ECM Motor, 0.8 in-WC, Wall Mounting, Aluminum, 36-1/2 in H x 20-1/2 in W x 15 in D
- 1.5-3.0 ton models available
- Galvanized steel cabinets with powder painted for 1000 hours salt spray test
- The optimized compact design with the smallest footprint for easier transportation and save your installation space
- ETL certified for safety and AHRI listed for efficiency
- AWM5 models equipped with ECM motor and TXV for better performance
- Front and bottom air return
