| CFM Rating | : | 1900 cfm |
| Compressor Type | : | Scroll |
| Configuration | : | Down Flow, Horizontal |
| Cooling BTU Rating | : | 57000 Btu/hr |
| Dimensions | : | 51-9/16 in L x 44-13/16 in W x 51-7/16 in H |
| EER Rating | : | 10.6 |
| Finish | : | Galvanized/Powder-Painted |
| Fins per Inch | : | 17 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 3/4 hp |
| HSPF Rating | : | 6.7 |
| Heating BTU Rating | : | 57000 Btu/hr |
| Material | : | Steel |
| Model | : | APHM |
| Nominal Capacity | : | 5 ton |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1070 rpm |
| SEER Rating | : | 13.4 |
| Voltage Rating | : | 208/230 V |
| Wattage | : | 5.38 kW |

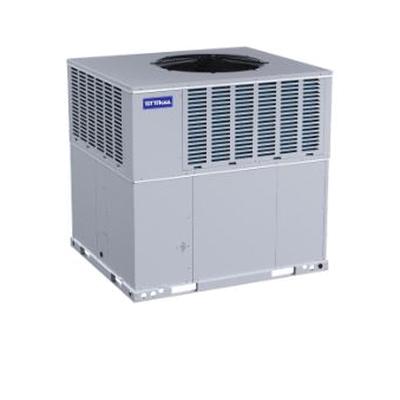

Designed to redefine versatility and efficiency in HVAC solutions, TuttoKool's dual discharge package units line brings together cutting-edge technology and space-saving design. Ideal for places where space is a premium, our units combine heating and cooling capabilities into a single robust steel cabinet.
Tuttokool Dual Discharge Packaged Unit, Model: APHM, 5 ton Nominal Capacity, 57000 Btu/hr Cooling, 57000 Btu/hr Heating, 208/230 V, 5.38 kW Wattage, 3/4 hp, 60 Hz, 1 ph Phase, 1070 rpm Rotational Speed, Scroll Compressor, 1900 cfm, 13.4 SEER, 6.7 HSPF, 10.6 EER Rating, Down Flow, Horizontal, R-410A Refrigerant, 1 Stages, 17 Fins per Inch, Steel, Finish: Galvanized/Powder-Painted, 51-9/16 in L x 44-13/16 in W x 51-7/16 in H
- Quite dual discharge
- Power-painted galvanized steel cabinet
- Electric heat kit available as a field-installed option: 5/8/10/15/20kW
- High-efficiency compressors operate smoothly, quietly, consistently
- Internal safeguards protect compressor against high and low pressure, coil temperature
- Copper tube/aluminum fill coil
- ETL certified for safety of AHRI listed for efficiency
