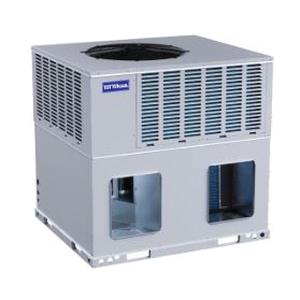

Tuttokool APGM3030G060A Dual Discharge Packaged Unit, 60000 Btu/hr Input, 208/230 V, 4.2 A, 81 % AFUE, 2.5 ton

Tuttokool APGM3030G060A Dual Discharge Packaged Unit, 60000 Btu/hr Input, 208/230 V, 4.2 A, 81 % AFUE, 2.5 ton

Brand: Tuttokool
Part #: 96942
Customer Part #:
AFUE Rating      :      81 %
Amperage Rating      :      4.2 A
Compressor Type      :      Rotary
Decibel Rating      :      79 dB
Dimensions      :      50-11/16 in L x 35-1/16 in W x 46-13/16 in H
Finish      :      Galvanized/Powder-Painted
Frequency Rating      :      60 Hz
HP Rating      :      1/2 hp
Input BTU Rating      :      60000 Btu/hr
Material      :      Steel
Number of Stages      :      1
Output BTU Rating      :      48000 Btu/hr
Phase      :      1 ph
Refrigerant Type      :      R-410A
Rotational Speed      :      1050 rpm
SEER Rating      :      13.4
Tonnage      :      2.5 ton
Voltage Rating      :      208/230 V

Designed to redefine versatility and efficiency in HVAC solutions, TuttoKool's dual discharge package units line brings together cutting-edge technology and space-saving design. Ideal for places where space is a premium, our units combine heating and cooling capabilities into a single robust steel cabinet.

Tuttokool Dual Discharge Packaged Unit, Input BTU Rating: 60000 Btu/hr, Output BTU Rating: 48000 Btu/hr, 208/230 V, 4.2 A, 1/2 hp, 1050 rpm Rotational Speed, 60 Hz, 1 ph Phase, Rotary Compressor, 13.4 SEER, 81 % AFUE Rating, Tonnage: 2.5 ton, 1 Stages, R-410A Refrigerant, 79 dB Decibel, Steel, Finish: Galvanized/Powder-Painted, 50-11/16 in L x 35-1/16 in W x 46-13/16 in H

  • Quite dual discharge gas/electric
  • Power-painted galvanized steel cabinet
  • Electric heat kit available as a field-installed option: 5/8/10/15/20kW
  • High-efficiency compressors operate smoothly, quietly, consistently
  • Internal safeguards protect compressor against high and low pressure, coil temperature
  • Copper tube/aluminum fill coil
  • ETL certified for safety of AHRI listed for efficiency
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/TuttoKool_APGM3030G060A_Catalog.pdf
  • Service Manual https://assets.unilogcorp.com/267/ITEM/DOC/TuttoKool_APGM3030G060A_Service_Manual.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/TuttoKool_APGM3030G060A_Specification_Sheet.pdf
