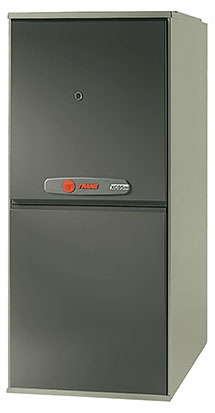

Trane XC95 TUHMD120ACV5VB 5T 97 AFUE Condensing Modulating Gas Furnace
Trane XC95 TUHMD120ACV5VB 5T 97 AFUE Condensing Modulating Gas Furnace
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 391347
MPN: TUHMD120ACV5VB
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 97 % |
| Additional Information | : | Aluminized Steel Exchanger Material |
| Amperage Rating | : | 13.7 A |
| Blower Size | : | 10 in Dia x 10 in W in |
| Cabinet Dimensions | : | 40 in H x 24-1/2 in W x 28 in D |
| Configuration | : | Upflow, Horizontal |
| Connection Size | : | 1/2 in |
| Energy Star Compliant | : | No |
| Finish | : | Powder Painted |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 20 A |
| HP Rating | : | 1 hp |
| Ignition Type | : | Hot Surface |
| Input BTU Rating | : | 120,000 Btu/hr |
| Material | : | Steel |
| Model Number | : | TUHM |
| Model | : | TUHM |
| Motor Type | : | Variable |
| Number of Burners | : | 6 |
| Number of Stages | : | Modulating |
| Series | : | XC95 |
| Temperature Rise | : | 40 to 70 deg F |
| Tonnage | : | 5.0 Ton |
| Vent Size | : | 3 in Dia in |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115/120 V |
| Width | : | 24.5 in |
Trane XC95 - TUHMD120ACV5VB, 5T, 97% AFUE, 120,000 BTU, 115V, Variable Speed Fan Motor, Upflow / HorizontalCondensing Modulating Gas Furnace
ComfortLink™ II communicating capabilityDurable silicon nitride hot surface igniterHeavy gauge, two-tone powder-painted cabinetFully modulating gas heat furnace provides greater fuel efficiency and ultimate comfort controlVariable-speed blower motorOne-piece aluminized steel primary heat exchangerMulti-port, in-shot burners
