| Bore Diameter (In) | : | 7/8 |
| Inside Diameter (In) | : | 7/8 |
| Keyway Size (In) | : | 3/16 x 3/32 |
| Length Thru Bore (In) (Fraction) | : | 7/8 |
| Length Thru Bore (In) | : | 1.88 |
| Material | : | Cast Iron |
| New Long Description-500 | : | Sheave, VARIABLE PITCH, 3/16 IN X 3/32 IN KEYWAY, CAST IRON, 1 Grooves, 7/8 IN ID, 1.875 IN LG Thru Bore, 3.75 IN OD, 1.875 IN LG, 2.6 TO 3.6 IN Pitch Dia, 1-7/8 IN WD, 21/32 TO 1-1/32 IN WD |
| New Short Description- 150 | : | Sheave,VARIABLE PITCH,3/16 IN X 3/32 IN KEYWAY,CAST IRON,1 Grooves,7/8 IN ID,1.875 IN LG Thru Bore,3.75 IN OD,1.875 IN LG,2.6 TO 3.6 IN Pitch Dia |
| Number of Grooves | : | 1 |
| Outside Diameter (In) | : | 3.75 |
| Overall Length (In) (Fraction) | : | 1-7/8 |
| Overall Length (In) | : | 1.875 |
| Pitch Diameter (In) | : | 2.3 to 3.1 3L Section |
| Type | : | Finished Bore |
| Width Face Size (In) | : | 11/16 to 1-1/16 |

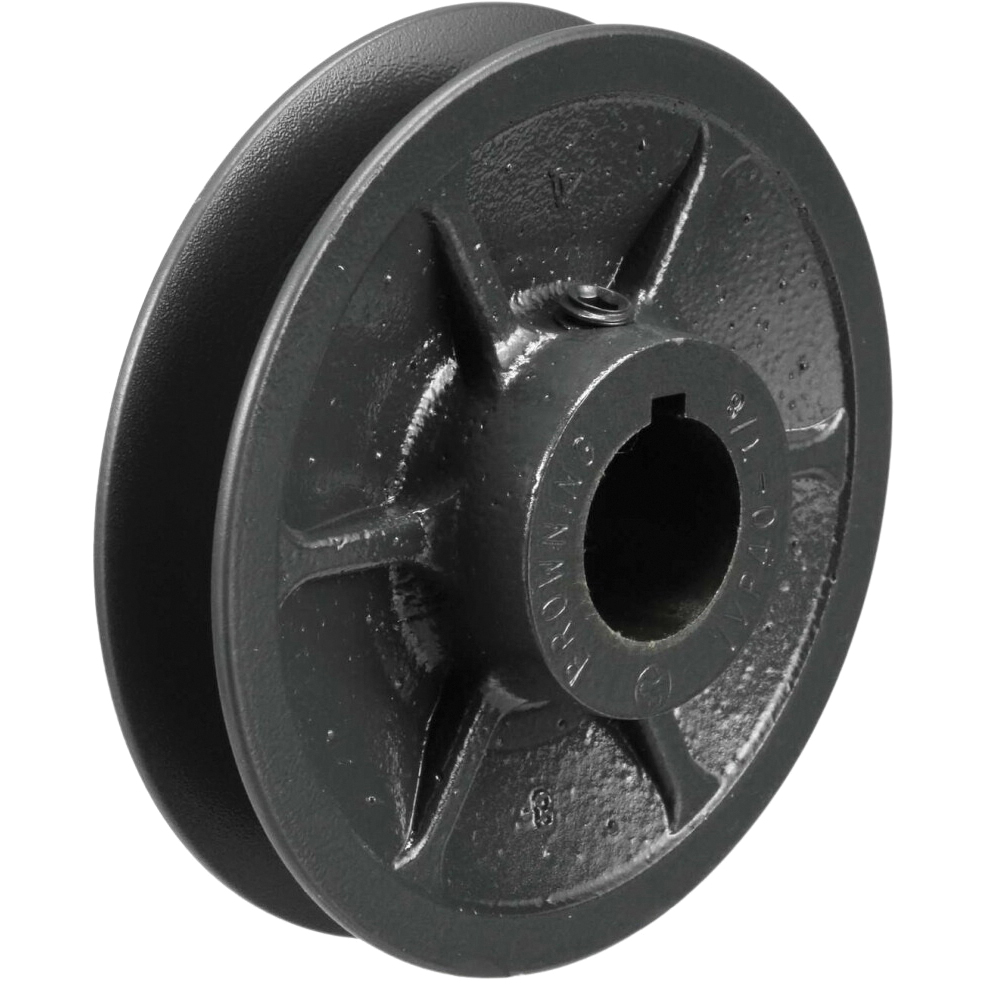

TRANE® Sheave, 7/8 in Bore Diameter, 3-3/4 in OD, 2.3 to 3.1 in Pitch Diameter, 1 Number of Grooves, 11/16 to 1-1/16 in Face Width, 1-7/8 in Overall Length, Cast-Iron, Powder-Coated, 3/16 x 3/32 in Keyway Size, 7/8 in Length Through Bore
