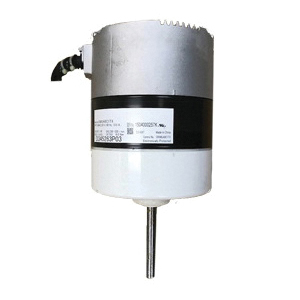

TRANE® MOT16958 Variable Speed Blower Motor, 120 VAC, 10.5 A, 1 hp, 1200 rpm Speed, 1 ph, 60 Hz, 48 Frame
TRANE® MOT16958 Variable Speed Blower Motor, 120 VAC, 10.5 A, 1 hp, 1200 rpm Speed, 1 ph, 60 Hz, 48 Frame
Manufacturer: Trane International Inc
Brand: TRANE®
Part #: 387943
MPN: MOT16958
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | 5-11/16 x 8-1/8 in NEMA Dimensions |
| Amperage Rating | : | 10.5 A |
| Bearing Type | : | Ball |
| Dimensions | : | 7.61 in H x 5.59 in W x 11.01 in D |
| Drive Type | : | Direct |
| Efficiency | : | 87 % |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Motor Enclosure Type | : | Totally Enclosed Fan-Cooled |
| Mounting Type | : | Belly Band |
| Phase | : | 1 ph |
| Rotation Type | : | CW/CCW |
| Shaft Size | : | 1/2 in Dia x 3-1/2 in L |
| Speed Rating | : | 1200 rpm |
| Torque Rating | : | 73.3 |
| Voltage Rating | : | 120 VAC |
TRANE® Variable Speed Blower Motor, 120 VAC, 10.5 A, 1 hp, 1200 rpm, 1 ph, 60 Hz, Totally Enclosed Fan-Cooled Motor Enclosure, 48 Frame, 1/2 in Dia x 3-1/2 in L Shaft, CW/CCW Rotation, 87% Efficiency, Ball Bearing, Belly Band Mounting, Direct Drive, 73.3 Torque, 7.61 in H x 5.59 in W x 11.01 in D, Additional Information: 5-11/16 x 8-1/8 in NEMA Dimensions
