| Actuator Type | : | Thermal |
| Charge Code | : | Not Available |
| Connection Type | : | Mechanical Fitting |
| Flow Control | : | TXV - Non Bleed |
| For Use With | : | 4Gxc And 4Mxc Coils |
| Inlet Size (In) | : | 3/4 |
| Inlet Size | : | 3/4 in |
| Max Nominal Capacity BTU | : | 48,000 |
| Min Nominal Capacity BTU | : | 42,000 |
| Nominal Capacity (Ton) | : | 4 |
| Nominal Capacity | : | 3.5 to 4 ton |
| Outlet Size (In) | : | 7/8 |
| Outlet Size | : | 7/8 in |
| Overall Depth | : | 4.03 in |
| Overall Height | : | 2.59 in |
| Overall Length | : | 6.13 in |
| Product Name | : | Thermal Expansion Valve Kit |
| Refrigerant Type | : | R-22 |
| Refrigerant | : | R-22 |
| Size (In) | : | L6.13 x W4.03 x H2.59 |
| Suitable For Use With | : | 4GXC and 4MXC Coils |
| Tonnage | : | 4 |
| Type | : | Thermal Expansion |

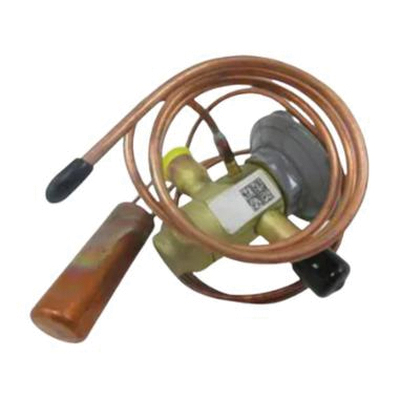

TRANE® Thermostatic Expansion Valve Kit, 3/4 in Inlet, 7/8 in Outlet, R-22 Refrigerant, 3.5 to 4 ton Nominal Capacity, 6.13 in Overall Length, 2.59 in Overall Height, 4.03 in Overall Depth, For Use With: 4GXC and 4MXC Coils
