| Additional Information | : | ECM Motor Type |
| Amperage Rating | : | 2.5 A |
| Bearing Type | : | Ball |
| Enclosure Type | : | TEAO |
| Frame | : | 48 |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1/3 hp |
| Insulation Class | : | B |
| Mounting Type | : | Stud |
| Number of Speeds | : | 2 |
| Phase | : | 1 ph |
| Series | : | FLEXPSC Series |
| Shaft Size | : | 1/2 in |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208-230 V |
Increase condensing unit SEER when replacing PSC motors or replace existing ECM condenser fan motors.

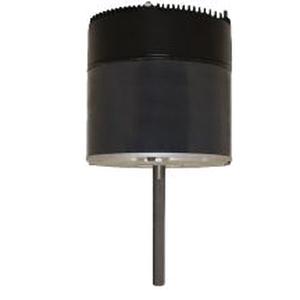

TOTALINE® Replacement Motor, FLEXPSC Series, 1/3 hp, 208-230 V, 2.5 A, 50/60 Hz, 1 ph Phase, 1075 rpm, 2 Speed, TEAO Enclosure, 48 Frame, 1/2 in Shaft, Ball Bearing, Stud Mounting, 40 deg C, Insulation Class: B, Additional Information: ECM Motor Type
- 48 Frame TEAO for Shaft Down mounting
- 50/60 Hz, 1Ph
- Ins Class B
- UL and CSA Recognized
