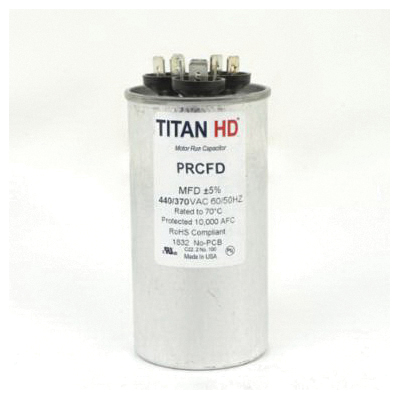

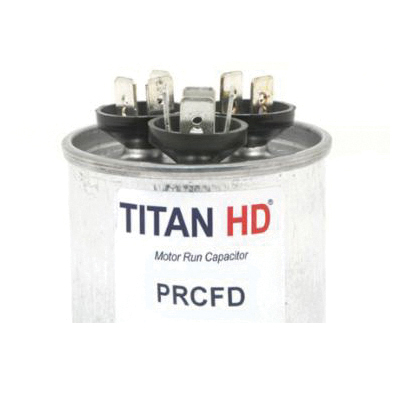

TITAN HD® PRCFD Series PRCFD5075A Motor Dual Run Capacitor, MFD Rating: 50+7.5 uF, 370/440 VAC, Round, 2 in Dia
TITAN HD® PRCFD Series PRCFD5075A Motor Dual Run Capacitor, MFD Rating: 50+7.5 uF, 370/440 VAC, Round, 2 in Dia
Manufacturer: DiversiTech Corporation
Brand: TITAN HD®
Part #: 388868
MPN: PRCFD5075A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Average Life | : | 60000 hr |
Case Material | : | Aluminum |
Diameter | : | 2 in |
Frequency Rating | : | 50/60 Hz |
Height | : | 3.84 in |
MFD Rating | : | 50+7.5 uF |
Series | : | PRCFD Series |
Shape | : | Round |
Standard Tolerance | : | +/-5 % |
Temperature Rating | : | -40 to 70 deg C |
Terminal Type | : | Standard Blade |
Voltage Rating | : | 370/440 VAC |
TITAN HD® Motor Dual Run Capacitor, PRCFD Series, 50+7.5 uF MFD Rating, 370/440 VAC, 50/60 Hz, Round Shape, Standard Blade Terminal, 60000 hr Average Life, +/-5 % Standard Tolerance, -40 to 70 deg C, Aluminum Case, 2 in Diameter, 3.84 in Height

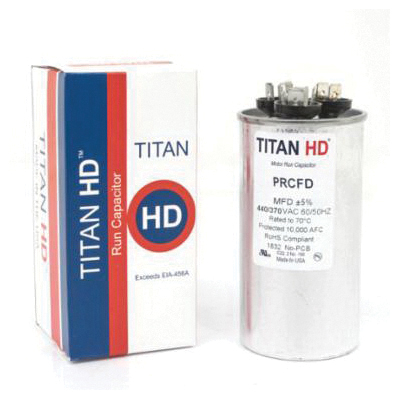

Eye catching packaging for retail environmentContains metalized polypropylene film technology for self-restoration in the event of a breakdownSophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of lifePatented, environmentally friendly oil prevents corrosion and aids in optimum heat transferAluminum cans filled with soybean based oilMeets the rigorous EIA-456-A industry standard for performance and qualityMade in USA
