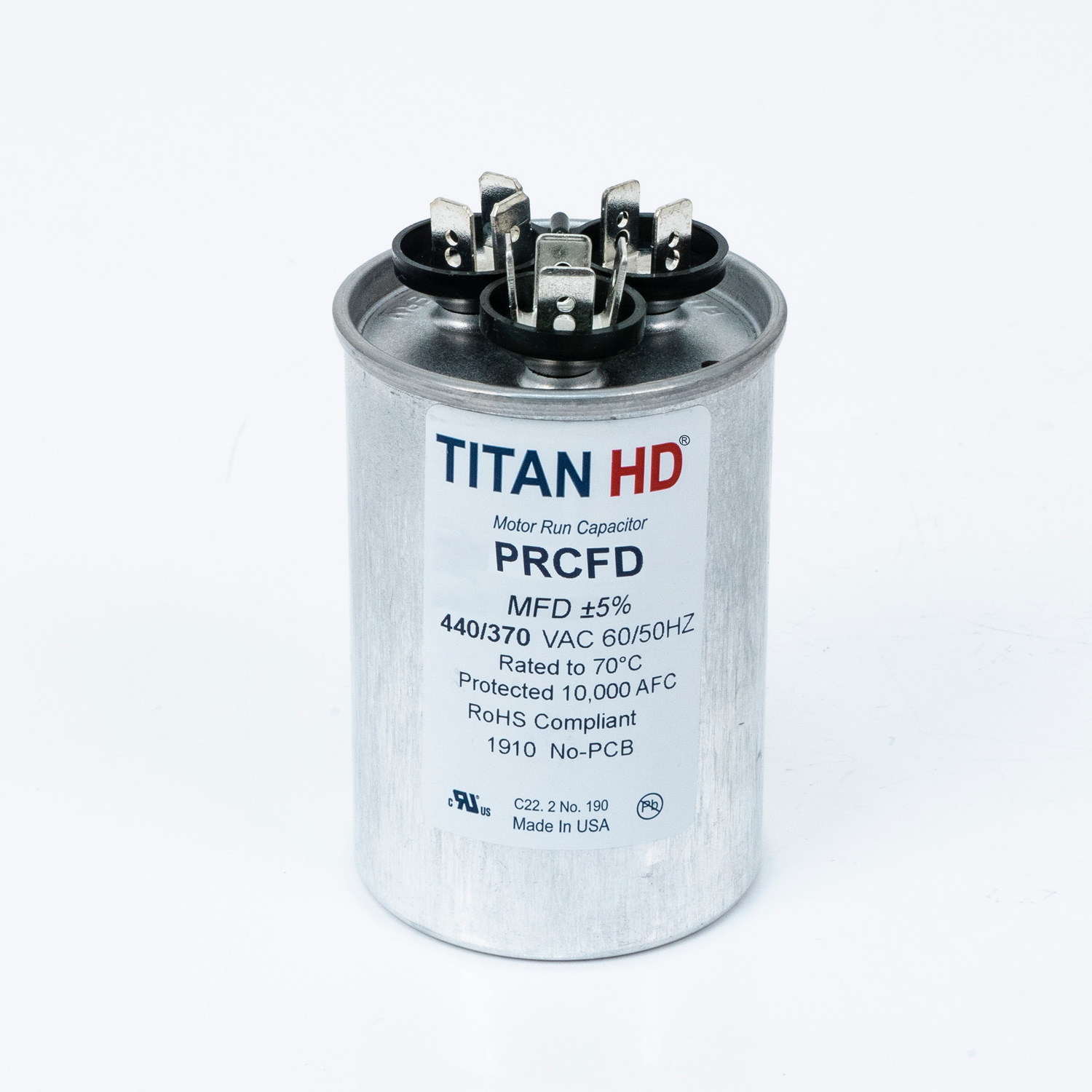

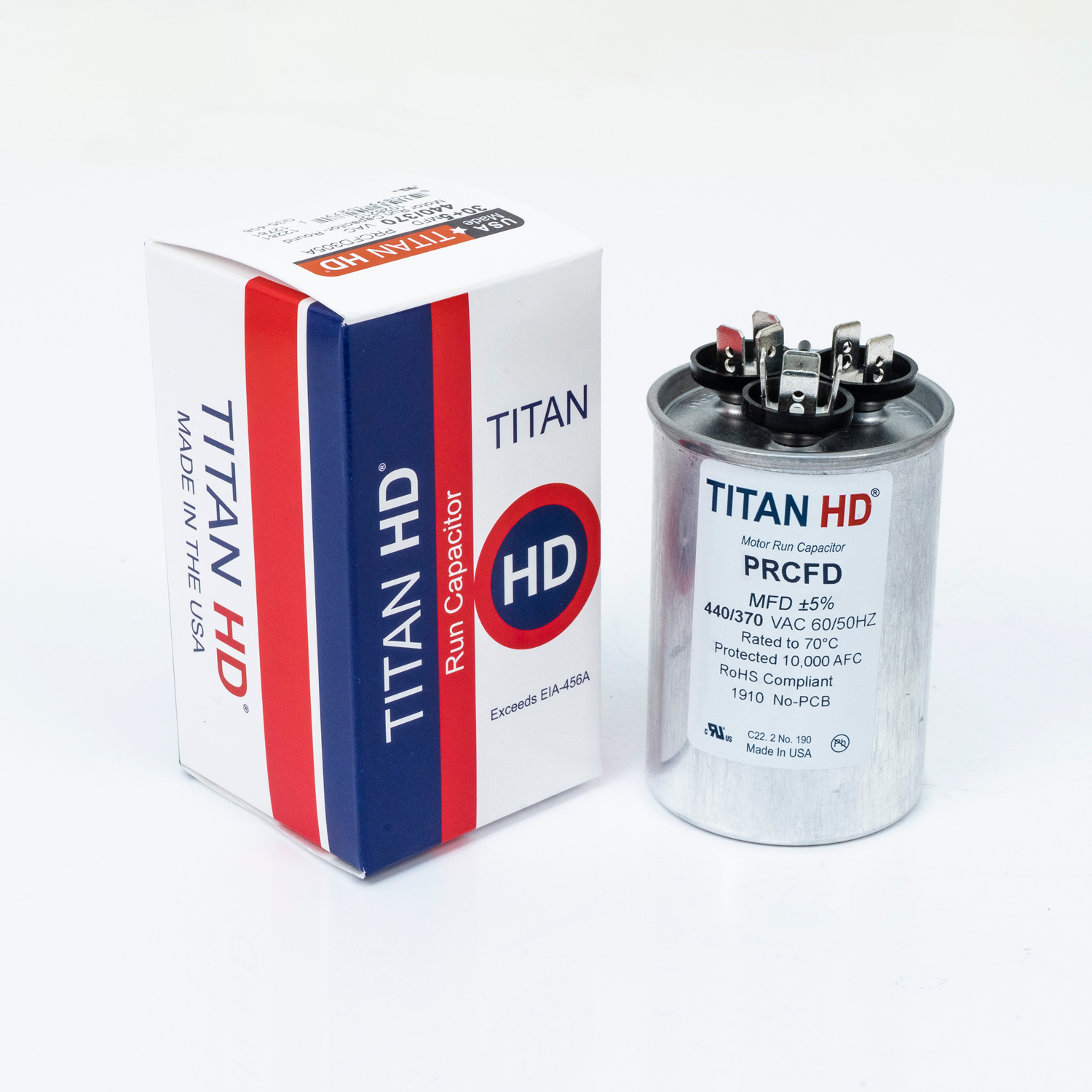

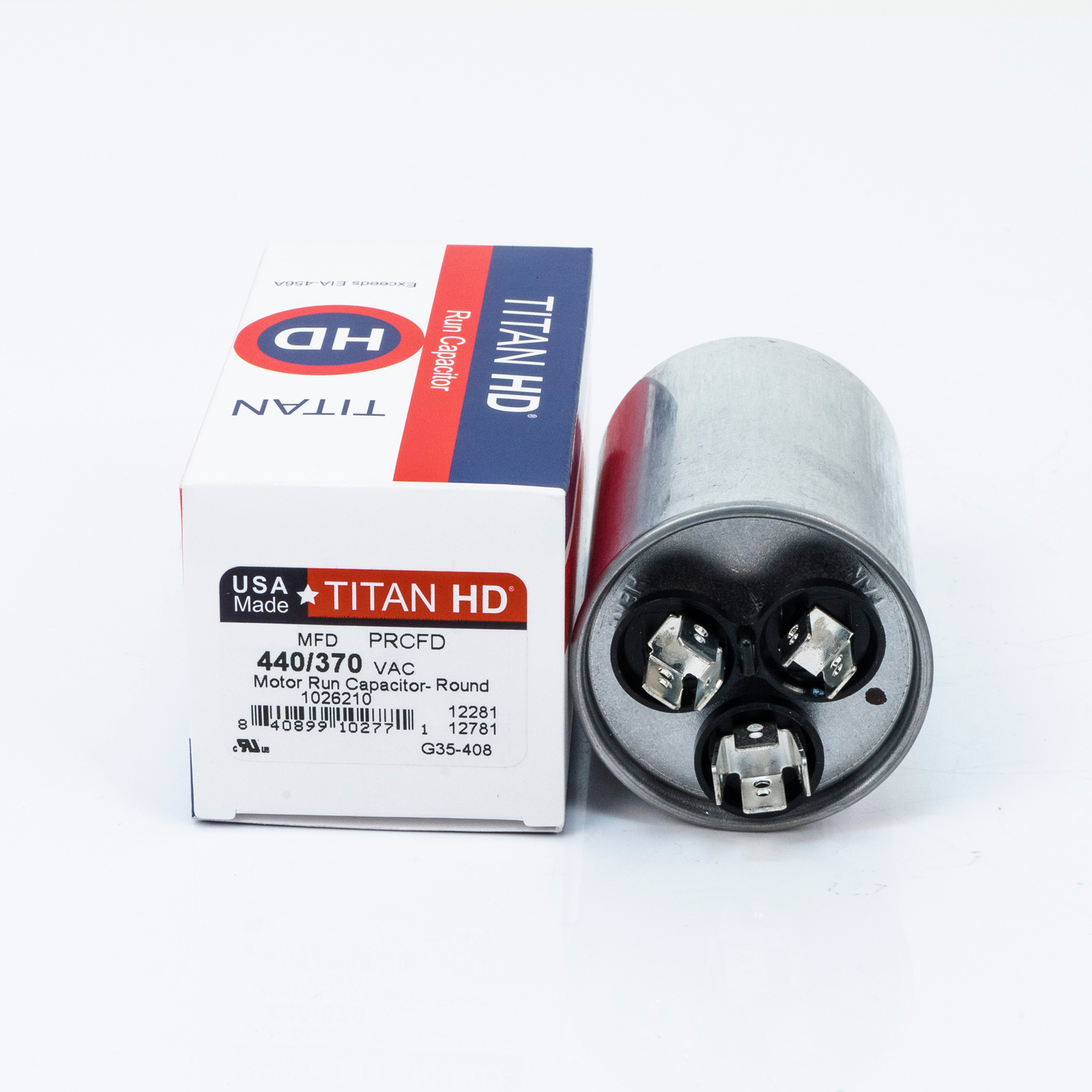

Packard Titan HD PRCFD305A Dual Motor Run Capacitor, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material

Average Life	:	60000 hr
Capacitance	:	30/5 MFD
Case Material	:	Aluminum
Diameter	:	2 "
Frequency Rating	:	50/60 Hz
Height	:	2.91 in
Housing Color	:	Silver
Housing Material	:	Aluminum (Case), Steel (Cover)
MFD Rating	:	30+5 uF
Number of Sections	:	2
Overall Height	:	3-13/32 "
Series	:	Titan HD
Shape	:	Round
Standard Tolerance	:	+/-5 %
Suitable For Use With	:	Electric Motors, Air Conditioning, Refrigeration, Business Machines, Fans
Temperature Rating	:	-40 to 70 deg C

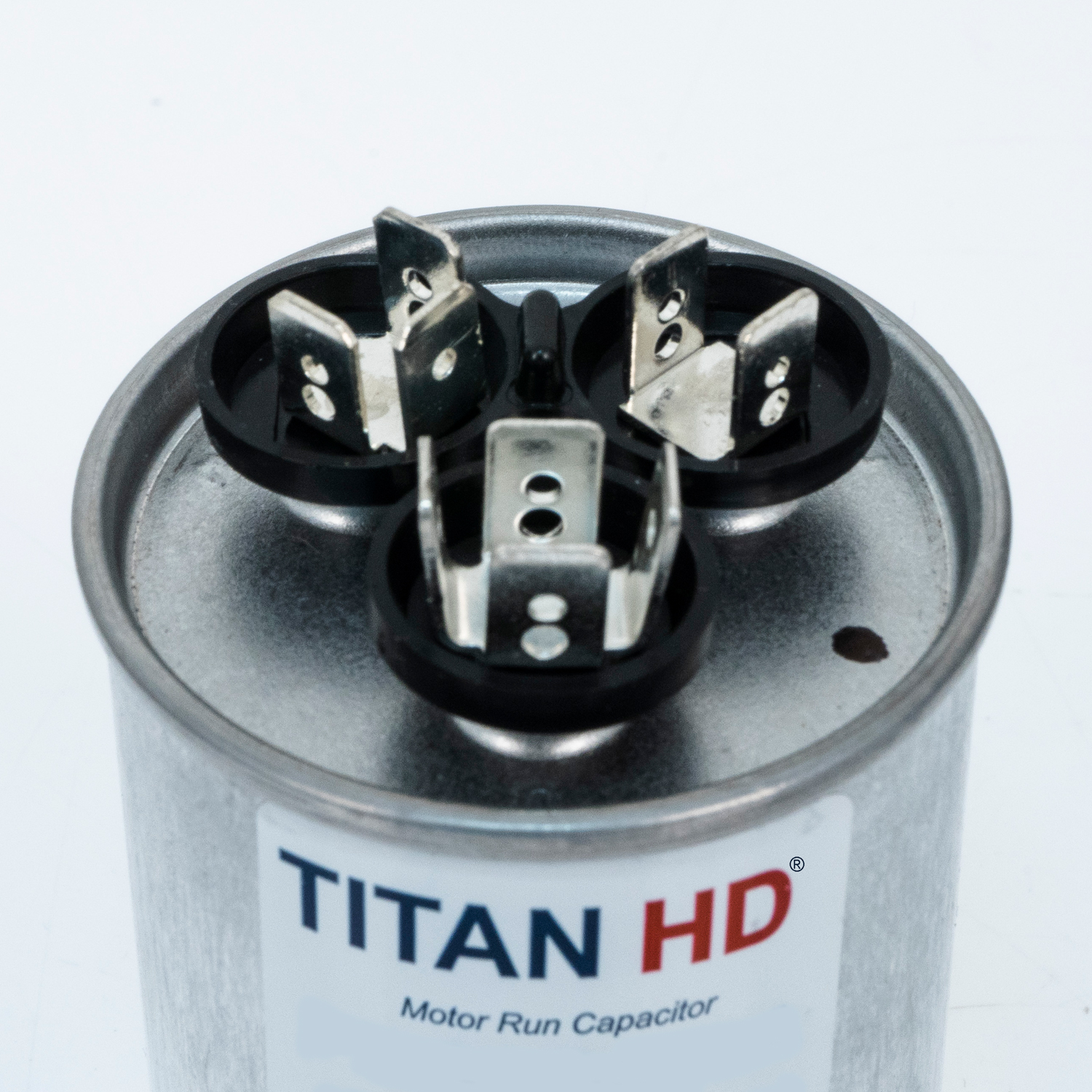

Terminal Type	:	Standard Blade
Voltage Rating	:	440/370 VAC

Packard Dual Motor Run Capacitor, Model: Titan HD, 30/5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3-13/32" Overall Height, 2" Diameter, Aluminum (Case), Steel (Cover) Housing Material, Silver

Made in the USA.Designed for a long operating life of up to 60,000 hours.Features self-healing metalized polypropylene film technology.Includes a UL-approved pressure-sensitive interrupter for safe end-of-life operation.Filled with patented, environmentally-friendly soybean-based oil to prevent corrosion and enhance heat transfer.Meets rigorous EIA-456A industry standards for performance and quality.UL recognized, cUL approved, and RoHS compliant.
