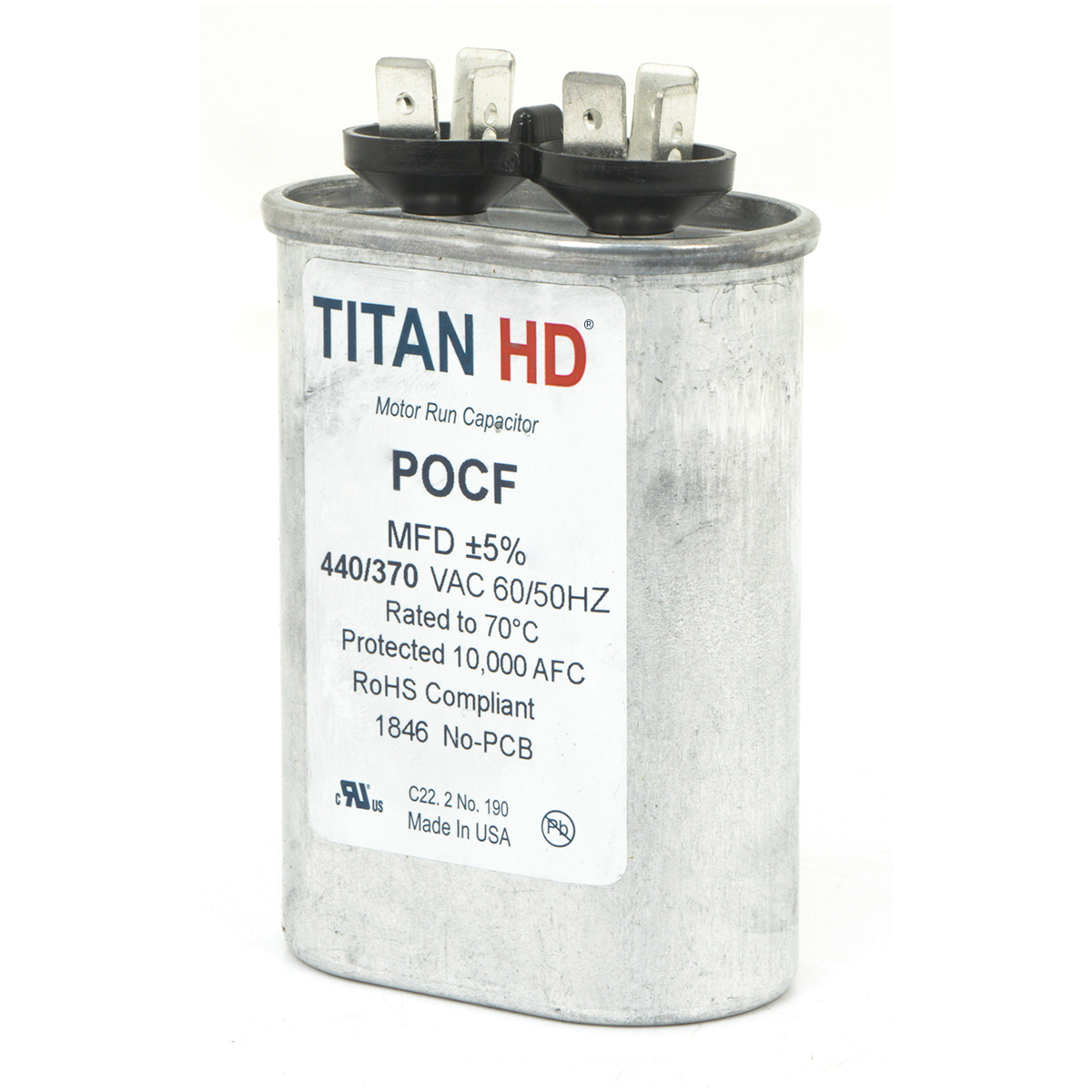

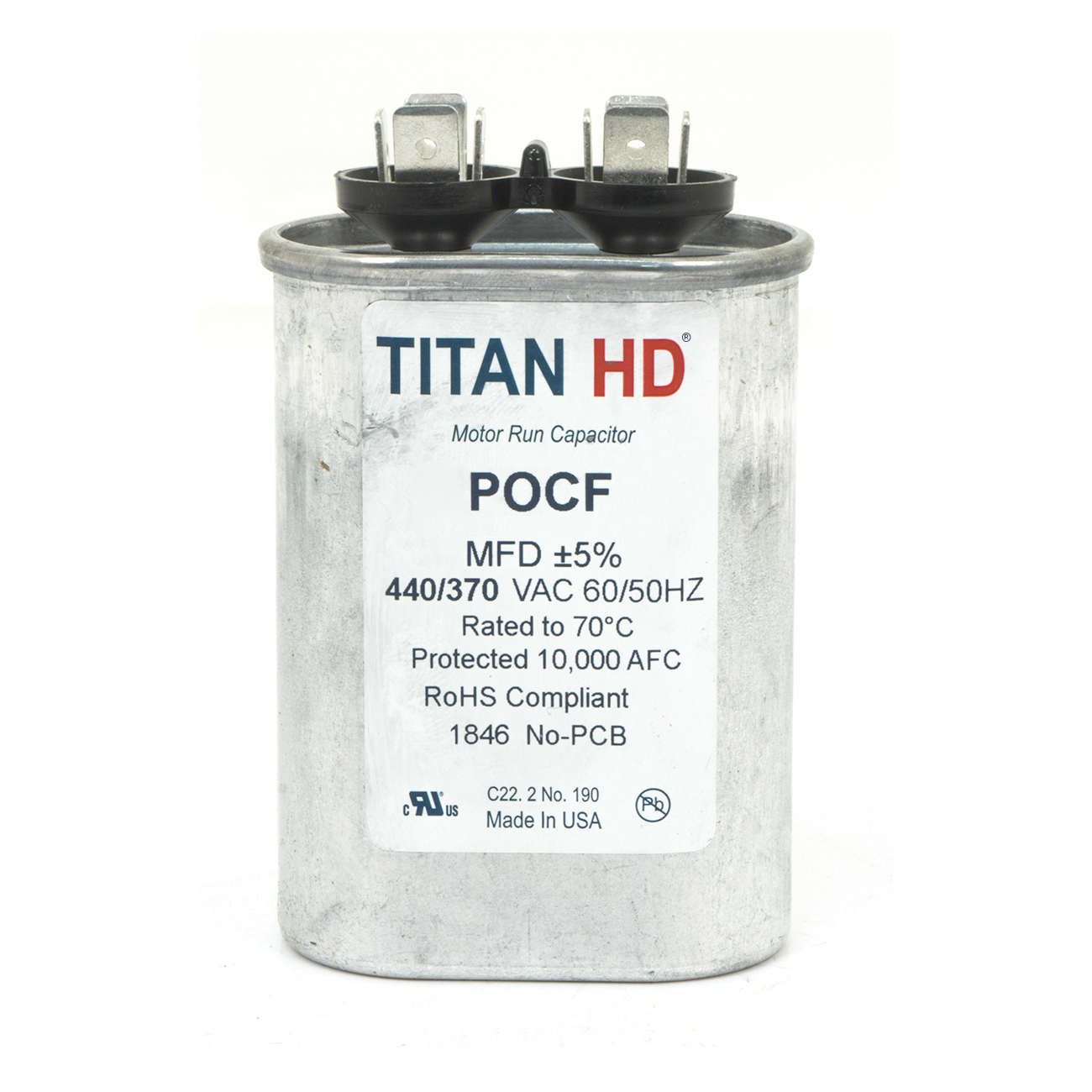

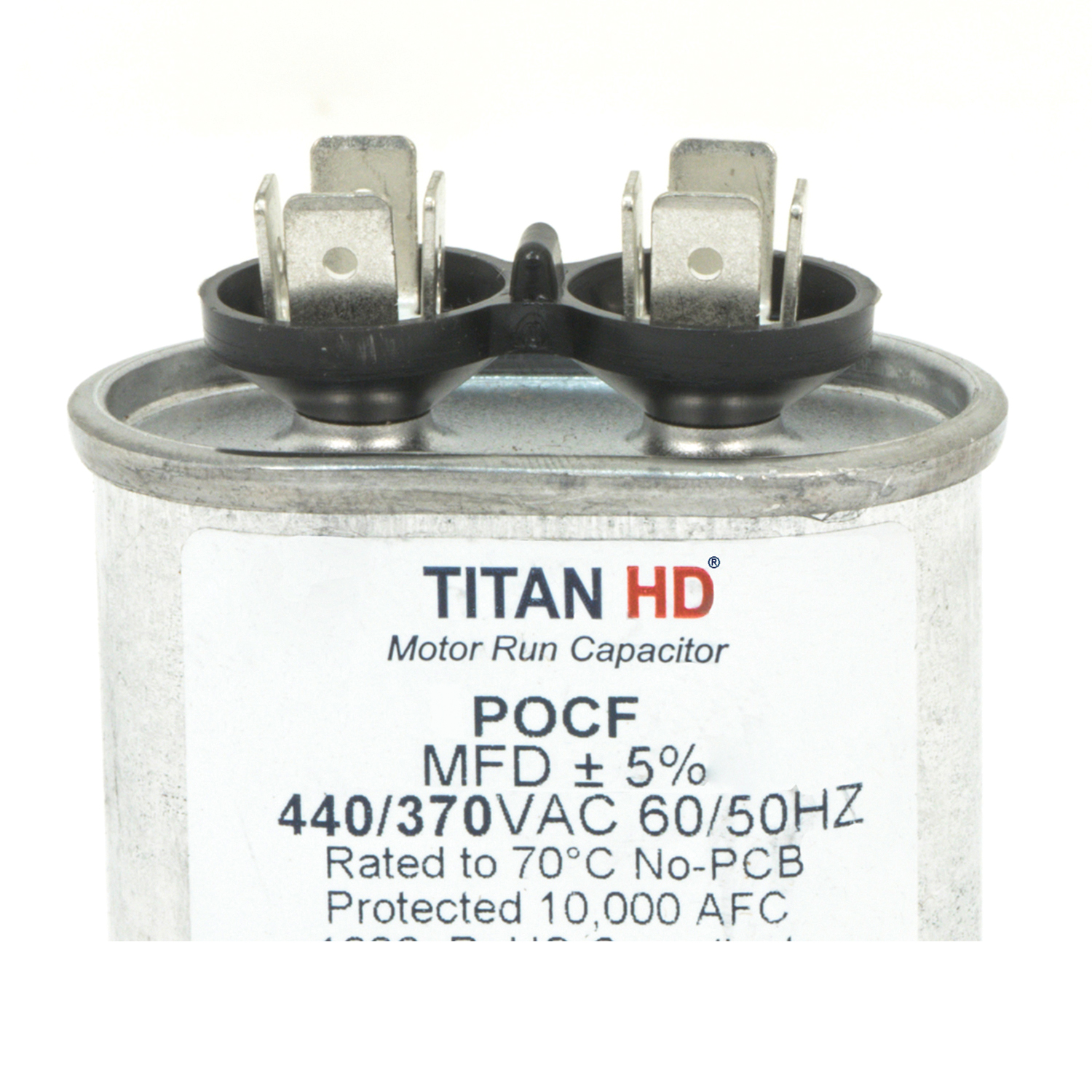

TITAN HD® POCF25B Motor Run Capacitor, MFD Rating: 25 uF, 440/370 VAC, Oval, 2.88 in H, 2 in W, 1-1/4 in D

Average Life	:	60000 hr
Case Material	:	Aluminum
Depth	:	1-1/4 in
Domestic/Import	:	Domestic
Frequency Rating	:	50/60 Hz
Height	:	2.88 in
MFD Rating	:	25 uF
Series	:	POCF Series
Shape	:	Oval
Standard Tolerance	:	+/-10 %
Temperature Rating	:	-40 to 70 deg C
Voltage Rating	:	440/370 VAC
Width	:	2 in

TITAN HD® Motor Run Capacitor, Series: POCF Series, 25 uF MFD Rating, 440/370 VAC, 50/60 Hz, Oval Shape, 60000 hr Average Life, +/-10 % Standard Tolerance, -40 to 70 deg C, Aluminum Case, 2.88 in Height, 2 in Width, 1-1/4 in D, Domestic

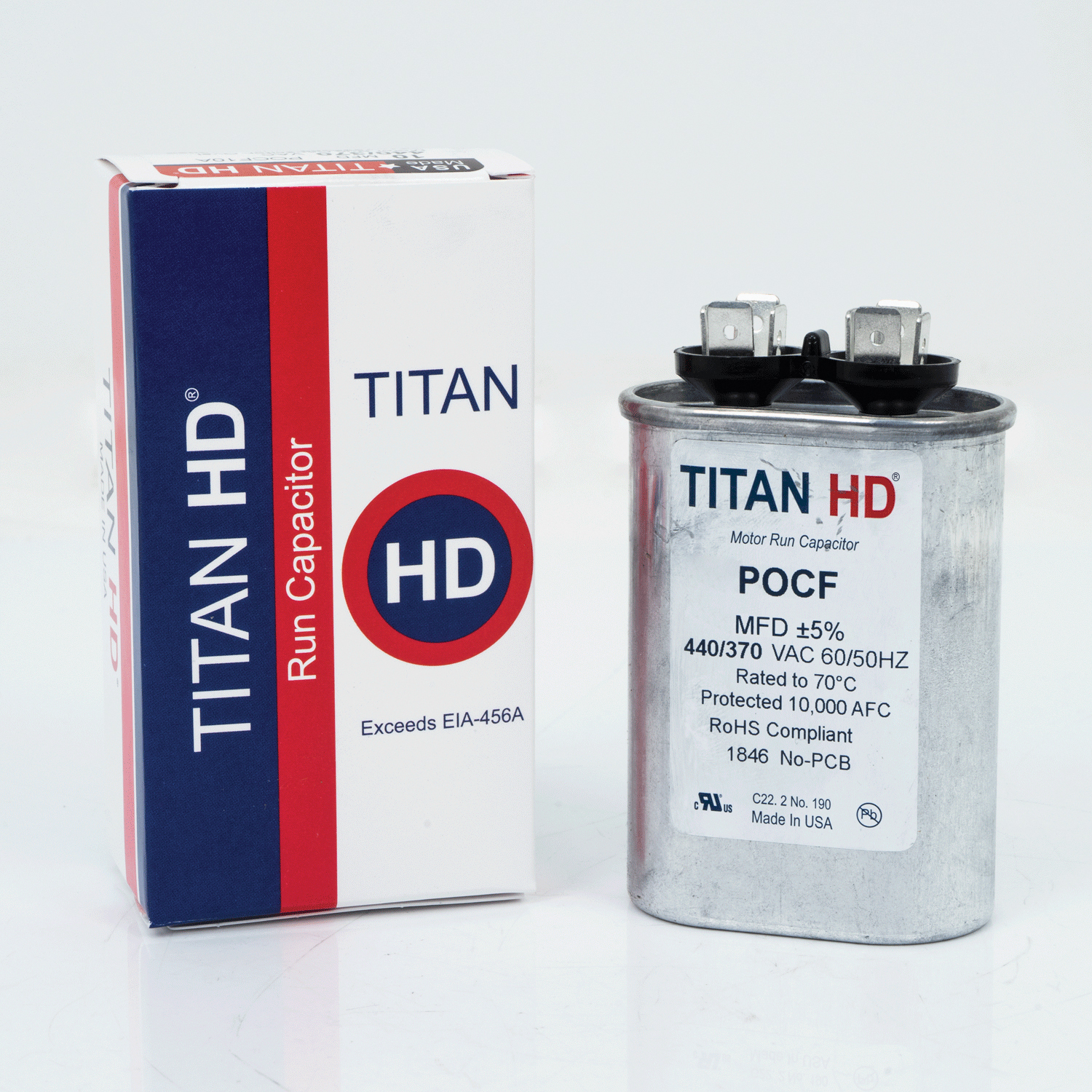

Made in USAFull product offering 234 ratings available!60000 hours operating lifeMeets the rigorous EIA-456-A industry standard for performance and qualityEye-catching packaging for retail environmentContains metalized polypropylene film technology for self-restoration in the event of a breakdownSophisticated UL-approved pressure sensitive interrupter to remove the capacitor from circuit at end of lifePatented, environmentally-friendly oil prevents corrosion and aids in optimum heat transfer
