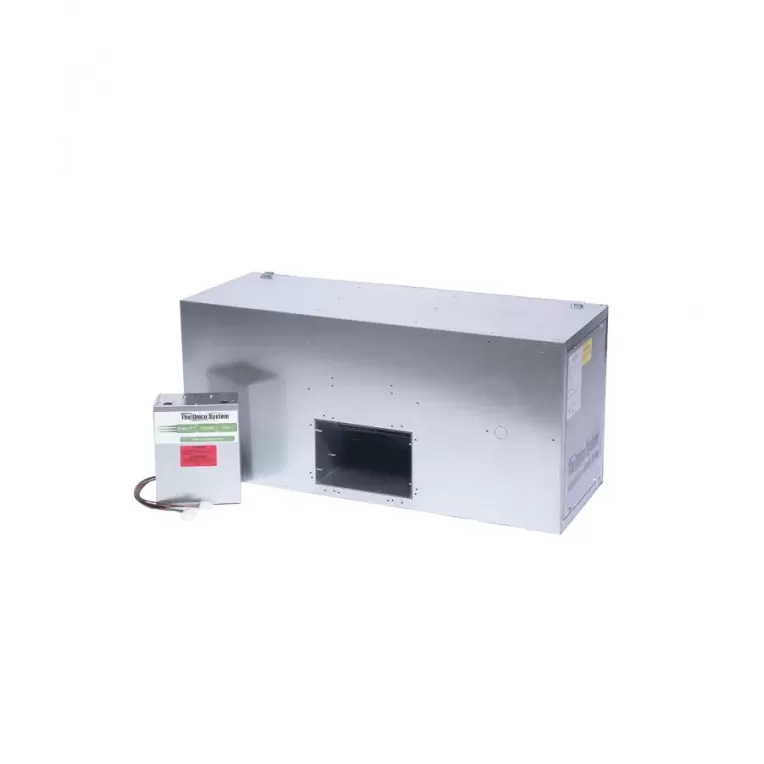

The Unico System M-Series M4860BL1-EC2 Blower Module, 750 W (Fan Motor), 208/230 V, 4.0-5.0 Tons, 48,000-60,000 BTU/hr, 1,250 CFM (Nominal), 1 Phase, Horizontal, Vertical Upflow
The Unico System M-Series M4860BL1-EC2 Blower Module, 750 W (Fan Motor), 208/230 V, 4.0-5.0 Tons, 48,000-60,000 BTU/hr, 1,250 CFM (Nominal), 1 Phase, Horizontal, Vertical Upflow
Manufacturer: The Unico System
Brand: The Unico System®
Part #: 387725
MPN: M4860BL1-EC2
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 6.1 A (FLA), 7.7 A (MCA) |
| BTU Rating | : | 48,000-60,000 BTU/hr |
| CFM Rating | : | 1,250 CFM |
| Configuration | : | Left Hand, Horizontal/Vertical, Upflow |
| Connection Size | : | 10" (Minimum Supply Duct) |
| Connection Type | : | Shaft Key (Motor), Screw Terminal (Electrical) |
| Dimensions | : | 17-1/2" H x 38" W x 14" D |
| Domestic/Import | : | Domestic |
| Finish | : | Galvanized Steel |
| Flow Rate | : | 1,250 CFM , 400-1,500 CFM (Range) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Model | : | M4860BL1-EC2 |
| Mounting Type | : | Horizontal, Vertical Upflow |
| Opening Size | : | 10" (Minimum Supply Duct) |
| Phase | : | 1 |
| Power Rating | : | 750 W (Fan Motor) |
| Pressure Rating | : | 1.5 in-WC |
| Refrigerant Type | : | R-410A, R-22, R-407C (Coil Compatibility) |
| Series | : | M-Series |
| Speed Rating | : | 400 to 1800 rpm |
| Suitable For Use With | : | Matching Modules: M4860CL1-B, M4860CL1-E, M4860CL1-C, M4860CL1-H, M4860V*, M4860R1; Unico System Small-Duct High-Velocity (SDHV) Systems |
| Temperature Rating | : | 150 °F (Maximum Air Temperature Over Motor) |
| Tonnage | : | 4.0-5.0 tons |
| Voltage Rating | : | 208/230 V |
The Unico System Blower Module, Model: M-Series, 750 W (Fan Motor), 208/230 V, 4.0-5.0 Tons, 48,000-60,000 BTU/hr, 1,250 CFM (Nominal), 1 Phase, Horizontal, Vertical Upflow, R-410A, R-22, R-407C (Coil Compatibility), 10" (Minimum Supply Duct) Connection Size, Shaft Key (Motor), Screw Terminal (Electrical), 150 °F (Maximum Air Temperature Over Motor) Temperature Rating, Galvanized Steel, 17-1/2" H x 38" W x 14" D Dimensions, Domestic, 50 Hz, 60 Hz, 6.1 A (FLA), 7.7 A (MCA)
Features a high-efficiency, variable-speed ECM motor for quiet operation and optimized airflow (400-1500 CFM).Includes the S.M.A.R.T. control board for intelligent system management and diagnostic feedback.Modular design allows for flexible installation in horizontal or vertical upflow configurations.Maintains constant airflow across a wide range of operating conditions.Programmable via laptop using Windows PC software for easy service and custom setup.Compatible with Unico System SDHV systems and matching modules M4860CL1-B, M4860CL1-E, M4860CL1-C, M4860CL1-H, M4860V*, M4860R1.UL Listed.
