| Amperage Rating | : | 17.2 A Rated Load, 96 A Locked Rotor |
| CFM Rating | : | 2200 cu-ft/min Condenser, 1400 cu-ft/min Blower |
| Coil Rating | : | Evaporator Coil - 4.14 sq-ft Face Area, 14 Fins/in, Condenser Coil - 12.99 sq-ft Face Area, 18 Fins/in |
| Compressor Type | : | Scroll |
| Cooling BTU Rating | : | 42000 Btu/hr |
| Dimensions | : | 73 in L x 47-5/16 in W x 36 in H |
| Drive Type | : | Direct |
| EER Rating | : | 10 |
| Finish | : | Galvanized, Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp Condenser, 3/4 hp Blower Motor |
| Material | : | Steel |
| Nominal Capacity | : | 3.5 ton |
| Phase | : | 1 |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1100 rev/min Condenser, 1050 rev/min Blower Motor |
| SEER Rating | : | 13 |
| Series | : | PAX3 |
| Sound Level | : | 77 dBA |
| Voltage Rating | : | 208 - 230 VAC |
| Wattage | : | 3636 W |

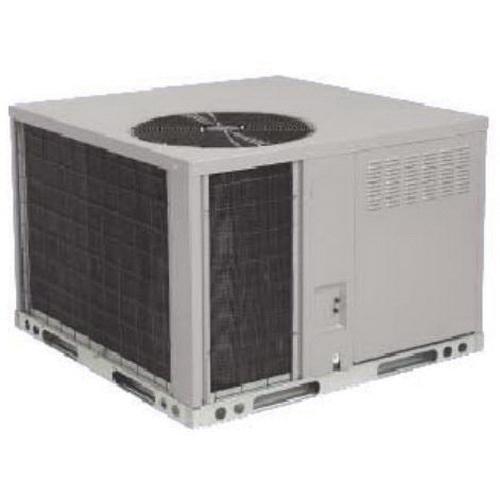

TEMPSTAR® Package Air Conditioner, Series: PAX3, 3.5 ton Nominal, 42000 Btu/hr Cooling BTU Rating, 208 - 230 VAC, 17.2 A Rated Load, 96 A Locked Rotor, 3636 W, 1/4 hp Condenser, 3/4 hp Blower Motor, 1100 rev/min Condenser, 1050 rev/min Blower Motor, 60 Hz, 1 -Phase, Scroll Compressor, 2200 cu-ft/min Condenser, 1400 cu-ft/min Blower, 10 EER, 13 SEER, R-410A Refrigerant, 77 dBA, Direct Drive, Evaporator Coil - 4.14 sq-ft Face Area, 14 Fins/in, Condenser Coil - 12.99 sq-ft Face Area, 18 Fins/in Coil Rating, Steel, Galvanized, Painted, 73 in L x 47-5/16 in W x 36 in H
- All models are equipped with high efficiency two-stage Copeland scroll compressor
- TXV controls refrigerant flow
- High efficiency X-13 indoor blower motor on all models
- High/low pressure switches for excellent compressor protection
- Galvanized, painted cabinet, one-piece weather-resistant top, access panels for easy service, side by side supply and return, heavy gauge base rails
- Triple coated steel, consisting of a polyester top coat, a urethane primer coat preceded by an oxide pre-treatment
- Integral base rails with fork-lift access, holes provided for lifting lugs makes rooftop installation easier
- The condenser coil has a sturdy wire inlet grille and UV rated vinyl mesh installed on the surface of the coil for additional protection
- Advanced air management system for quieter operation
- Combination electric cooling and electric heat, self-contained for year-round comfort, systems installed on rooftop or ground level, the unit is shipped in the horizontal position and can easily be converted to down flow
- Externally mounted gauge ports allows for more accurate reading of operating conditions while servicing
- Electrical controls located behind one exterior panel for easier maintenance
- Slip in electrical heat from 5 - 20 kW
- 5 years limited warranty, five-years parts limited warranty (including compressor and coils)
- No heat (000)
- Sales model digit
