| Amperage Rating | : | 2 A |
| BTU Rating | : | 36000 Btu/hr |
| CFM Rating | : | 1200 cfm |
| Connection Size | : | 3/8 in, 3/4 in |
| Connection Type | : | FNPT x Sweat |
| Dimensions | : | 43-3/16 in H x 22-1/8 in W x 18-3/8 in D |
| Face Area | : | 3.47 sq-ft |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Number of Rows | : | 3 |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-22 |
| Series | : | FSA Series |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 208/230 V |

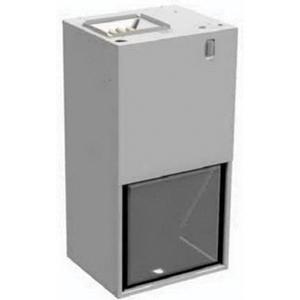

TEMPSTAR® Apartment Fan Coil, Series: FSA Series, 36000 Btu/hr, 208/230 V, 2 A, 1/3 hp HP Rating, 60 Hz, 1 ph, 1200 cfm CFM Rating, 3 ton, R-22, 3/8 in, 3/4 in, FNPT x Sweat, 3 Rows, 3.47 sq-ft Face Area, Galvanized, 43-3/16 in H x 22-1/8 in W x 18-3/8 in D
- TXV metering device
- 22 in W galvanized steel cabinet fits between studs (24 in stud spacing)
- All electrical and refrigerant lines enter through top of cabinet
- Service access through front of cabinet
- Primary and secondary drain fittings exit bottom, left or right side of cabinet
- Air filter factory supplied with all model
- Copper tube/aluminum fin coil
- 5 A automotive-type fuse on control board
- Time delay relay (TDR) programmed in motor
- Units tested and certified by manufacturer to achieve a 2% or less leakage rate at 1 in water column
- 10 in Dia x 6 in W blower wheel, direct drive blower
- Wavy lanced bare aluminum fin
- Standard two speed PSC motor
- Sales code
- 20 x 20 x 1 in filter size
