| AFUE Rating | : | 80 % |
| Amperage Rating | : | 13.1 A |
| Blower Size | : | 11 in Dia x 11 in W |
| CFM Rating | : | 2000 cfm |
| Cabinet Dimensions | : | 24-1/2 in W x 29 in D x 33-1/3 in H |
| Configuration | : | Multi-Position |
| Connection Type | : | 1/2 in NPT |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1 hp at 1050 rpm |
| Input BTU Rating | : | 132000 Btu/hr |
| Material | : | Steel |
| Model | : | F8MXN |
| Number of Burners | : | 6 |
| Phase | : | 1 ph |
| Temperature Rise | : | 40 to 70 deg F |
| Transformer Rating | : | 40 VA at 24 VAC |
| Voltage Rating | : | 115 VAC |

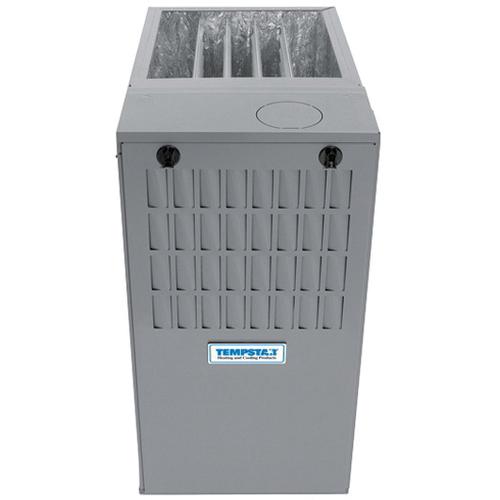

TEMPSTAR® Gas Furnace, F8MXN Model, 132000 Btu/hr Input BTU Rating, 115 VAC, 13.1 A, 2000 cu-ft/min, 1 hp at 1050 rev/min, 80% AFUE, 1 -Phase, 60 Hz, Configuration: Multi-Position, 1/2 in NPT Connection, Natural Gas Fuel, 6 -Burner, 11 in W x 11 in Dia Blower Size, 24-1/2 in W x 33-1/3 in H x 29 in D Cabinet Dimensions, 40 V-A at 24 VAC Transformer, Steel, 40 - 70 deg F Rise
- Supports two-stage cooling units
- Flame roll-out sensors standard
- Dehumidification feature in cooling
- 24 VAC humidifier terminal and electronic air cleaner terminal
- Certified to leak 2% or less of nominal air conditioning cu-ft/min delivered when pressurized to 1 in water gauge with all present air inlets, air outlets and condensate drain port(s) sealed
- Tougher - ECM blower motor, adjustable heating blower off delay, factory set blower on delay, RPJ aluminized steel heat exchanger, high temperature limit control prevents overheating, direct ignition with silicon nitride igniter, one-piece pre-printed steel cabinet
- Quieter in shot burners, insulated blower compartment
- Innovative knobs for easy door removal and secure attachment
- Factory shipped for natural gas, with propane gas conversion kits available
- Three position vent elbow capability
- Through the casing flue pipe for counterflow applications
- Masonry chimney adapter available
- Solid state time operation heating blower control
- SPST limit control switch
