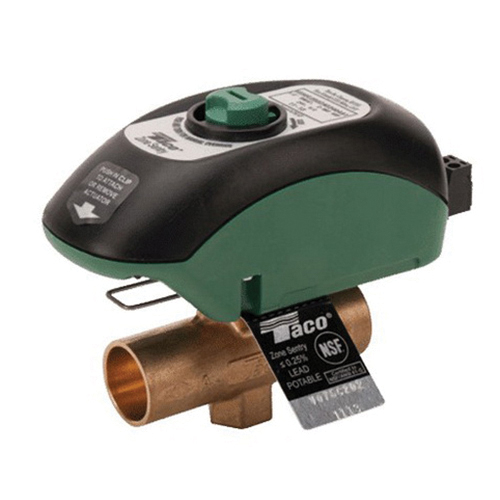

Taco Comfort Solutions® Z075T2-3 Potable Water Zone Valve, 3/4 in, NPT, 10.3 Cv, Brass
Taco Comfort Solutions® Z075T2-3 Potable Water Zone Valve, 3/4 in, NPT, 10.3 Cv, Brass
| Amperage Rating | : | 0.5 A |
| Configuration | : | Normally Open, Normally Closed |
| Connection Type | : | NPT |
| Dimensions | : | 60.3 in W |
| Disc Material | : | EPDM |
| Flow Coefficient (Cv) | : | 10.3 Cv |
| Material | : | Brass |
| Nominal Size | : | 3/4 in |
| Number of Ways/Position | : | 2-Ways |
| Packing Material | : | Brass |
| Power Consumption | : | 11.44 W, 0.48 A |
| Power Rating | : | 1.44 W |
| Pressure Rating | : | 300 psi |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | -7 to 104 deg C |
| Trim Material | : | Brass |
| VA Rating | : | 40 VA |
| Voltage Rating | : | 24 VAC |
The Taco zone Sentry® zone valve enhances the overall performance of any zone valve system. The unique patented technology in the zone sentry utilizes a microcircuit-based logic to control a gear driven electronic actuator which drives a ball valve-based body design. All this adds up to a zone valve that leads the industry in energy efficiency, flow capacity (Cv), shut-off pressure rating, ease of installation, diagnostic capability and the number of valves (12) that can be use on a standard 40 VA transformer.
Taco Comfort Solutions® Potable Water Zone Valve, 3/4 in Nominal, NPT Connection, Number of Ways/Position: 2-Ways, 300 psi, 10.3 Cv Flow Coefficient (Cv), Brass Stem, Brass Trim, Brass Packing, EPDM Disc, PTFE Seat, Brass, 11.44 W, 0.48 A Power Consumption, Normally Open, Normally Closed, 0.5 A, 24 VAC, 1.44 W, VA Rating: 40 VA, -7 to 104 deg C, 60.3 in W
- Universal installation orientation
- Up to 12 valves on one 40 VA transformer
- Multi-function LED assists with troubleshooting
- Easy to wire quick-connections
- Bi-directional flow
- The actuator mounts on the valve in either direction
- Quick release actuator mounting clip
- Manual override button
- Positional indicator shows the ball valves actual position
