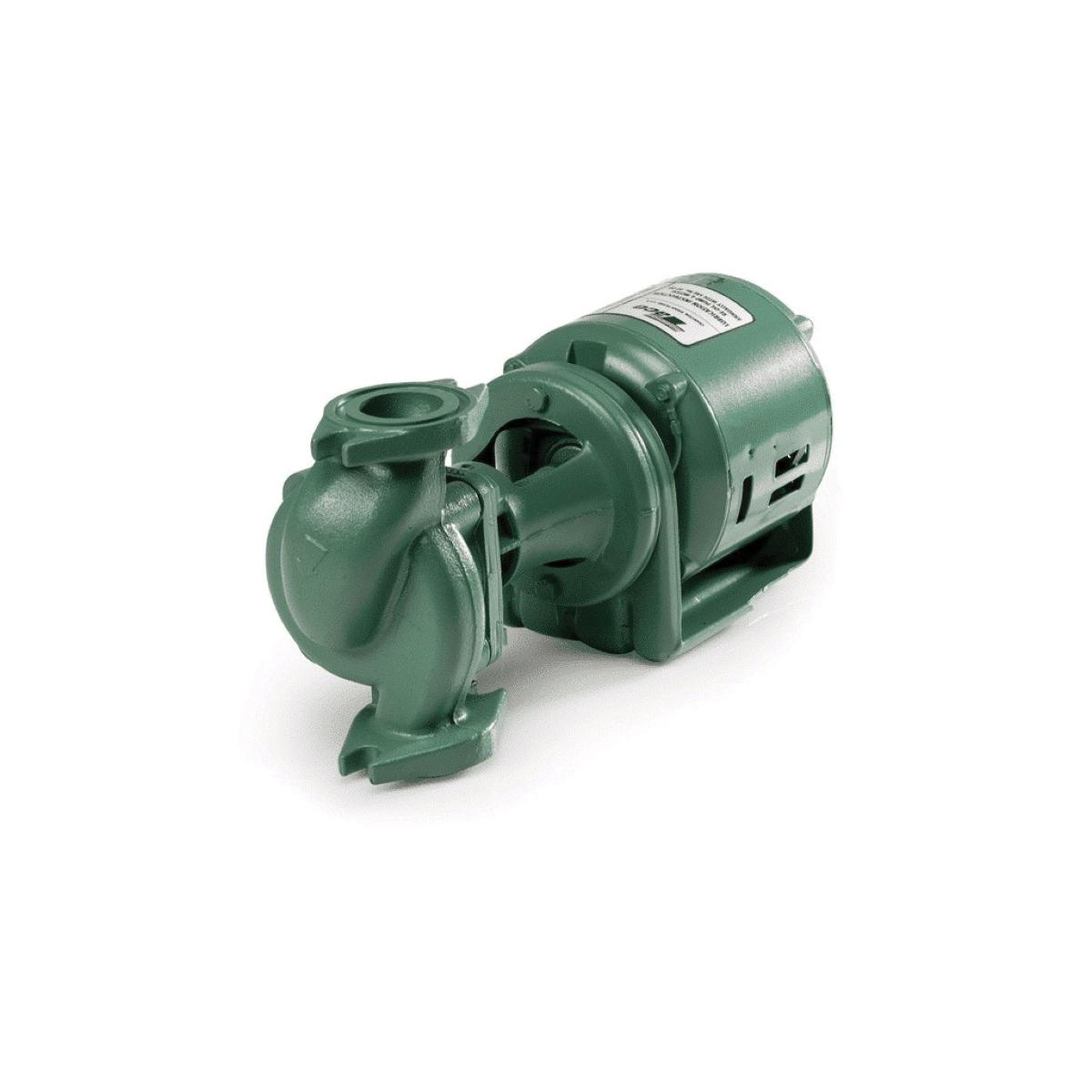

Taco Comfort Solutions® 110-120 Series 110B In-Line Circulator, 0 to 68 gpm, 115 VAC, 60 Hz, 125 psi Max Pressure, Iron
Taco Comfort Solutions® 110-120 Series 110B In-Line Circulator, 0 to 68 gpm, 115 VAC, 60 Hz, 125 psi Max Pressure, Iron
| Additional Information | : | Split Phase Motor |
| Bearing Type | : | Sleeve |
| Connection Size | : | 3/4 to 1-1/2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 14-5/8 in L x 7-7/8 in W |
| Flow Rate | : | 0 to 68 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/12 hp |
| Material | : | Iron |
| Maximum Head | : | 22 ft |
| Maximum Pressure | : | 125 psi |
| Motor Speed Rating | : | 1725 rpm |
| Mounting Type | : | Resilient |
| Phase | : | 1 ph |
| Series | : | 110-120 Series |
| Temperature Rating | : | 240 deg F |
| Voltage Rating | : | 115 VAC |
Taco in-line circulators are designed to efficiently circulate heated or chilled water in residential or light commercial hydronic systems. These circulators may also be used for zoning large installations and are available in bronze or stainless steel construction for domestic hot water applications. In-line circulators demonstrate proven performance, dependability, quiet operation and long-lasting performance.
Taco Comfort Solutions® In-Line Circulator, 110-120 Series, 0 to 68 gpm Flow Rate, 22 ft Maximum Head, 115 VAC, 60 Hz, 125 psi Maximum Pressure, 1725 rpm Motor Speed Rating, 1/12 hp, 3/4 to 1-1/2 in Connection, Flanged Connection, 1 ph Phase, Resilient Mounting, 240 deg F, Sleeve Bearing, Iron, 14-5/8 in L x 7-7/8 in W, Additional Information: Split Phase Motor
- Resilient-mounted, split phase motor with built-in overload protector
- Equipped with sleeve bearings for quiet operation
- 1-piece non-ferrous impeller
- Stainless steel shaft
- Rugged bronze sleeve bearing
- 2-piece carbon/ceramic seal assembly
- Durable 1-piece spring coupling
