Taco Comfort Solutions® 00 Series 007 007-F7 Circulator Pump, 115 VAC, 60 Hz, 125 psi Max Pressure, 3250 rpm Motor, Iron

Taco Comfort Solutions® 00 Series 007 007-F7 Circulator Pump, 115 VAC, 60 Hz, 125 psi Max Pressure, 3250 rpm Motor, Iron

Manufacturer: TACO INC
Brand: Taco Comfort Solutions®
Part #: 381745
MPN: 007-F7
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Additional Information      :      Non-Metallic Impeller Material
Connection Size      :      1 in, 1-1/2 in, 1-1/4 in, 3/4 in
Connection Type      :      Flanged
Frequency Rating      :      60 Hz
HP Rating      :      1/25 hp
Material      :      Iron
Maximum Pressure      :      125 psi
Model      :      007
Motor Speed Rating      :      3250 rpm
Mounting Type      :      In-Line
Phase      :      1 ph
Series      :      00 Series
Temperature Rating      :      240 deg F
Voltage Rating      :      115 VAC

Taco Comfort Solutions® Circulator Pump, 00 Series, Model: 007, 115 VAC, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/25 hp, 1 in, 1-1/2 in, 1-1/4 in, 3/4 in Connection, Flanged Connection, 1 ph Phase, In-Line Mounting, 240 deg F, Iron, Additional Information: Non-Metallic Impeller Material

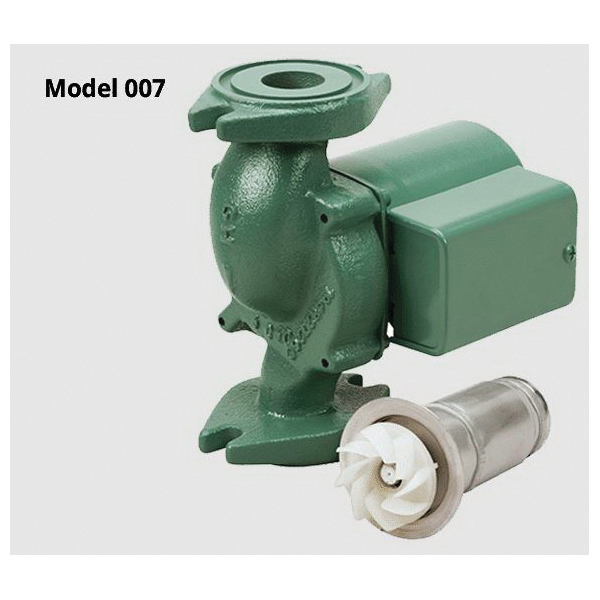

  • 00 Series pumps are cartridge-style, maintenance-free, wet-rotor, in-line circulators
  • 007F is a cast iron unit intended to pump water through closed loop systems for heating and cooling
  • Unique, replaceable stainless steel cartridge contains all of the pump's moving parts, which allows for easy field service
  • Cartridge circulator features carbon bearings that are self-lubricating, a ceramic shaft and no mechanical seal
  • The exclusive dirt barrier keeps dirty system water out of the bearing chamber reducing wear on the pump for longer life
  • Flange gaskets are included
