| Connection Type | : | NPT |
| Diameter | : | 2 in |
| Length | : | 1-13/16 in |
| Material | : | Die-Cast Zinc |
| Series | : | H Series |
| Temperature Rating | : | 105 deg C |
| Trade Size | : | 1 in |

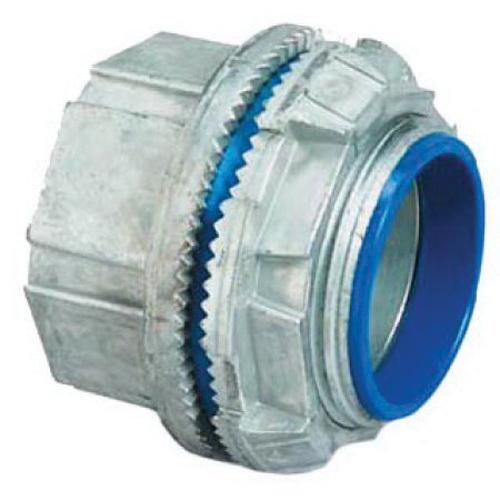

T&B® Hub Connector, H Series, 1 in Trade, NPT Connection, Die-Cast Zinc, 105 deg C, 1-13/16 in Length, 2 in Diameter
- Sealing ring and groove with innovative profile better than standard O-ring design
- Sealing ring is captivated in place before installation and resists buckling or slipping during installation
- The seal grove is designed for optimum compression of the sealing ring
- Sealing ring is designed to provide a complete 360 deg seal even when the conduit is not perpendicular with enclosure
- Locknut designed with peripheral slots and a hexagonal/angled spline spaced every 30 deg enables easy application of torque with wrench or hammer and screwdriver
- Sharper and deeper teeth on locknut and body designed for a more penetrating bite for improved bonding to enclosure
- Hexagon/splined body designed for fast, easy installation with wrench or hammer and screwdriver
- Precision machined tapered threads designed to create watertight union
- Insulated throat molded from 105 deg C rated thermoplastic, UL-94V0 flammability rated
- 1/4 in THK maximum panel
