| Flow Rate | : | 3 gph |
| Fluid Type | : | Oil, Kerosene |
| Inlet Connection Size | : | 1/4 in NPTF |
| Outlet Connection Size | : | 1/8 in |
| Pressure Rating | : | 100 to 200 psi |
| Speed Rating | : | 3450 rpm |
| Suitable For Use With | : | Oil Burners |

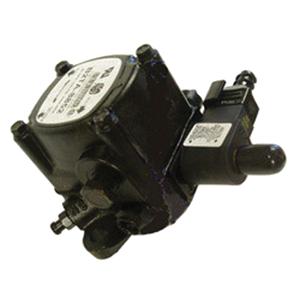

Suntec Fuel Oil Pump, 3 gph Flow Rate, 3450 rpm, 100 to 200 psi, 1/4 in NPTF Inlet Connection, 1/8 in Outlet Connection, Oil, Kerosene Fluid, For Use With: Oil Burners
- Right hand nozzle port location, left hand - rotation
- 1/8 Inch NPTF pressure gauge/bleeder valve port
- Valve function pressure regulation
- Counter clockwise rotation
- Pressure adjustable (100 - 150 psi low fire, 150 - 200 psi high fire)
- Suction height single pipe : 6 Inch Hg maximum vacuum, 2-pipe: 12 Inch Hg maximum vacuum, to prevent air separation from oil
- Contamination resistant control valve
- High contact ratio precision matched gears for long life
- Double-lip shaft seal
- Original diaphragm/cone valve
- Involute tooth-form gears for quiet operation
- 1 Number of Stages
- CW/RH Rotation
