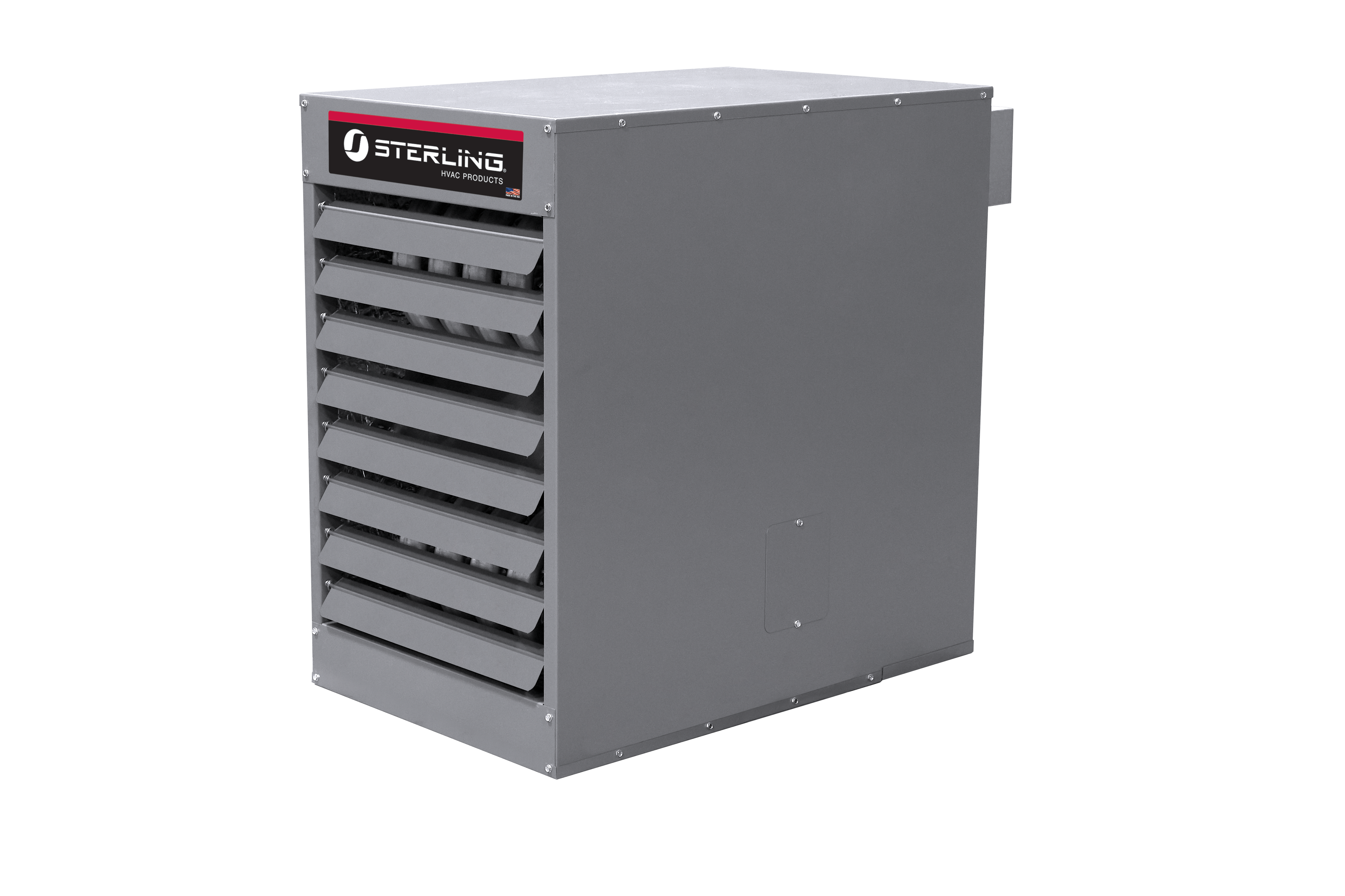

Sterling HVAC XF Series XF100A1NS1110 Propeller Unit Heater, 100,000 BTU/hr, Natural Gas, 115 V, 80 W (Motor), NPT, 1/2" (Gas Inlet) Connection Size, 1 Phase

Amperage Rating	:	6.4 A (FLA), 7.5 A (MCA)
BTU Rating	:	100,000 BTU/hr
CFM Rating	:	1,600 CFM
Connection Size	:	1/2" (Gas Inlet)
Connection Type	:	NPT
Dimensions	:	33-3/4" H x 25-1/4" W x 43-1/2" D
Domestic/Import	:	Domestic
Drive Type	:	Propeller
Efficiency	:	83% (Thermal)
Finish	:	Baked Enamel
Frequency Rating	:	60 Hz
Fuel Type	:	Natural Gas
HP Rating	:	1/10 HP
Ignition Type	:	Direct Spark
Material	:	Steel (Cabinetry), Aluminized Steel (Heat Exchanger)
Model	:	XF100A1NS1110
Motor Type	:	SP, ODP
Mounting Type	:	Suspended Mount
Number of Fans	:	1
Number of Stages	:	1
Phase	:	1
Power Rating	:	80 W (Motor)
Rotational Speed	:	1,050 RPM
Vent Size	:	5 "
Voltage Rating	:	115 V

Sterling HVAC Propeller Unit Heater, Model: XF Series, 100,000 BTU/hr, Natural Gas, 115 V, 80 W (Motor), NPT, 1/2" (Gas Inlet) Connection Size, 1 Phase, 83% (Thermal) Efficiency, Direct Spark, 5" Vent Size, Suspended Mount, 1,600 CFM, 1 Fan(s), SP, ODP, 1/10 HP, 1,050 RPM, Propeller, Steel (Cabinetry), Aluminized Steel (Heat Exchanger), 33-3/4" H x 25-1/4" W x 43-1/2" D Dimensions, Baked Enamel Finish, Domestic, 60 Hz, 6.4 A (FLA), 7.5 A (MCA), 1

Features 83% thermal efficiency for cost-effective heating.Durable 20-gauge aluminized steel tubular heat exchanger provides long service life.Convertible venting design allows installation flexibility for standard or separated combustion.Direct spark ignition system ensures reliable operation and fast heat delivery.Includes individually adjustable horizontal louvers for precise airflow control.Rear burner access and main control panel simplify service and maintenance.ETL certified for both Category I and III vertical or horizontal venting.Backed by a 10-year warranty covering the heat exchanger, flue collector, and burner.
