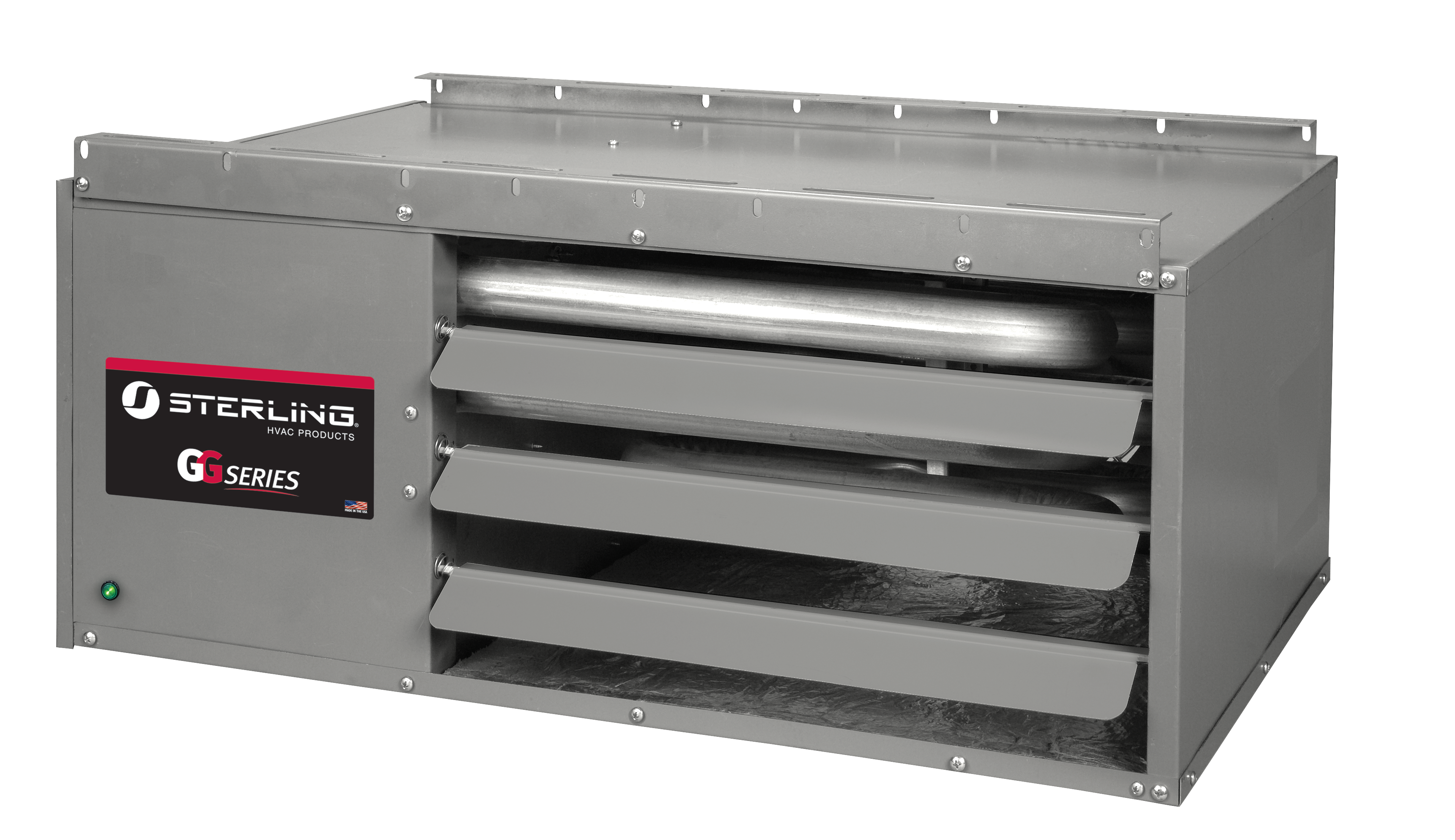

Sterling HVAC GG Series Low Profile Unit Heater, 105,000 BTU/hr (Input), 86,100 BTU/hr (Output), Natural Gas, 115/120 V, 75 W (Motor), NPT, 1/2" Connection Size, 1 Phase
Sterling HVAC GG Series Low Profile Unit Heater, 105,000 BTU/hr (Input), 86,100 BTU/hr (Output), Natural Gas, 115/120 V, 75 W (Motor), NPT, 1/2" Connection Size, 1 Phase

Sterling HVAC GG Series Low Profile Unit Heater, 105,000 BTU/hr (Input), 86,100 BTU/hr (Output), Natural Gas, 115/120 V, 75 W (Motor), NPT, 1/2" Connection Size, 1 Phase

Sterling HVAC GG Series Low Profile Unit Heater, 105,000 BTU/hr (Input), 86,100 BTU/hr (Output), Natural Gas, 115/120 V, 75 W (Motor), NPT, 1/2" Connection Size, 1 Phase

Manufacturer: Sterling HVAC Products
Brand: STERLING
Part #: 387202
MPN: GG105A1NSA11
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      6.4 A
BTU Rating      :      105,000 BTU/hr (Input), 86,100 BTU/hr (Output)
CFM Rating      :      1,300 CFM
Connection Size      :      1/2 "
Connection Type      :      NPT
Dimensions      :      23-9/16" H x 30" W x 26-3/8" D
Domestic/Import      :      Domestic
Efficiency      :      82% (Thermal)
Fan Size      :      16" Diam
Finish      :      Baked Enamel
Frequency Rating      :      60 Hz
Fuel Type      :      Natural Gas
HP Rating      :      1/10 HP
Ignition Type      :      Direct Spark
Material      :      20 Gauge Aluminized Steel (Heat Exchanger), 321 Stainless Steel (Burner Box), 20 Gauge Steel (Jacket Panels)
Model      :      GG105A1NSA11
Motor Type      :      ODP, SP
Mounting Type      :      Ceiling Mount, Wall Mount, Horizontal
Number of Fans      :      1
Number of Stages      :      1
Phase      :      1
Power Rating      :      75 W (Motor)
Rotational Speed      :      1,050 RPM
Vent Size      :      4" (Unit Connection), 5" (Separated Combustion Option)
Voltage Rating      :      115/120 V

Sterling HVAC Low Profile Unit Heater, Model: GG Series, 105,000 BTU/hr (Input), 86,100 BTU/hr (Output), Natural Gas, 115/120 V, 75 W (Motor), NPT, 1/2" Connection Size, 1 Phase, 82% (Thermal) Efficiency, Direct Spark, 4" (Unit Connection), 5" (Separated Combustion Option) Vent Size, Ceiling Mount, Wall Mount, Horizontal, 1,300 CFM, 16" Diam Fan Size, 1 Fan(s), ODP, SP, 1/10 HP, 1,050 RPM, 20 Gauge Aluminized Steel (Heat Exchanger), 321 Stainless Steel (Burner Box), 20 Gauge Steel (Jacket Panels), 23-9/16" H x 30" W x 26-3/8" D Dimensions, Baked Enamel Finish, Domestic, 60 Hz, 6.4 A, 1

Delivers 82% thermal efficiency for cost-effective heating.Certified for residential garage installations as well as commercial/industrial use (ANSI Z83.8).Supports standard power venting or field conversion to separated combustion for versatile installation.Features reliable direct spark ignition for quick and consistent heat delivery.Constructed with a durable 20-gauge aluminized steel tubular heat exchanger and a 321 stainless steel burner box.Includes an LP conversion kit standard for easy field switching from natural gas.Backed by a 10-year limited warranty on the heat exchanger.
