| Capacitance | : | 44 pF |
| Conductor Size | : | 16 AWG |
| Insulation Material | : | Polypropylene |
| Insulation Thickness | : | 0.006 in |
| Jacket Color | : | Gray |
| Jacket Material | : | PVC |
| Jacket Thickness | : | 0.017 in |
| Length | : | 500 ft |
| Number of Conductors | : | 2 |
| Outside Diameter | : | 0.185 in |
| Package Type | : | Reel |
| Solid/Stranded | : | Stranded |
| Strands | : | 19 |
| Temperature Rating | : | -20 to 75 deg C |
| Voltage Rating | : | 300 V |

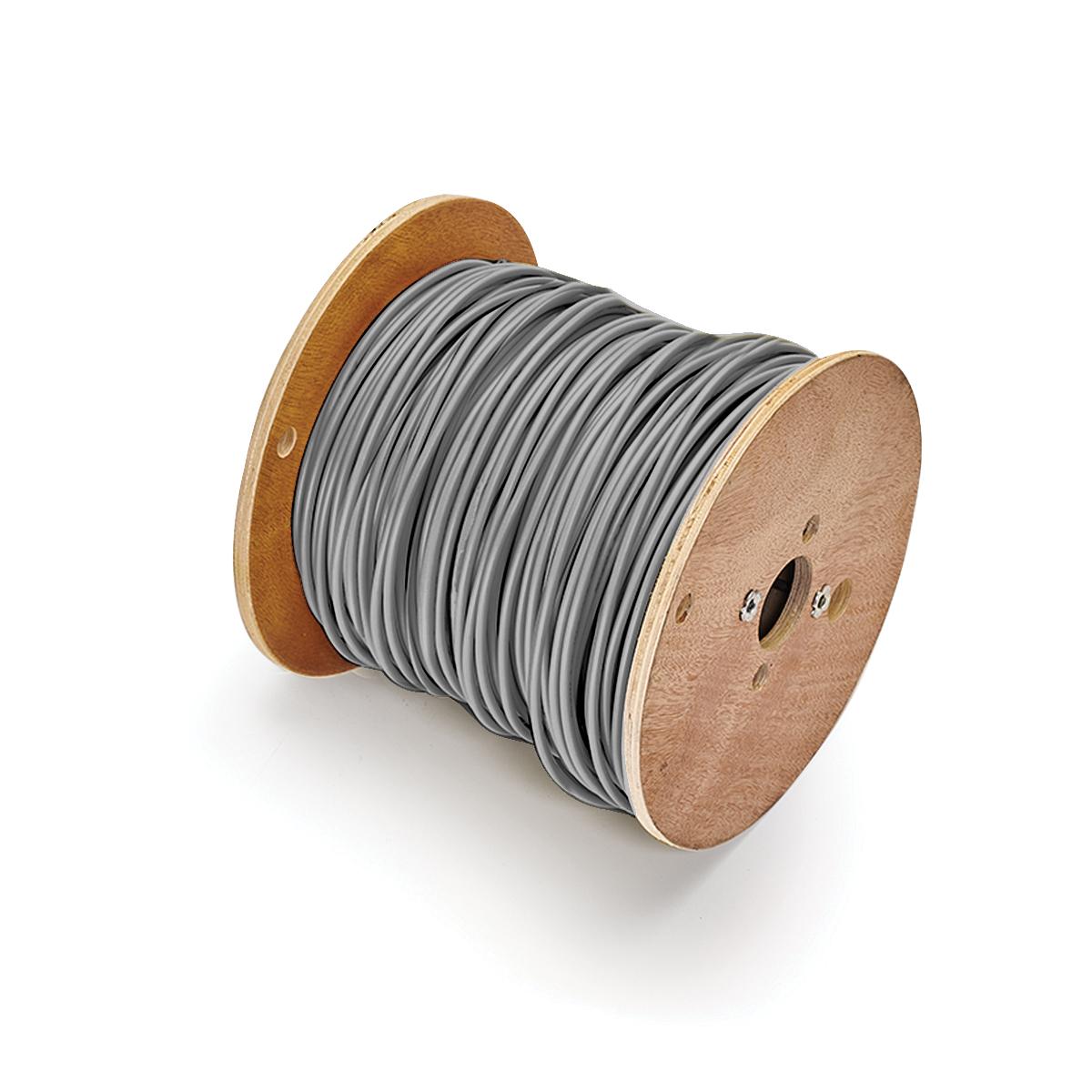

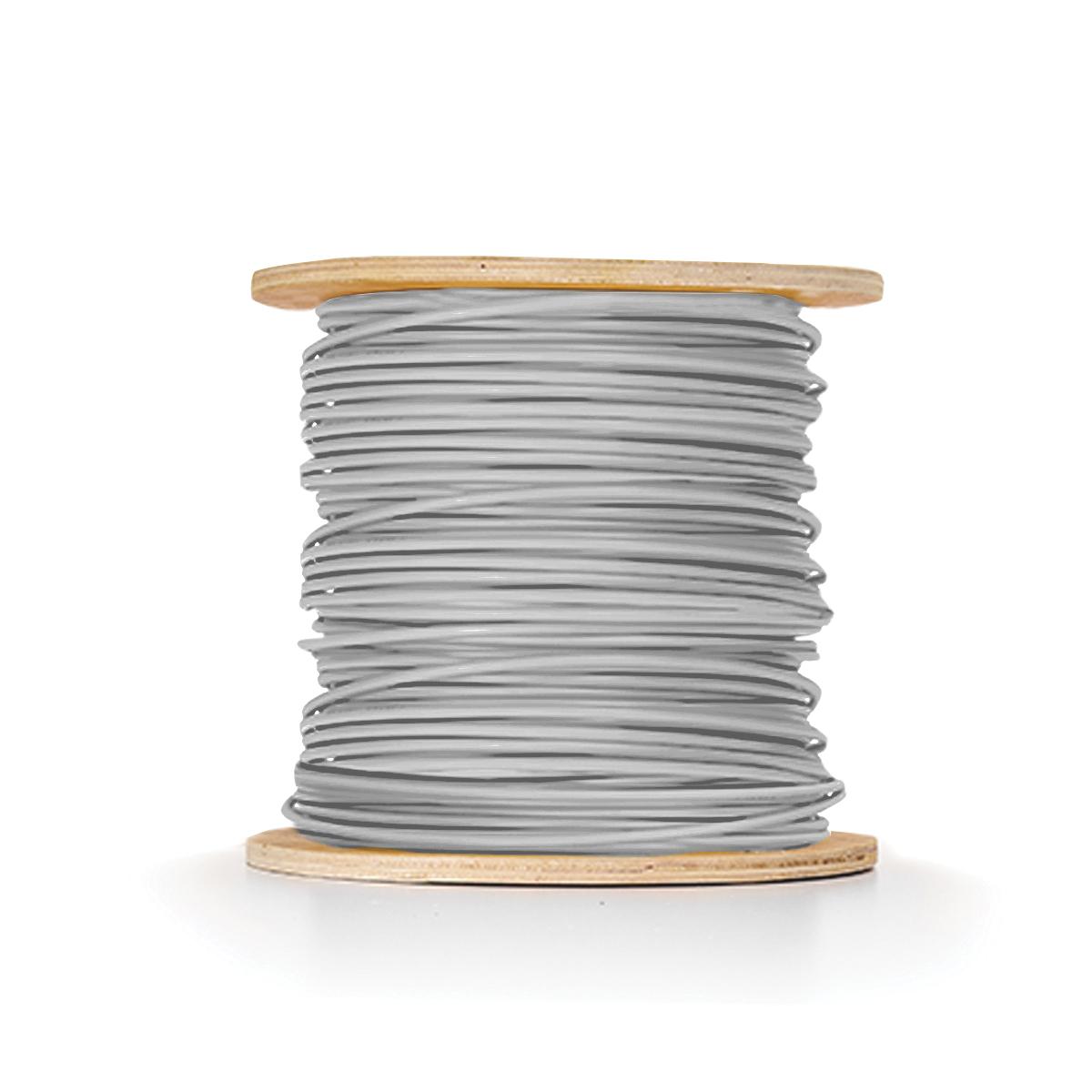

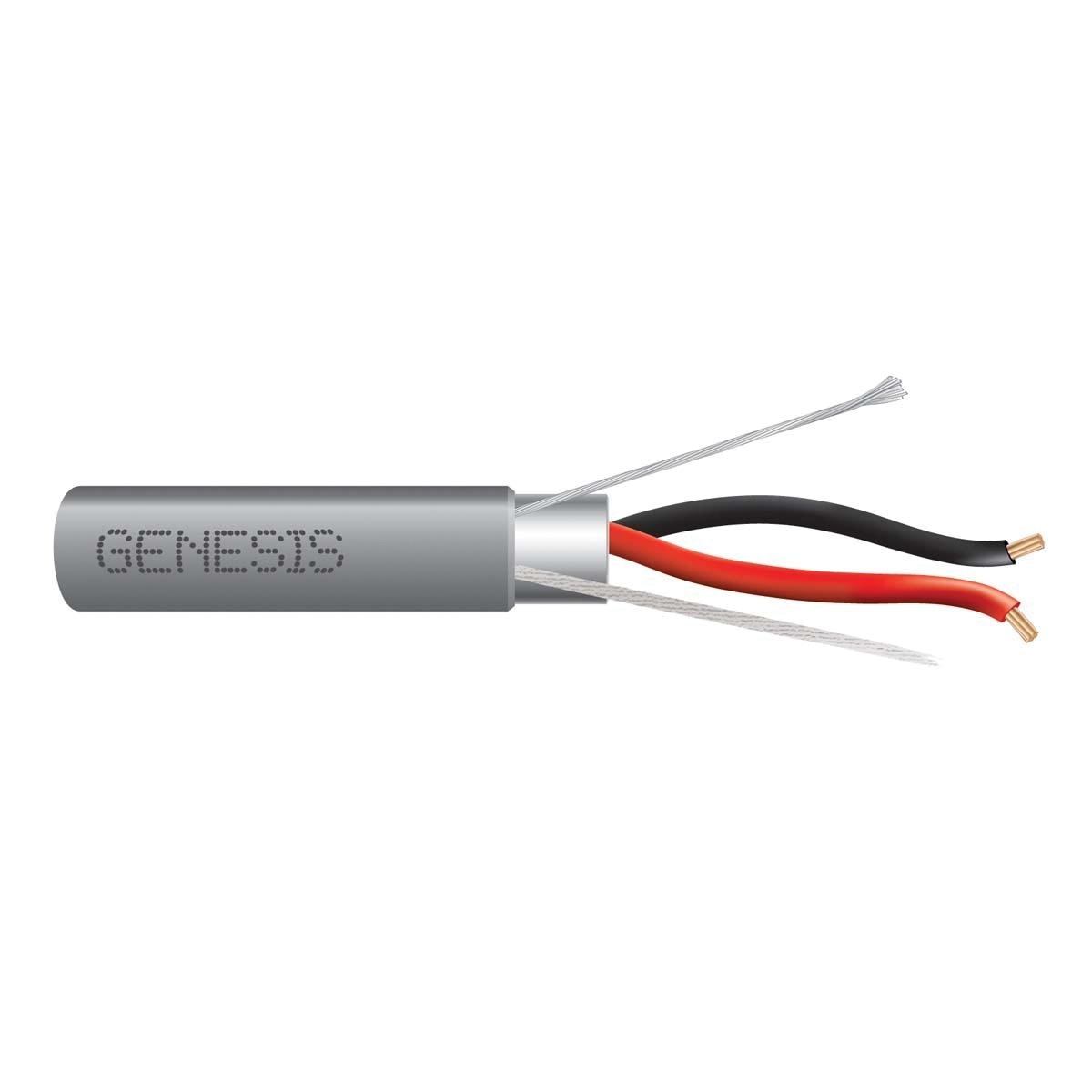

Southwire® Shielded Multi-Conductor Cable, 2 Conductors, 300 V, 16 AWG Conductor, Stranded, 19 Strands, Polypropylene Insulation, PVC Jacket, 0.006 in Insulation Thickness, 0.017 in Jacket Thickness, 44 pF, Reel Package, Gray Jacket, -20 to 75 deg C, 0.185 in Outside Diameter, 500 ft Length
- Bare Copper conductors for excellent conductivity and low voltage drop
- Polypropylene insulation
- Foil shield over all conductors
- PVC jacket
- Durable rip cord for efficient jacket stripping and removal
- Countdown® Length Markings for easy tracking of usage and remaining cable
- Rated for 300 Volts
- Rated for -20 deg C to 75 deg C
- Installed in a metal raceway that complies with 300.22(B)
- Supported by solid bottom metal cable trays with solid metal covers
- In risers
- Within buildings in other than air-handling spaces and risers
- Exposed to sunlight
