| Enclosure Type | : | Open Air Over |
| Frame | : | 48 |
| HP Rating | : | 1/4 hp |
| Insulation Class | : | B |
| Number of Speeds | : | 3 |
| Overall Width | : | 5-1/2 in |
| Phase | : | 1 ph |
| Shaft Size | : | 1/2 in Dia x 4 in L |
| Speed Rating | : | 1075 rpm |
| Voltage Rating | : | 208-230 V |

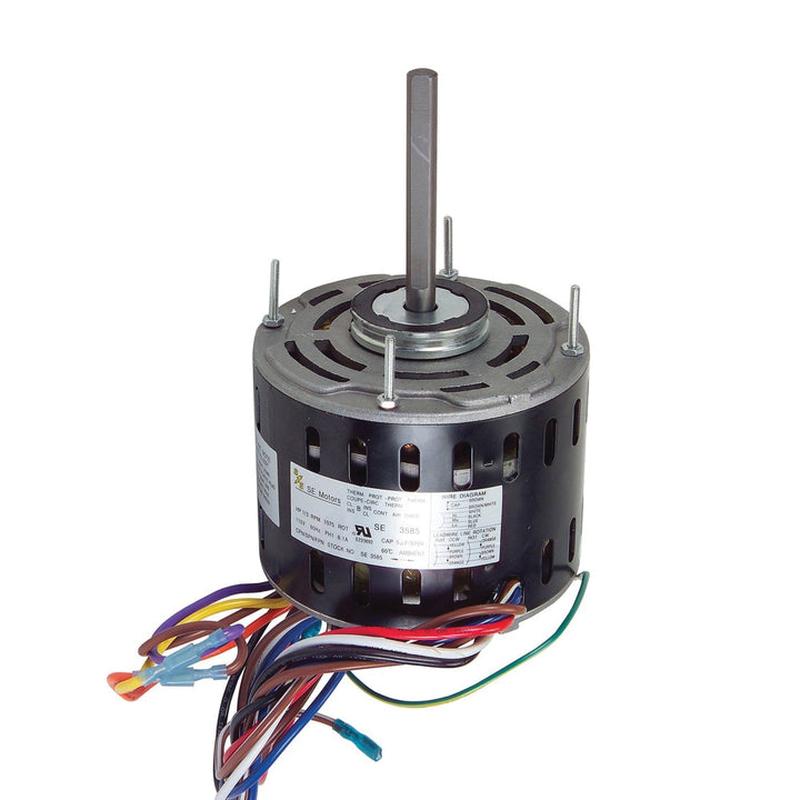

Smart Electric™ PSC Furnace Blower Motor, 1/4 hp, 208-230 V, 1 ph Phase, 1075 rpm, 3 Speed, Open Air Over Enclosure, 48 Frame, 1/2 in Dia x 4 in L Shaft, Insulation Class: B, 5-1/2 in Overall Width
- 4" length, 1/2" diameter shaft
- 2 1/4" resilient rings, 4 split rings
- All angle sleeve bearings
- Reversible rotation
- 3 speeds
- 48 FRAME
- 5 1/2" diameter
- 1/2" extended thru bolts
- Rheem mounting holes
