| Flow Coefficient (Cv) | : | 7.5 Cv |
| Material | : | Bronze |
| Nominal Size | : | 3/4 in |
| Number of Ways/Position | : | 2-Way |
| Packing Material | : | EPDM/PTFE |
| Pressure Rating | : | 250 psi |
| Seal Material | : | Stainless Steel |
| Seat Material | : | Stainless Steel |
| Series | : | VB-7200 Series |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 20 to 400 deg F |
| Trim Material | : | Stainless Steel |

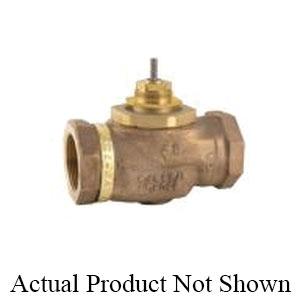

The Venta VB-7200 Series 1/2" - 2" 2-Way globe valves feature the industry's highest performance, most energy efficient control valves for chilled water, hot water and steam applications. The Venta seal design provides tight close-off to ensure energy efficiency and provides a high tolerance to high differential pressures. Venta globe valves are used for two-position, floating or proportional control applications. Valve assemblies may be purchased from the factory or purchased separately, requiring a linked actuator.
Schneider Electric Venta Globe Valve, VB-7200 Series, 3/4 in Nominal, Number of Ways/Position: 2-Way, 250 psi, 7.5 Cv Flow Coefficient (Cv), Stainless Steel Stem, Stainless Steel Trim, EPDM/PTFE Packing, Stainless Steel Seat, Stainless Steel Seal, Bronze, 20 to 400 deg F
- High rangeability provides fine, accurate control for more efficient, responsive and comfortable regulation
- Tight sealing with ultra-low energy leakage on shutoff for energy conservation with soft seating
- High differential-pressure rating of up to 87 psi for reliable operation in demanding applications
- Very low Cv models (as low as 0.1) for precise control of small and light-load applications
- Multiple Cv and fitting choices to match loads and piping
- RoHS compliant product is environmentally friendly and meets ANSI, PED, CRN and other standards
- Stroke positions are suitable for all Schneider Electric actuators
- Stem strength exceeds: 600 lb. force on 2-Way and mixing valves, 300 lb. force on Diverting valves
