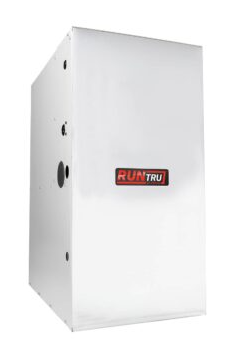

RunTru A952V080CU5SAD 5T 96 AFUE Condensing Two Stage Gas Furnance
RunTru A952V080CU5SAD 5T 96 AFUE Condensing Two Stage Gas Furnance
Manufacturer: Trane International Inc
Brand: RUNTRU® By Trane
Part #: 384914
MPN: A952V080CU5SAD
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| AFUE Rating | : | 96 % |
| AHRI Model Number | : | A952V080CU5S*** |
| Airflow Capacity | : | 5.0 Ton |
| Ampacity | : | 13.9/13.3 |
| Blower (Dia x W) (In) | : | 11 x 10 |
| Blower Drive | : | Direct |
| Blower FLA | : | 10.5/10 |
| Blower Fan Power | : | 120/1/60 |
| Blower Fan RPM | : | Variable |
| Blower Fan Speeds | : | Variable |
| Blower Type | : | X13 Constant Torque Motor |
| Burner Type | : | Inshot |
| Combustion Fan FLA | : | 0.66 |
| Combustion Fan Inducer Orifice | : | 0.88 |
| Combustion Fan Type | : | PSC |
| Combustion Fan-RPM | : | 3,300/2,600 |
| Communicating | : | No |
| Condensing | : | Yes |
| Configuration | : | Upflow, Horizontal |
| Dimensions | : | 34 x 21 x 28.75 |
| Drill Size LP Gas (Qty - Drill Size) | : | 4 - 56 |
| Drill Size Nat Gas (Qty - Drill Size) | : | 4 - 45 |
| ElecVolts | : | 120 |
| Energy Star Compliant | : | Yes |
| Equipment Application | : | Heating |
| Filter Height (In) | : | 21 |
| Filter Hi Vel. (No.-Size-Thk.) | : | 1 - 20 x 25 - 1 |
| Filter Size (In) | : | 20 x 25 |
| Filter Type Recommended | : | High Velocity |
| Filter Width In | : | 25 |
| Flue Size | : | 2 Round |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Fuse Rating | : | 15 A |
| Input BTU Rating | : | 80,000 Btu/hr |
| Model Number | : | A952 |
| Motor Type | : | ECM |
| Number of Stages | : | Two |
| Phase | : | 1 ph |
| Series | : | A952V |
| Specifications1 | : | Full Load Amperage (FLA):: 0.66|Gas Valve Type:: Redundant - 2-Stage|Heat Exchanger Guage (Fired):: 20|Heat Exchanger Type - Fired:: 409 Stainless Steel|Heat Exchanger Type - Unfired:: 29-4C Stainless Steel|HeatingCapacityStage1:: 52,000|HeatingCapacityStage2:: 80,000|Ignition Type:: Silicon Nitride Igniter|Line Size Gas:: 1/2|Max Amp Rating:: 13.9/13.3|Max Fuse:: 15 |
| Specifications2 | : | MOCP:: 15|Motor Type:: Variable|Nominal Efficiency:: 95% Condensing|Number of Burners:: 4|Number of Fan Motors:: 1|Number of Phase:: 1|Output BTUH:: Stage 1 = 50,600; Stage 2 = 77,500|Pilot Safety Device:: 120V Silicon Nitride Igniter|Power Supply:: 120/1/60|Series:: A952V|Stages:: 95% Condensing|Temperature Rise (Min-Max) F:: Stage 1 = 25 - 55; Stage 2 = 30 - 60|Tonnage:: 6.667 |
| Tonnage | : | 5.0 Ton |
| Voltage Rating | : | 115/120 V |
| Width | : | 21.0 in |
RunTru - A952V080CU5SAD, 5T, 96% AFUE, 80,000 BTU, 115V, ECM Variable Speed Motor, Upflow / Horizontal, Direct/Non-Direct Vent, Condensing Two Stage Gas Furnance
Up to 96% AFUE34” cabinet height on all modelsStainless steel primary and secondary heat exchangersmultiport inshot burners an integrated system control that continuously monitors for the presence of flameThe integrated control system display shows self diagnostic information to help troubleshoot if needed and a rain shield protects the control unit from condensateVariable Speed (ECM) Motor
