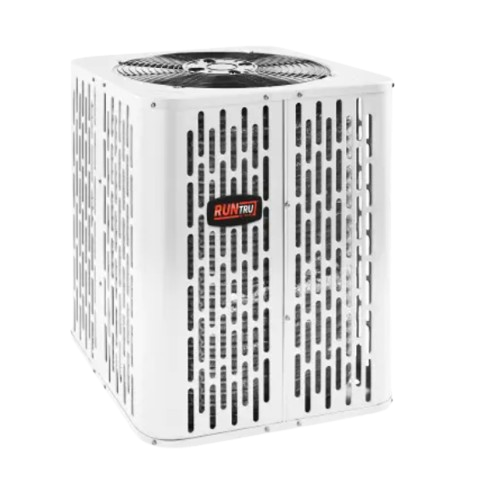

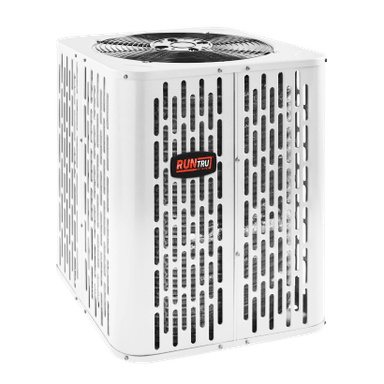

RunTru A5AC5024A1000A,A5AC5 - 2T, 15 SEER2, Single Stage Air Conditioner

BTU Rating	:	24,000 Btu/hr
MCA	:	14
Max Amps	:	25.0
Max Fuse	:	25 A
Model Number	:	A5AC5
Noise Level	:	71 dba
Nominal Capacity BTU Rating	:	24,000
Number of Stages	:	Single Stage
Phase	:	1.0 ph
Power Supply	:	208/230 V/1 Phase/60 Hz
Product Family Series	:	A5AC5
Refrigerant Type	:	R-454B
SEER2 Range	:	14.3
Sound Level	:	71 dBA
Stages	:	1
Tonnage	:	2.0 Ton
Voltage	:	208/230 V

RunTru A5AC5024A1000A,A5AC5 - 2T, 15 SEER2, 24,000 BTU, 208/230V, R454B, Single Stage Air Conditioner

15 Single-Stage Air Conditioner outdoor products using R-454B refrigerantNew TXV and refrigeration designs that are optimized for maximum performance     using the new refrigerantThe compressor features internal over temperature and pressure protection. Other features include: Centrifugal oil pump and low vibration and noise.The outdoor coil provides low airflow resistance and efficient heat transfer. The coil is protected on all four sides by louvered panels.Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish. The corner panels are prepainted. All panels are subjected to our 1,000 hour salt spray test.Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches. A factory supplied, field installed liquid line drier is standard.
