| Airflow CFM | : | 3,380 |
| BTU Cooling Rating | : | 36,000 Btu/hr |
| Blower Fan Speeds | : | 1 |
| Capacity (Kg) | : | 3 |
| Charging Specification Subcooling | : | 10 Deg. F |
| Coil Face Area (Sq-Ft) | : | 18.03 |
| Coil Rows | : | 1 |
| Coil Type | : | All Aluminum |
| Compressor Heat | : | No |
| Compressor LRA | : | 72.2 |
| Compressor RLA | : | 14.7 |
| Compressor Stages | : | Single Stage |
| Compressor Type | : | Scroll |
| EER2 | : | 11.7 |
| ElecHertz | : | 60 |
| ElecPhases | : | 1 |
| ElecVolts | : | 208-230 |
| FPI | : | 24 |
| Factory Charged | : | Yes |
| Factory Installed Start Components | : | No |
| Fan Diameter (In) | : | 27.5 |
| Fan Drive | : | Direct |
| Fan Motor FLA | : | 0.64 |
| Fan Motor HP | : | 1/8 |
| Fan Type | : | Propeller |
| Full Octave Sound Power[dB] | : | 84 at 63 Hz, 75 at 125 Hz, 70 at 250 Hz, 72 at 500 Hz, 67 at 1000 Hz, 62 at 2000 Hz, 57 at 4000 Hz, 50 at 8000 Hz |
| HSPF Rating | : | 7.8 |
| HSPF2 Range | : | 8.5 |
| HSPF2 | : | 7.5 |
| HSPF | : | 8.2 |
| Line Size Gas | : | 7/8 |
| Line Size Liquid | : | 3/8 |
| Liquid Line (OD) | : | 3/8 in |
| MCA | : | 19 |
| MOP | : | 30 |
| Material | : | Powder Painted Galvanized Steel; Aluminum Outdoor Coil |
| Max Fuse | : | 30 amps |
| Max SEER2 | : | 14.3 |
| Max SEER | : | 15 |
| Min Amp Rating | : | 19 |
| Min SEER | : | 14.0 |
| Motor (RPM) | : | 850 |
| Motor Power Rating | : | 208-230/1/60 |
| Number of Stages | : | Single |
| Phase | : | 1.0 ph |
| Refrigerant Type | : | R-410A |
| SEER2 Range | : | 8.5 |
| Series | : | A4HP4 |
| Sound Level | : | 76 dBA |
| Specifications1 | : | Number of Compressor:: 1|Number of Fan Motors:: 1|Outdoor Coil-Tube Size (In):: 3/8|Power Supply:: 208-230/1/60|Product Name:: Heat Pump|Refrigerant:: R-410A|Refrigerant Charge lbs:: 6|Refrigerant Control:: Expansion Valve|Refrigerant Type:: R-410A|Rows Per Inch:: 24|SEER:: 14 |
| Specifications2 | : | SEER2:: 14.3|Sound Level (dB):: 76|Sound Rating (dB):: 76 dB(A)|Stages:: 1|Standards:: AHRI Certified/ C ETL US|Tonnage:: 3 |
| Tonnage | : | 3 |
| Tonnage | : | 3.0 Ton |
| Volts | : | 208/230 V |

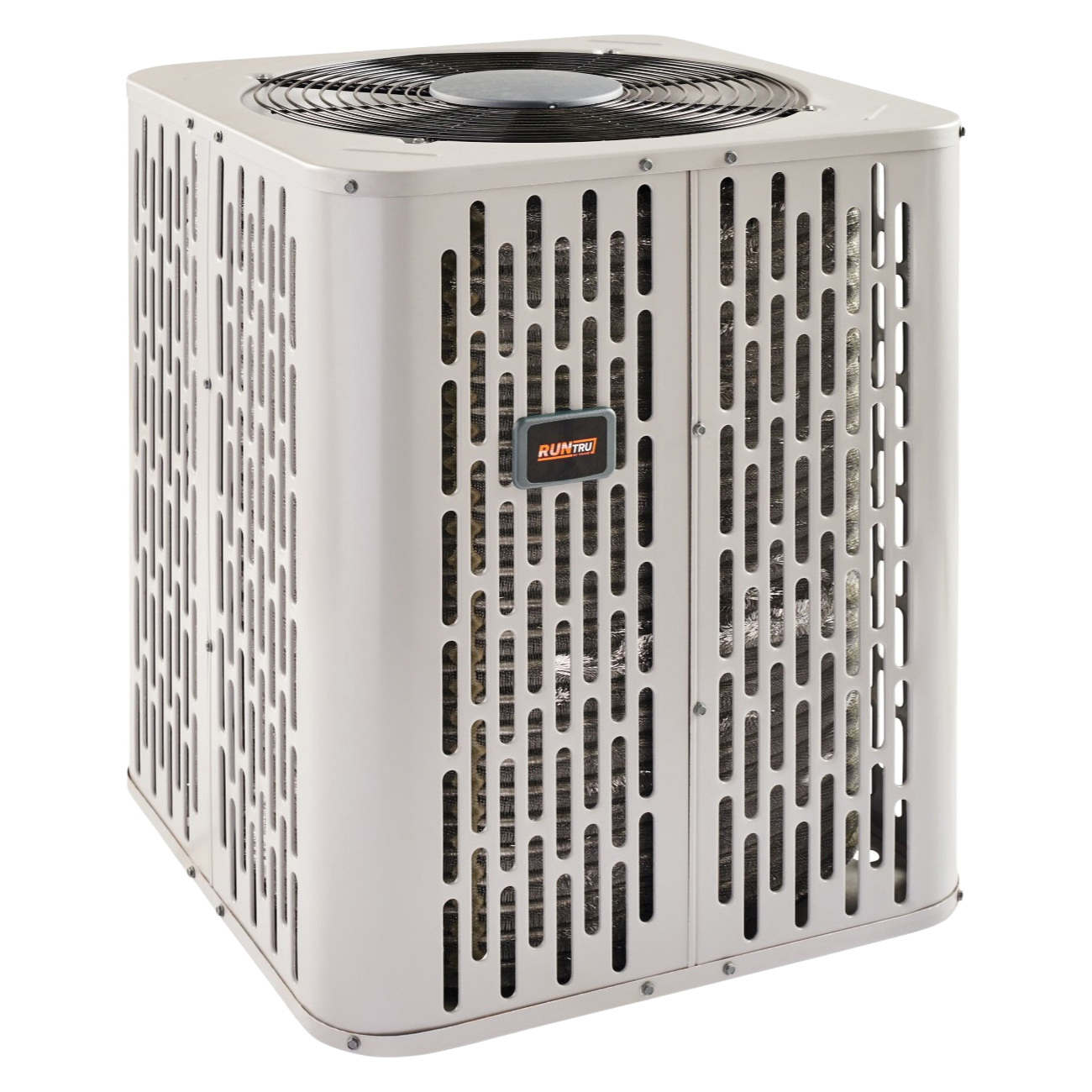

RunTru A4HP4036A1000B, 3T, 14 SEER, 36,000 BTU, 7.8 HSPF, 208/230V, Single Stage Heat Pump
All-aluminum coilsScroll compressorsSmaller size options for tighter spacesPre-painted steel cabinet & base pan
