Romex® NMB-8/2-W/G Non-Metallic Sheathed Cable, 600 V, 2-Conductor, 8 AWG Conductor, Stranded, 125 ft L, Black Jacket
Romex® NMB-8/2-W/G Non-Metallic Sheathed Cable, 600 V, 2-Conductor, 8 AWG Conductor, Stranded, 125 ft L, Black Jacket

Romex® NMB-8/2-W/G Non-Metallic Sheathed Cable, 600 V, 2-Conductor, 8 AWG Conductor, Stranded, 125 ft L, Black Jacket

Romex® NMB-8/2-W/G Non-Metallic Sheathed Cable, 600 V, 2-Conductor, 8 AWG Conductor, Stranded, 125 ft L, Black Jacket

Brand: Romex®
Part #: 38080
Customer Part #:
Conductor Material      :      Copper
Conductor Size      :      8 AWG
Insulation Color      :      Black/White
Insulation Material      :      PVC
Insulation Thickness      :      30 mil
Jacket Color      :      Black
Jacket Material      :      PVC
Jacket Thickness      :      30 mil
Length      :      125 ft
Number of Conductors      :      2
Solid/Stranded      :      Stranded
Strands      :      7
Voltage Rating      :      600 V

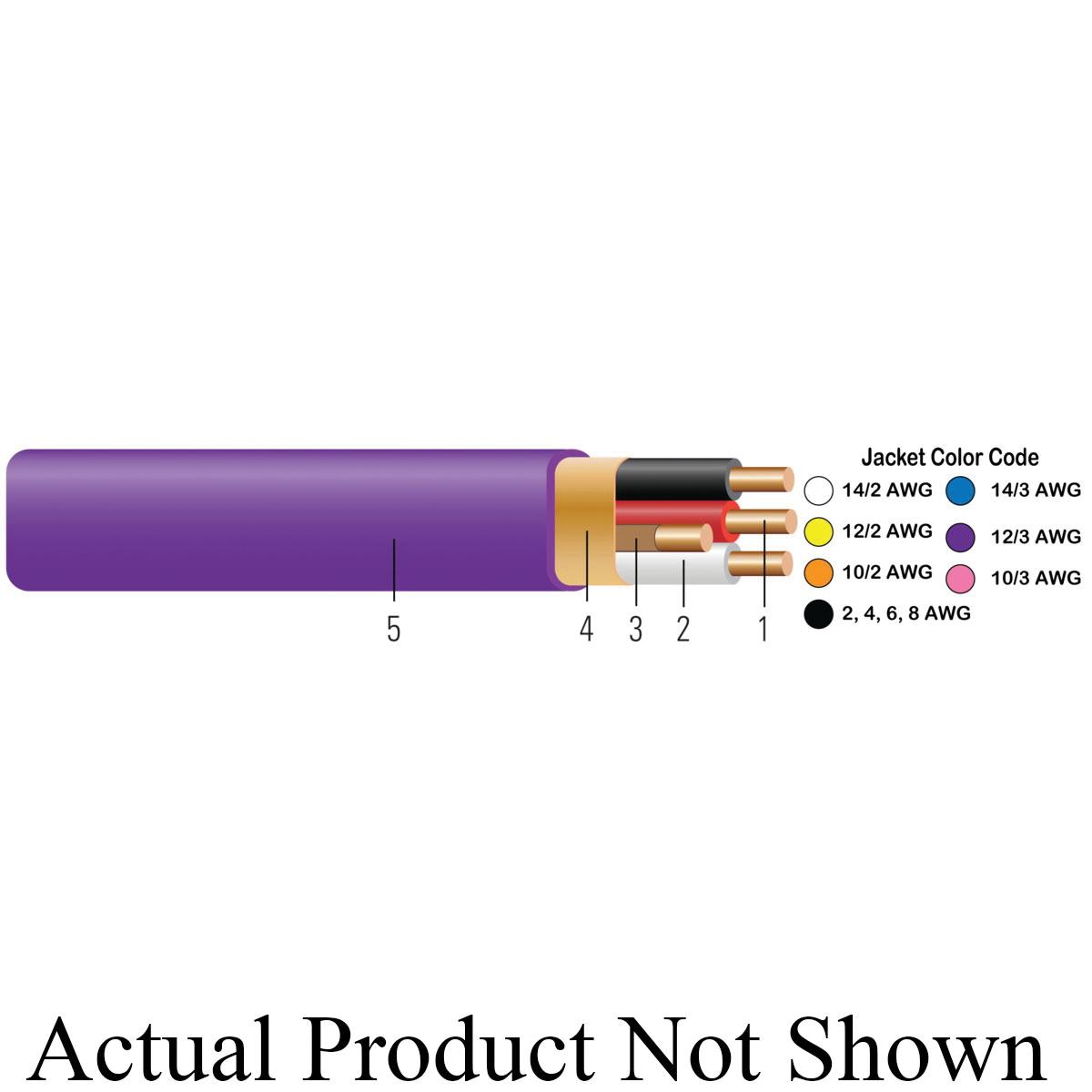

Romex® Non-Metallic Sheathed Cable, 600 V, 2 Conductors, 8 AWG Conductor, 125 ft Length, Copper Conductor, Black/White Insulation, 30 mil Insulation Thickness, 7 Strands, Stranded, PVC Insulation, PVC Jacket, 30 mil Jacket Thickness, Black Jacket

  • Conductor: Bare copper per ASTM B3. Sizes #14 AWG - #10 AWG are solid. Sizes #8 AWG - #2 AWG are Class B compressed stranded per ASTM B8
  • Insulation: All phases and neutral(s) are insulated with Polyvinyl Chloride (PVC) with Nylon Sheath 2/C: Black, White 3/C: Black, Red, White 4/C: Black, Red, Blue, White
  • Ground: Solid soft drawn bare copper with kraft paper wrap
  • Binder: Kraft paper
  • Jacket: Polyvinyl Chloride (PVC) jacket utilizing SIMpull Technology
