Resideo FocusPRO YTH5320R1000 Wireless Non-Programmable Thermostat Kit, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Screw Terminal, 18-30 VAC (Equipment Interface Module), Battery (Thermostat), Hardwired (Equipment Interface Module), Auto, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings

Accuracy	:	± 1 °F
Amperage Rating	:	1.0 A (Heat); 1.0 A (Cool); 0.6 A (Fan)
Battery Type	:	AA Alkaline
Changeover	:	Auto, Manual
Color	:	White
Connection Type	:	Screw Terminal
Cool Current	:	1.0 A (Running)
Dimensions	:	3.44" H x 4.5" W x 1.5" D
Display Type	:	LCD
Fan Current	:	0.6 A (Running)
Frequency Rating	:	50 Hz, 60 Hz (Equipment Interface Module)
Heat Current	:	1.0 A (Running)
Humidity Rating	:	5-90% RH (Non-Condensing)
Model	:	YTH5320R1000
Mounting Type	:	Wall Mount (Horizontal)
Number of Fans	:	1
Power Source	:	Battery (Thermostat), Hardwired (Equipment Interface Module)
Sensing Element	:	Thermistor
Stages	:	3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional)
Suitable For Use With	:	Gas, Oil, Electric, Heat Pump, Forced Warm Air, Hot Water, Steam, or Gravity Systems
Temperature Rating	:	37-102 °F (Ambient Operating)
Temperature Settings	:	40-90 °F (Heat); 50-99 °F (Cool)
Voltage Rating	:	18-30 VAC (Equipment Interface Module)

Resideo Wireless Non-Programmable Thermostat Kit, Model: FocusPRO, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), Screw Terminal, 18-30 VAC (Equipment Interface Module), Battery (Thermostat), Hardwired (Equipment Interface Module), Auto, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings, 37-102 °F (Ambient Operating), 1 Fan(s), Wall Mount (Horizontal), ± 1 °F Accuracy, AA Alkaline Battery, Thermistor, 3.44" H x 4.5" W x 1.5" D Dimensions, White, 5-90% RH (Non-Condensing), 1.0 A (Heat); 1.0 A (Cool); 0.6 A (Fan), 50 Hz, 60 Hz (Equipment Interface Module)

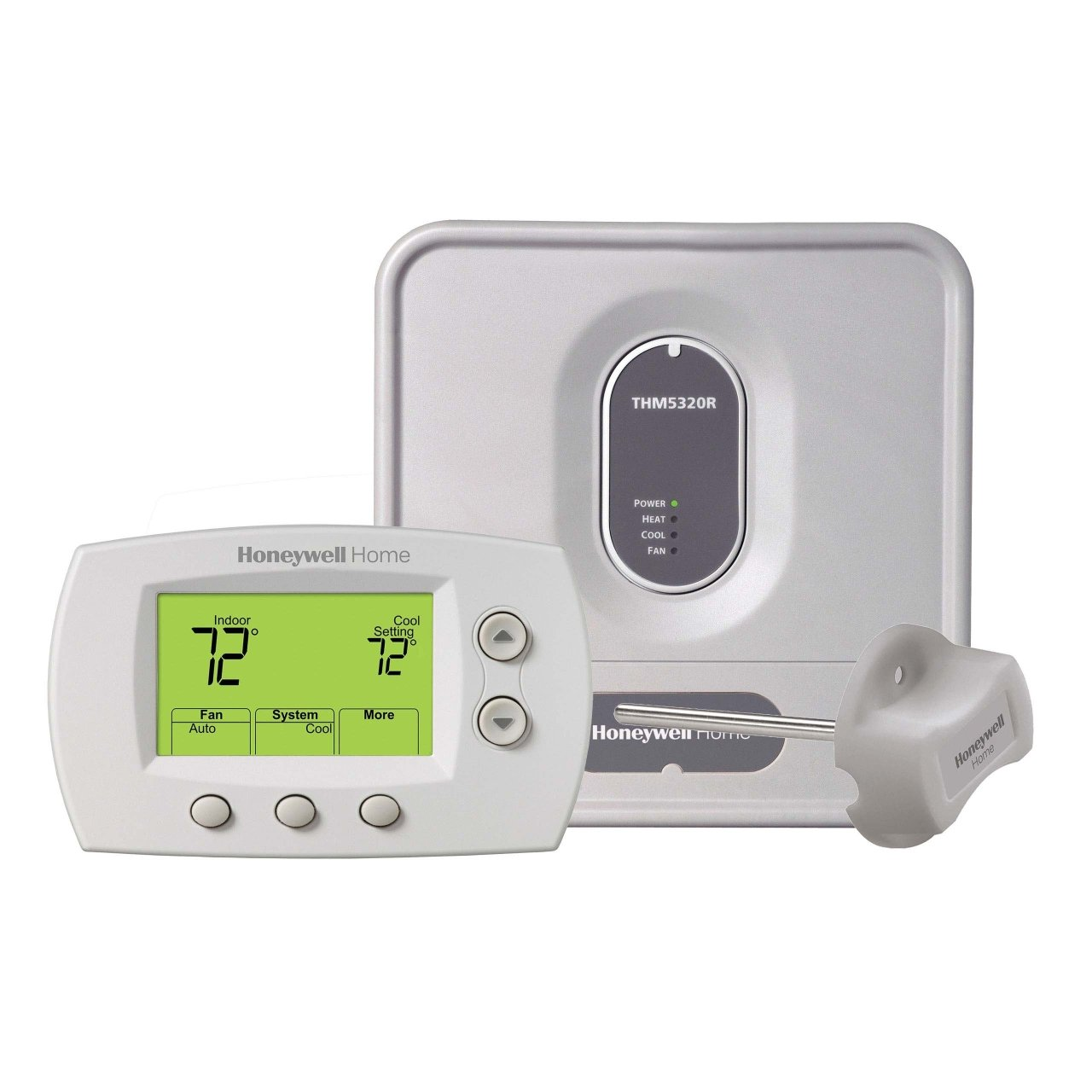

Kit includes Wireless FocusPRO thermostat, Equipment Interface Module (EIM), and Return Air Sensor.Provides wireless installation to easily relocate a thermostat or upgrade equipment without running new wires.Compatible with up to 3H/2C heat pump or 2H/2C conventional systems.Controls dual fuel systems when used with an optional Wireless Outdoor Sensor.RedLINK™ enabled for reliable wireless communication and integration with other RedLINK accessories.Return Air Sensor provides backup temperature control (62°F heat/82°F cool) if thermostat batteries die.Features a large, clear backlit display and easy-access battery compartment.Covered by a 5-year manufacturer warranty.
