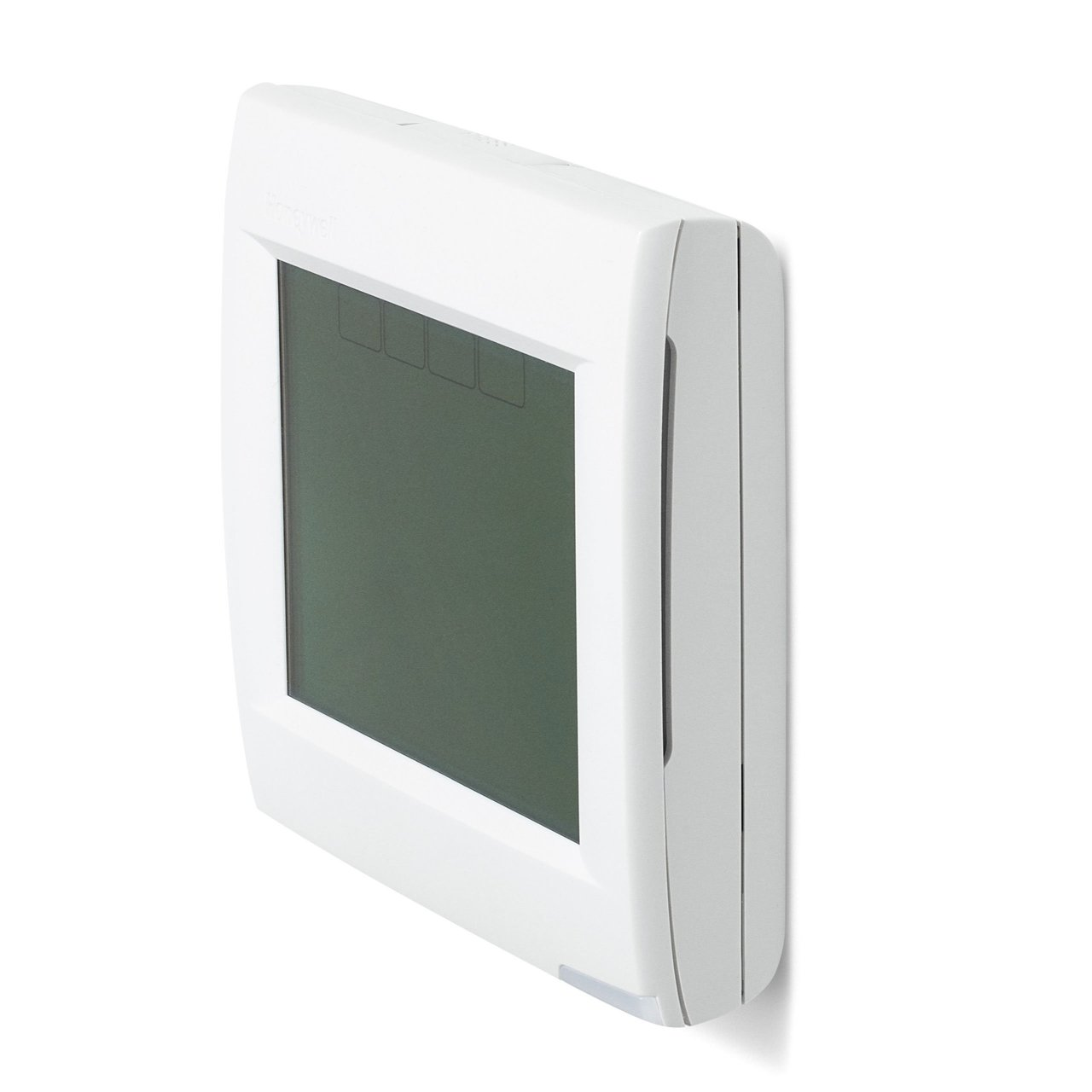

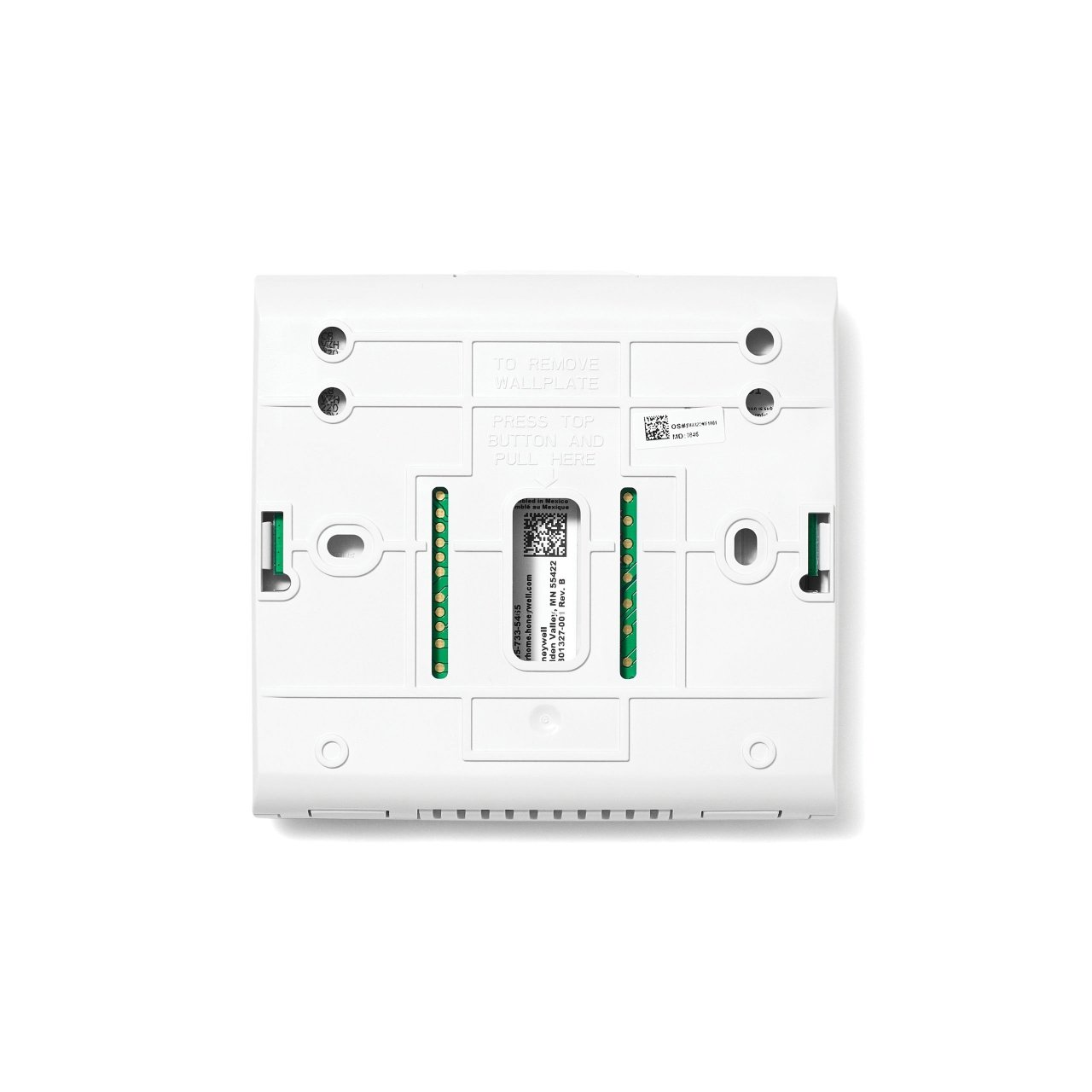

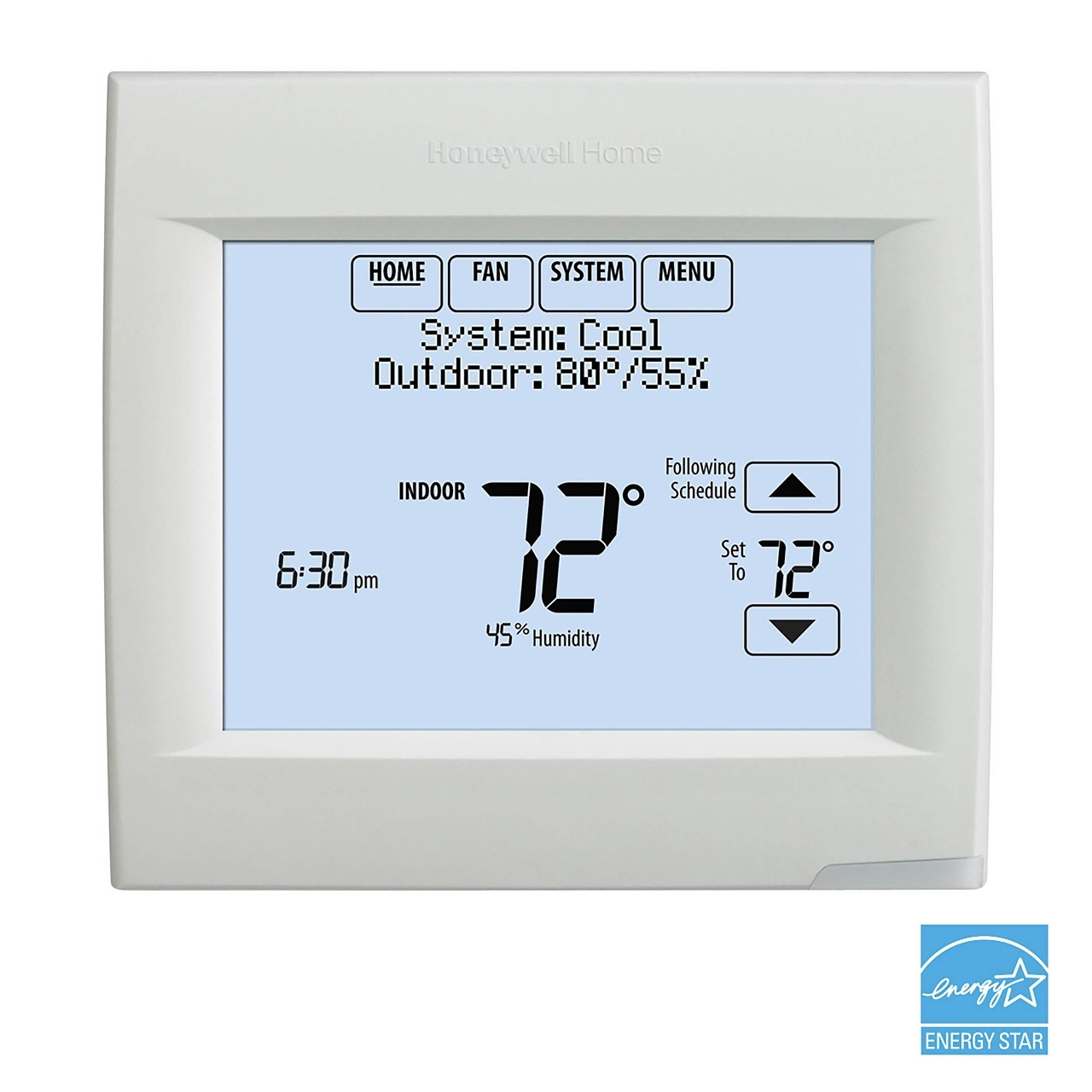

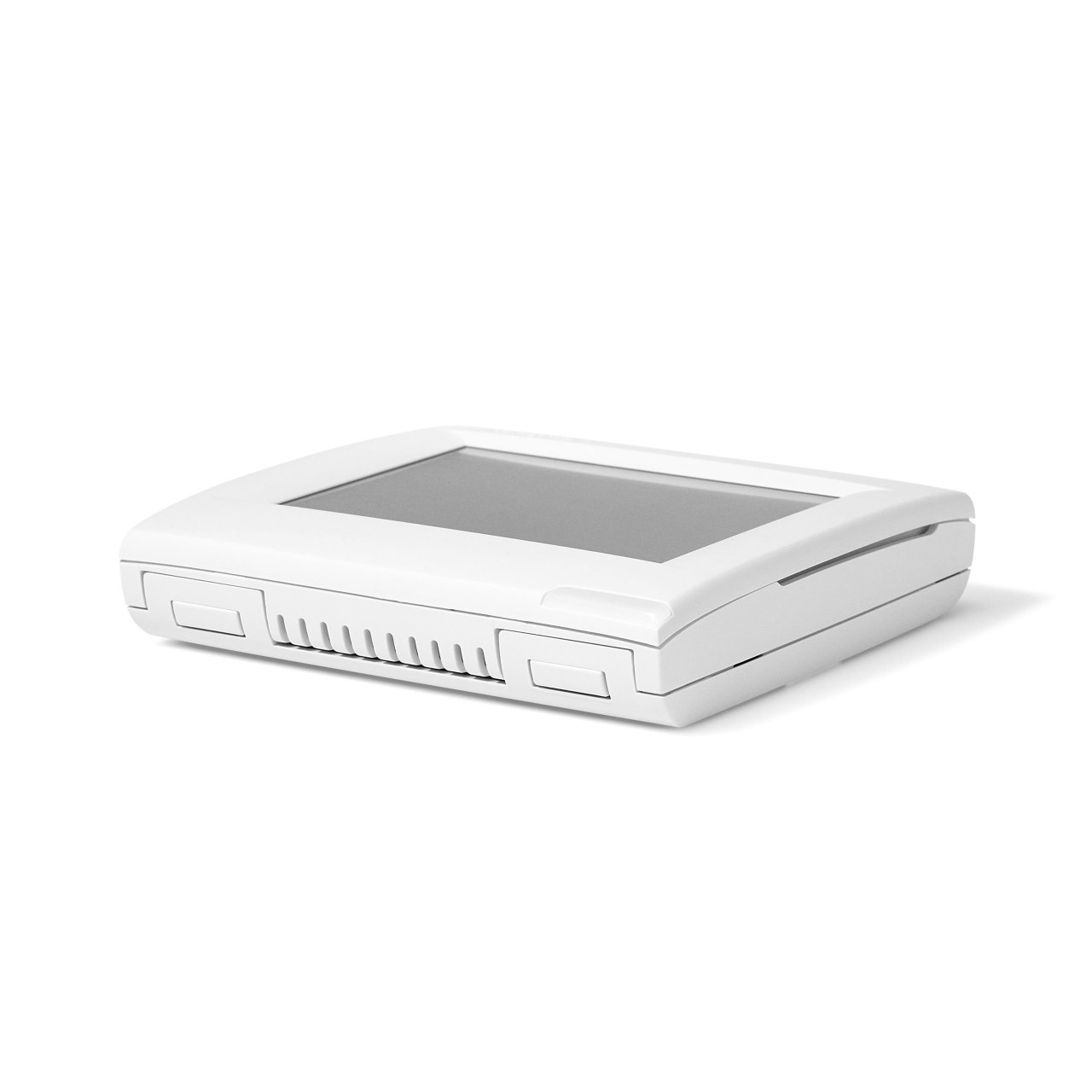

Resideo VisionPRO 8000 TH8321WF1001/U WiFi Thermostat, 18-30 VAC, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), 7 Day Or Non-Programmable, Touchscreen, Thermistor Sensing Element, Wall Mount (Horizontal/Vertical), 40-90 °F (Heating); 50-99 °F (Cooling)

Accuracy	:	± 1.5°F (Temperature, @ 70°F), ± 5% RH (Humidity, 30-50% RH, @ 75°F)
Amperage Rating	:	1.00 A (W O/B); 0.50 A (U1, U1); 0.50 A (Fan G); 0.60 A (W2 Aux/E); 1.00 A (Cooling Y); 0.60 A (Y2 - Cooling)
Color	:	White
Dimensions	:	4-5/8" H x 4-15/16" W x 1-1/8" D
Display Type	:	Touchscreen
Frequency Rating	:	50 Hz, 60 Hz (Power Supply)
Humidity Rating	:	5-90% (Non-Condensing)
Model	:	TH8321WF1001/U
Mounting Type	:	Wall Mount (Horizontal/Vertical)
Power Rating	:	1.40 VA (Backlight Off), 2.35 VA (Backlight On)
Programmability	:	7 Day or Non-Programmable
Sensing Element	:	Thermistor
Series	:	VisionPRO 8000
Stages	:	3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional)
Temperature Rating	:	32-120 °F
Temperature Settings	:	40-90 °F (Heating); 50-99 °F (Cooling)
Voltage Rating	:	18-30 VAC

Resideo WiFi Thermostat, Model: VisionPRO 8000, 18-30 VAC, 3 H / 2 C (Heat Pump), 2 H / 2 C (Conventional), 7 Day Or Non-Programmable, Touchscreen, Thermistor Sensing Element, Wall Mount (Horizontal/Vertical), 40-90 °F (Heating); 50-99 °F (Cooling), 32-120 °F, 5-90% (Non-Condensing) Humidity Rating, ± 1.5°F (Temperature, @ 70°F), ± 5% RH (Humidity, 30-50% RH, @ 75°F), White, 4-5/8" H x 4-15/16" W x 1-1/8" D Dimensions, 1.40 VA (Backlight Off), 2.35 VA (Backlight On), 1.00 A (W O/B); 0.50 A (U1, U1); 0.50 A (Fan G); 0.60 A (W2 Aux/E); 1.00 A (Cooling Y); 0.60 A (Y2 - Cooling), 50 Hz, 60 Hz (Power Supply)

Control comfort settings remotely via computer, tablet, or smartphone using the Total Connect Comfort app.Features a large, easy-to-read touchscreen display with intuitive programming for easier setup.Universal application works with systems up to 3H/2C heat pump and 2H/2C conventional, including dual fuel.Offers flexible 7-day programmability or manual/non-programmable operation.Provides equipment check and change reminders for filters, humidifier pads, and UV bulbs.Allows control of whole-home humidification, dehumidification, or ventilation.ENERGY STAR® Certified.Covered by a 5-Year Warranty.
