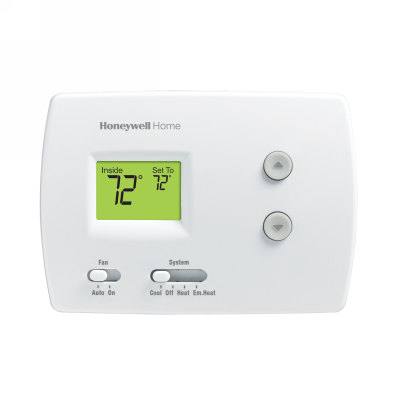

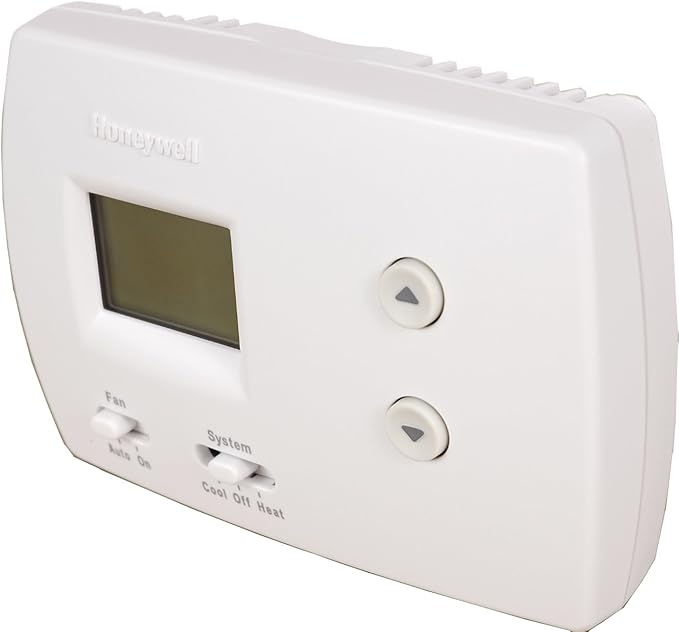

Resideo PRO 3000 TH3210D1004 Non-Programmable Thermostat, 2 H / 1 C (Heat Pump), Screw Terminal, 20-30 VAC, 750 Mvdc, Dual Powered, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings

Accuracy	:	± 1 °F
Amperage Rating	:	0.02-1.0 A (Running, Heat/Cool)
Battery Type	:	AA Alkaline
Changeover	:	Manual
Color	:	White
Connection Type	:	Screw Terminal
Contact Rating	:	0.02-1.0 A (20-30 VAC / 750 mV DC)
Cool Current	:	0.02-1.0 A (Running)
Cycles per Hour	:	1-12 CPH (Heating), 1-6 CPH (Cooling)
Differential Temperature	:	± 1 °F
Dimensions	:	3-13/16" H x 5-3/8" W x 1-1/4" D
Display Type	:	LCD
Frequency Rating	:	50 Hz, 60 Hz
Heat Current	:	0.02-1.0 A (Running)
Humidity Rating	:	5-90% RH (Non-Condensing)
Model	:	TH3210D1004
Mounting Type	:	Wall Mount (Horizontal)
Number of Fans	:	1
Power Source	:	Dual Powered
Sensing Element	:	Thermistor
Stages	:	2 H / 1 C (Heat Pump)
Suitable For Use With	:	Up to 2 Heat/1 Cool Heat Pump Systems (with Auxiliary Heat)
Switch Position	:	Heat/Off/Cool/EM.HEAT (System), Auto/On (Fan)
Switch Type	:	Relay
Temperature Rating	:	32-120 °F
Temperature Settings	:	40-90 °F (Heat); 50-99 °F (Cool)
Voltage Rating	:	20-30 VAC, 750 mVDC

Resideo Non-Programmable Thermostat, Model: PRO 3000, 2 H / 1 C (Heat Pump), Screw Terminal, 20-30 VAC, 750 Mvdc, Dual Powered, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings, 1 Fan(s), Wall Mount (Horizontal), ± 1 °F Differential Temperature, AA Alkaline Battery, Relay, Heat/Off/Cool/Em.heat (System), Auto/On (Fan), Thermistor, 3-13/16" H x 5-3/8" W x 1-1/4" D Dimensions, White, 5-90% RH (Non-Condensing), 0.02-1.0 A (Running, Heat/Cool), 50 Hz, 60 Hz, 1-12 CPH (Heating), 1-6 CPH (Cooling)

Features an easy-to-read backlit digital display showing both current and set temperatures.Simple operation with slide switches for selecting heat, cool, emergency heat, off modes, and fan control (Auto/On).Maintains consistent comfort with precise temperature control accuracy of ±1°F.Offers flexible installation with dual power options (battery or hardwired).Includes UWP mounting system and standard installation adapter (J-box adapter).Built-in compressor protection helps prevent equipment damage.Compatible With: Up to 2 Heat/1 Cool Heat Pump systems with auxiliary heat.Comes with a 5-year manufacturer warranty.
