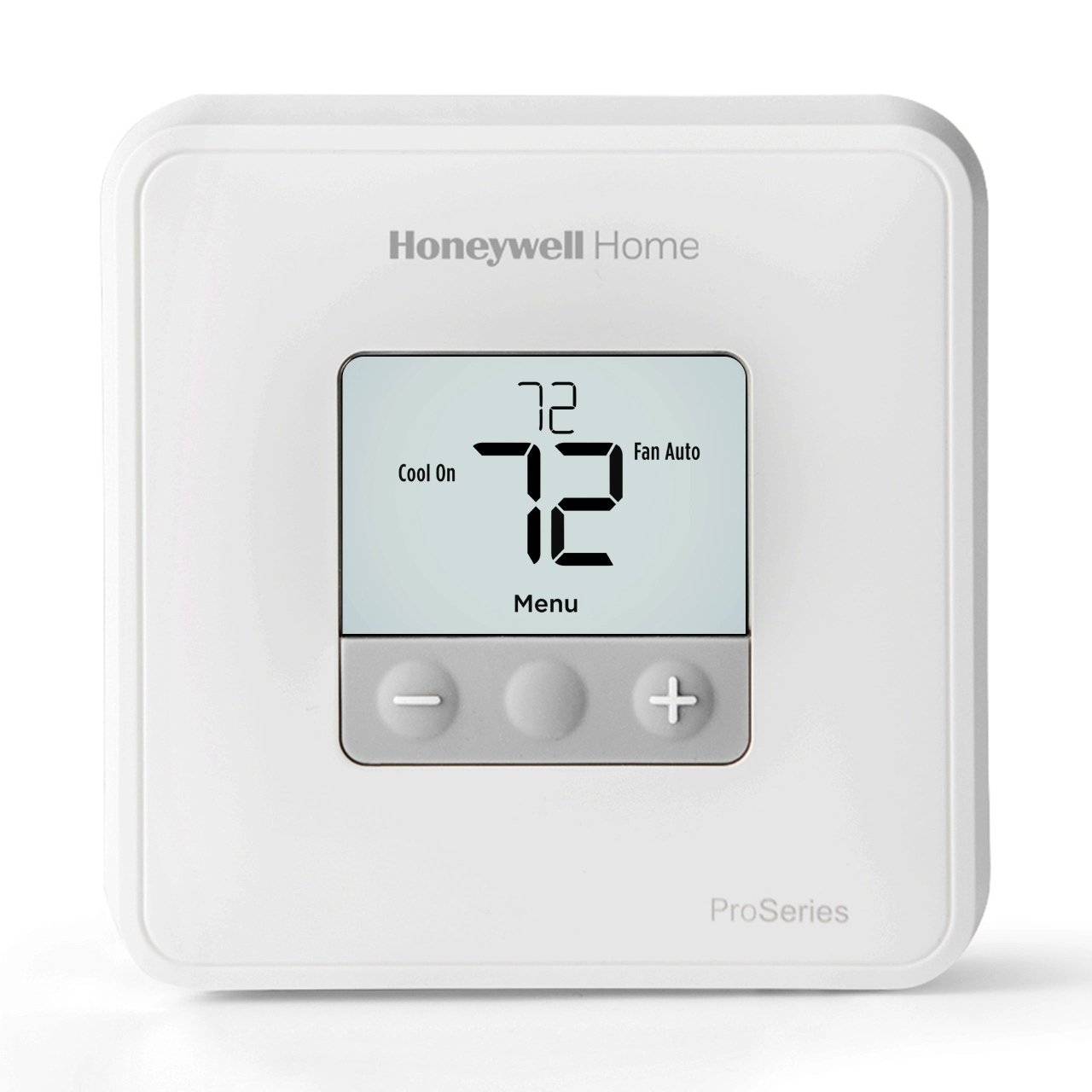

Resideo T1 Pro TH1110D2009-1035 Non-Programmable Thermostat, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings
Resideo T1 Pro TH1110D2009-1035 Non-Programmable Thermostat, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 0.02-1.0 A (Heating W/Cooling Y), 0.02-0.5 A (Fan G/Changeover O/B) |
| Battery Type | : | AA Alkaline |
| Changeover | : | Manual |
| Color | : | White |
| Connection Type | : | Terminals (R, RC, C, W, O/B, Y, G) via UWP Mounting System |
| Contact Rating | : | 1.0 A (Heat/Cool, 20-30 VAC), 0.5 A (Fan/Changeover, 20-30 VAC), 0.1 A (Heat, 750 mV DC) |
| Cool Current | : | 0.02-1.0 A (20-30 VAC) |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 4.0625" H x 4.0625" W x 1.156" D |
| Display Type | : | LCD (Backlit) |
| Fan Current | : | 0.02-0.5 A (20-30 VAC) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A (20-30 VAC), 0.1 A (750 mV DC) |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |

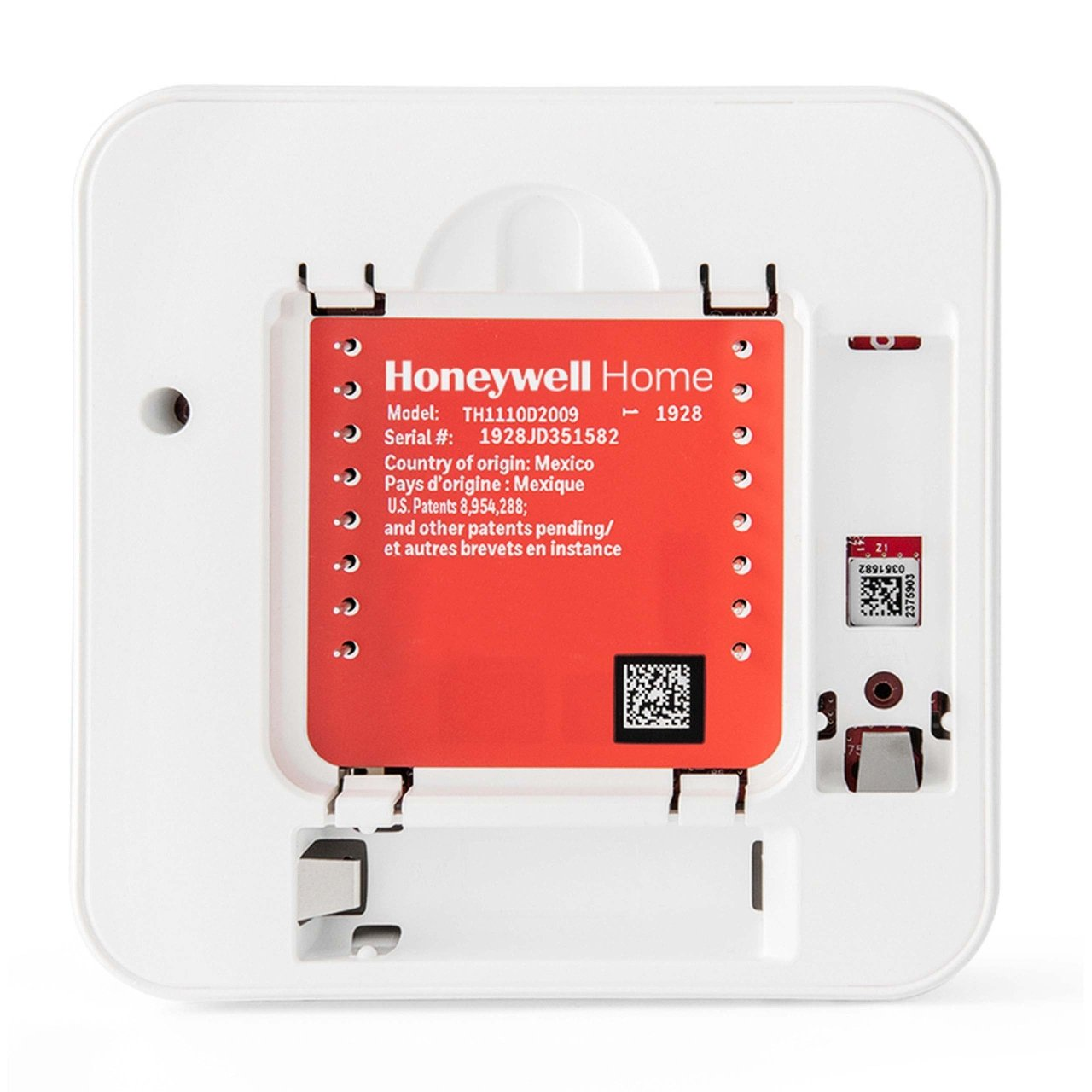

| Model | : | TH1110D2009-1035 |
| Mounting Type | : | Wall Mount (UWP Mounting System) |
| Power Rating | : | 1.0 VA (Backlight On) |
| Power Source | : | Dual Powered |
| Sensing Element | : | Thermistor |
| Stages | : | 1 H / 1 C |
| Suitable For Use With | : | 24 VAC Systems; Gas, Oil, Electric Warm Air; Hot Water Coil; Gas, Oil, Electric Hydronic; Steam / Gravity Systems; Single Stage Heat Pumps (Without Auxiliary Heat) |
| Switch Position | : | Heat/Off/Cool (System), Auto/On (Fan) |
| Switch Type | : | Relay |
| Temperature Rating | : | 32-102 °F |
| Temperature Settings | : | 32-90 °F (Heating), 50-99 °F (Cooling) |
| Voltage Rating | : | 20-30 VAC, 750 mVDC (W Heating) |
Resideo Non-Programmable Thermostat, Model: T1 Pro, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings, Wall Mount (UWP Mounting System), ± 1 °F Differential Temperature, AA Alkaline Battery, Relay, Heat/Off/Cool (System), Auto/On (Fan), Thermistor, 4.0625" H x 4.0625" W x 1.156" D Dimensions, White, 5-90% RH (Non-Condensing), 1.0 VA (Backlight On), 0.02-1.0 A (Heating W/Cooling Y), 0.02-0.5 A (Fan G/Changeover O/B), 1.0 A (Heat/Cool, 20-30 VAC), 0.5 A (Fan/Changeover, 20-30 VAC), 0.1 A (Heat, 750 mV DC) Contact Rating, 50 Hz, 60 Hz
